1.Specs:

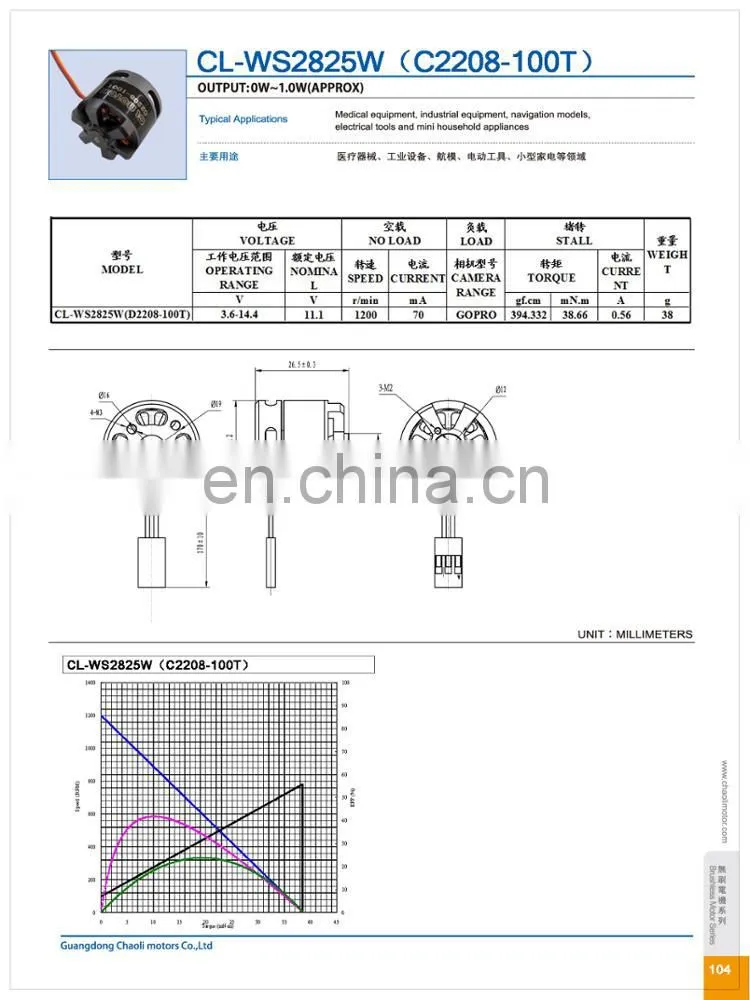

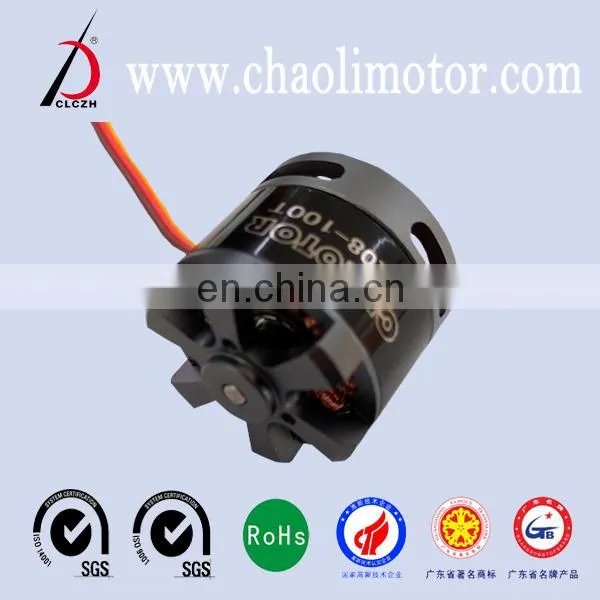

28x25mm low speed 100T CL-WS2825W GOPRO camera cradle head brushless dc motor
Special Features/ Structure:
Motor type: PMDC brushless motor
Motor housing (D*F*L): Φ28*25mm
Housing material: AL6063/AL6061/SUS304+H62(Coating)
Shaft (diameter): 2.0mm carbon steel/SUS304 (nickel coating)
Way of commutation: Electronic control
Structure: Stator rotating type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight:38g(approx)
Options:
*Length and shape for the extended shaft
*Gear, eccentric wheel or reducer Increased
*Magnet type
*Wire diameter and turn number
2.Our products catagory
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
