Automatic Portable CT PT Transformer Characteristics Test Equipment

Wuhan Sansion Power Equipment Manufacturing Co., Ltd.
Automatic Portable CT PT Transformer Characteristics Test Equipment thumbnail-1
Automatic Portable CT PT Transformer Characteristics Test Equipment thumbnail-2
Automatic Portable CT PT Transformer Characteristics Test Equipment thumbnail-3
Automatic Portable CT PT Transformer Characteristics Test Equipment photo-1
Automatic Portable CT PT Transformer Characteristics Test Equipment photo-2

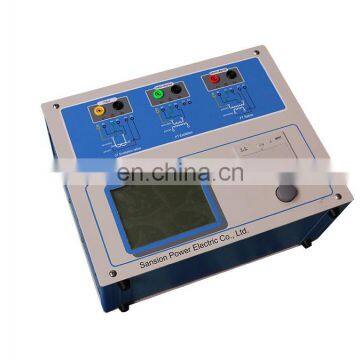

Automatic Portable CT PT Transformer Characteristics Test Equipment photo-3
US$ 1,000 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sansion
Place of Origin:
Hubei, China
Model Number:
SXFA-II
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai. Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sansion
Place of Origin Hubei, China
Model Number SXFA-II
Weight About 35kg, 20Kg
Operating Temperature advisory
Supply Voltage AC220V±10% , 50Hz
Dimensions 2
Display Type Analog and Digital
Accuracy Class A
Measuring Range 1

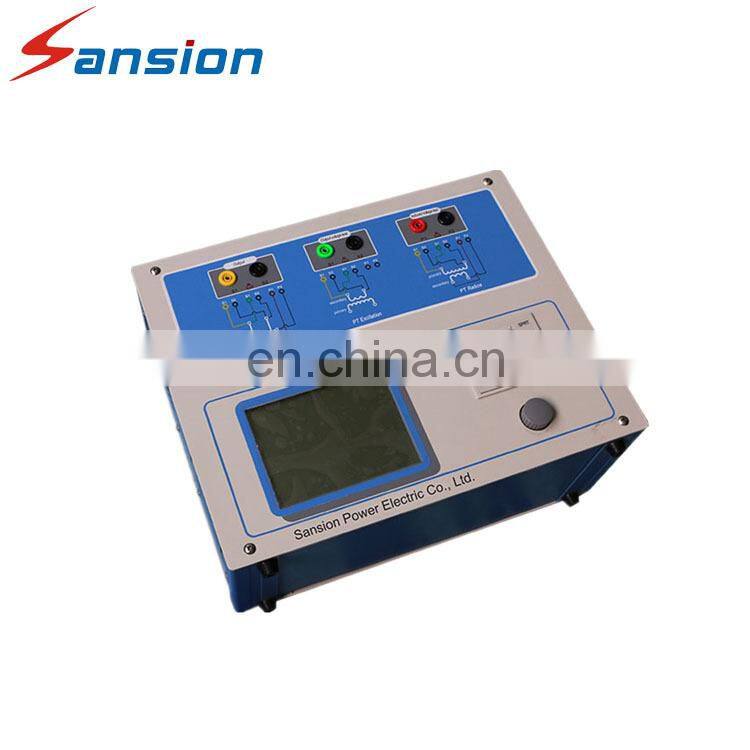

Automatic Portable CT PT Transformer Characteristics Test Equipment

 Automatic Portable CT PT Transformer Characteristics Test Equipment

 General Information:

SXFA-IV is portable analyzer designed for analyzing current transformers and voltage transformers of protection or measurement use, which is suitable for laboratory and on-site test.



Features:

  • 5.7’ LCD screen, display clearly even under sunshine.
  • Rotating photoelectric mouse, easy to operate.
  • Build in printer to print test result automatically after testing completed.
  • Full functions, satisfy all kinds of CT(protection CT, measuring CT, TP) test requirements, such as excitation characteristic test, turn ratio, polarity, secondary winding resistance, secondary burden, ratio error, angular difference and etc. Also it can be used to test excitation characteristic, turn ratio, polarity, secondary winding resistance, ratio error, angular difference and etc all kinds of PT.
  • Auto test CT/PT parameters on knee point voltage/current, 5% and 10% deviation curve measurement, Accuracy limit factor (ALF), safety factor (FS), second time constants (Ts), residual magnetism factor(Kr), saturated and unsaturated inductance.
  • Accurately measure ratio error and angular error. Max. Ratio error ±0.05% is permitted. Max. Angular error ±2min if permitted. It can measure 0.2S class CT and turns ratio range is 1-40000.
  • Complied with IEC 61869-1 to 3 standards of all kinds of CT/PT.
  • Using variable frequency method can make CT test when keen point is up to 60kV.
  • Easy to use. To test CT DC resistance, excitation and polarity only by one button. All CT tests adopt same one connect method except load test.
  • To export test data by U disk.
  • 1000 groups’ data storage, data can be saved even power failure.
  • Friendly interface, English graphical interface.
  • Small size and portable, weight less than 10KG.

Main Test Functions:

Output

0~180Vrms,12Arms,36A(peak value)

Voltage measurement precision

±0.1%

CT Turns Ratio

Range

1~40000

1~30000

Precision

±0.05%

±0.2%

PT Turns Ratio

Range

1~40000

1~30000

Precision

±0.05%

±0.2%

Phase measurement

Precision

±2min

±5min

Resolution

0.5min

0.5min

Secondary Winding Resistance

Range

0~300Ω

0~300Ω

Precision

0.2%±2mΩ

2%±2mΩ

AC Load Measurement

Range

0~300VA

Precision

2%±0.2VA

Power Supply

AC220V±10%,50Hz

Working Conditions

Temperature: -10οC~50οC, Humidity: ≤90%

Size & Weight

365 mm×290 mm×153mm    Weight<10kg




Automatic Portable CT PT Transformer Characteristics Test Equipment

Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.

Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.

Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.

With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.

Automatic Portable CT PT Transformer Characteristics Test EquipmentAutomatic Portable CT PT Transformer Characteristics Test EquipmentAutomatic Portable CT PT Transformer Characteristics Test Equipment

OUR Advantages:

1. Quality

As an ISO and SGS certified company.

2. Sales Market

We are exporting to 52 countries worldwide.

3. Technical capacity

We have 26 engineers. 6 engineers are doctor’s degree. Who have 26years working experience . 8 engineers are master’s degree.

4. After-sales Service

Warranty period is one year. Engineers available to service the equipment.
