General Information:
SXJF-XT series PD free test system is the new generation which conforms to IEC (270) standard strictly, mainly used to inspect and test the discharging test on the HV equipments including electric motor, CT/PT, cable, capacitor, transformer, MOA, switchgear and etc.
1. High accuracy, small measurement error
2. Resolution 1 PC
3. Easy to use and maintenance
The system includes:

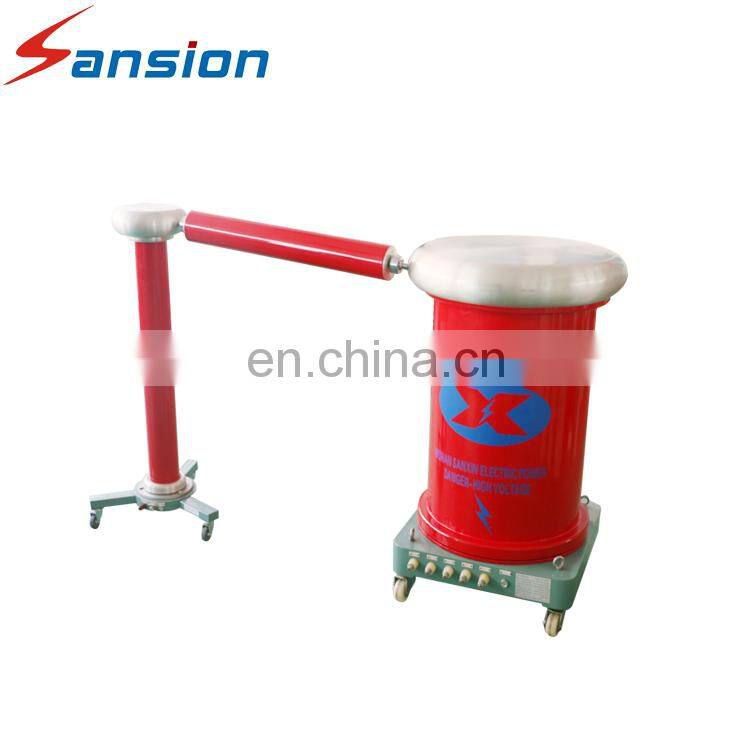

l Partial discharge free testing transformer
l Control Unit
l Isolation Transformer
l Isolated Filter

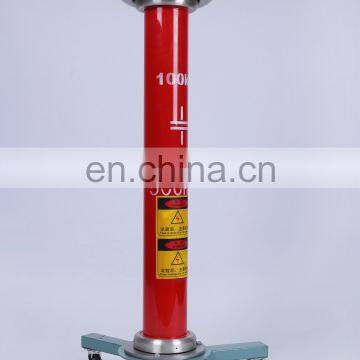

l Coupling Capacitor
l Protective Resistor

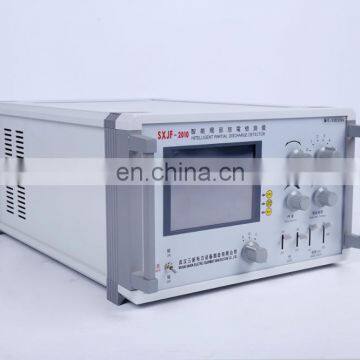

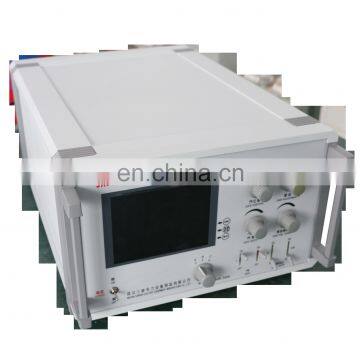

l Partial Discharge Tester SXJF-2009/2010
Specification:
Rated capacity: |
0-1000KVA |
Rated input voltage: |
0.22/0.38/3/6/10KV |
Rated input current: |
0-1.25A |
Rated output voltage: |
0-800kV |
Rated output current: |
0-375A |
Rated voltage of measuring terminal: |
100V |
Connection: |
II0 |
Cooling: |
ONAN |
|
Working Duty:
|
100%UN,IN , 60min 70%UN,IN continuous working. |
Single Phase | |
Frequency: |
50Hz |
- Advanced PD-free epoxy insulating tube, small partial discharge capacity.
- Low impedance voltage, better than national standard.
- Automatic control technology, good anti-interference performance.
- Rapid electronic protection, high reliability.

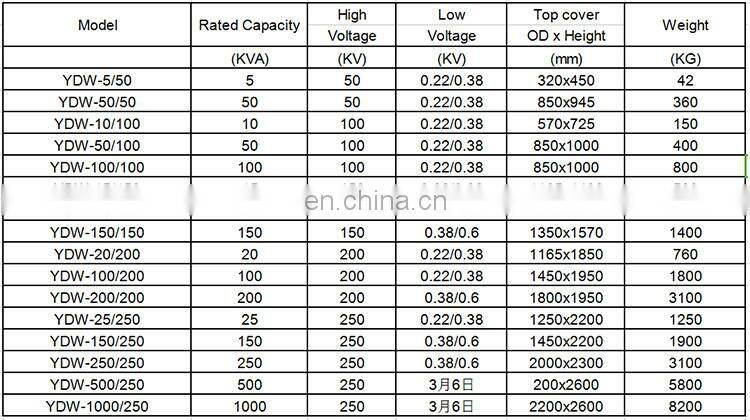

Specifications
- Rated Capacity(KVA) : 5~5500
- High Voltage(KV): 50~250
- Low Voltage(KV): 0.22/0.38~0.38/0.6~0.6/3~3/6/10
- Top cover (OD xHeight) (mm): accordance with specific conditions
Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.
Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.
Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.
With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.
FAQ:
1.Q:Are you Manufacturer of trading company?
A: We are manufacturer of more than 20 years in power testing product.
2..Q:How can I pay?
A:Dear customer, we accept many payment term, such as T/T, Western Union…
3.Q:What is your terms of delivery?
A:We accept EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convenient and cost effective for you.
4.Q:Could you please tell me the Warranty Period of your product? .
A:Warranty period is one year. Engineers available to service the equipment.
5.Q:What should I do if I do not know how to use? A:Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
