General Information:

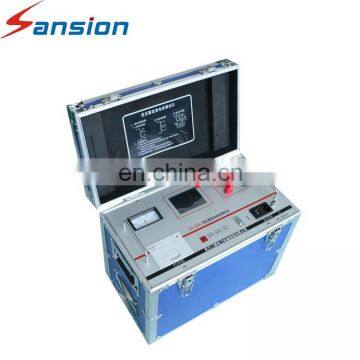

SXZR-20A is single phase DC winding resistance tester which designed specifically to measure DC resistance values of transformer windings and any DC resistance of an inductive device.
Features:
- Controlled by high speed SCM, easy to use.
- Selectable current positions, large measurement range, suitable for the DC resistance values measuring of large-medium transformers.
- Full protection functions to ensure safety and availability.
- Auto discharging and discharging indicator.
- Intelligent power management technology, small consumption, less heating.
- True color LCD screen.
- Built-in thermal printer.
- 1000 groups’ data storage no lost even power failure.
- RS232 and USB interface, easy communicate with PC and U disk.
Specifications:
- Output current: <5mA, 40mA, 200mA, 1A, 5A, 10A, 20A
- Max.resolution: 0.1μΩ
- Measuring range: 100μΩ~1Ω (20A)
500μΩ~2Ω (10A)
1mΩ ~ 4Ω (5A)
2mΩ ~ 8Ω (2.5A)
5mΩ~20Ω (1A)
10Ω~20KΩ (<5mA)
- Accuracy: ±0.2%(±2digits)
- Working temperature: 0~40℃
- Working humidity: <90% RH, no condensation.
- Oversize: L400mm X W200mmX H280mm
- Weight: 15KG (Including test leads).
Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.
Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.
Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.
With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.
FAQ:
1.Q:Are you Manufacturer of trading company?
A: We are manufacturer of more than 20 years in power testing product.
2..Q:How can I pay?
A:Dear customer, we accept many payment term, such as T/T, Western Union…
3.Q:What is your terms of delivery?
A:We accept EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convenient and cost effective for you.
4.Q:Could you please tell me the Warranty Period of your product? .
A:Warranty period is one year. Engineers available to service the equipment.
5.Q:What should I do if I do not know how to use? A:Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
