XJC-25 Combined Charpy and Izod Pendulum Impact Tester
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | XJC-25 | Power | Electronic | |
| Usage | Impact Testing Machine |
Product Description
XJC-25 Combined Charpy and Izod Pendulum Impact Tester
Application:
Analog Rubber Pipe Testing Machine is mainly used in testing the nonmetal materials' impact toughness, such as horniness plastic, strong nylon, glass reinforced plastics, china, clay rock,anti-electric and metal materials. They can do Charpy, Izod, tensile impact, Charpy & Izod, Charpy&Izod& tensile impact tester by different anvils and pendulums as the standards of ASTM D256-90 Meth. A, ASTM D 256-90 Meth.B, ASTM D 256-97, ASTM D 6110-97, ASTM D 5942-96 ASTM D 1822, ASTM D 4812, DIN 53753, DIN 53453, DIN 51222, DIN 53448, ISO 180,ISO 179, ISO 8256, BS 2782 Part.3 Meth. 350, BS 2782 Part. 3 Meth. 359. BS 7413, AFNOR T51-111, UNI 6323, UNI 6062, GB/T1043,GB1843.

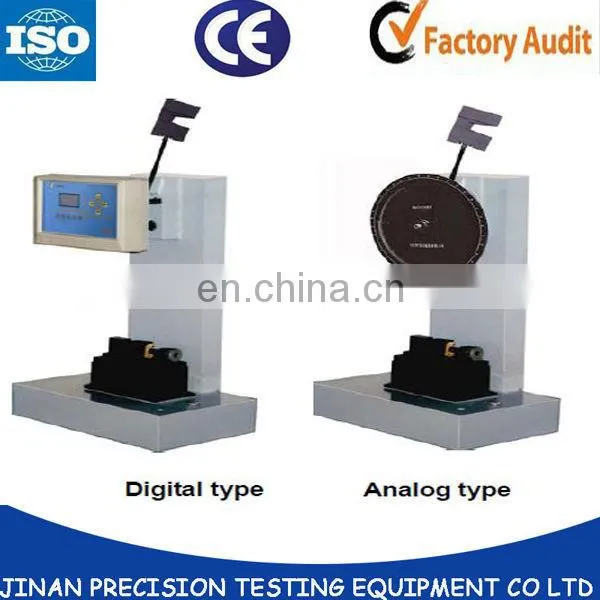

This kind of impact test machine has analog type, digital type and computer screen type, and the computer and software can do data processing. It is the ideal inspecting equipment for lab, industry and education.
Main technical parameter:
1.Distance between clamps of Charpy: 40mm 60mm 70mm 95mm
2.(Izod) Impact energy: 1J 2.75J 5.5J 11J 22J impact speed: 3.5m/s
3.(Charpy)Impact energy: 1J 2J 4J 5J 7.5J 15J 25J
4.impact speed: 2.9m/s and 3.8m/s
Anvils:
For different test, the anvils are different, below are anvils for Charpy, Izod and Tensile impact
tester;
