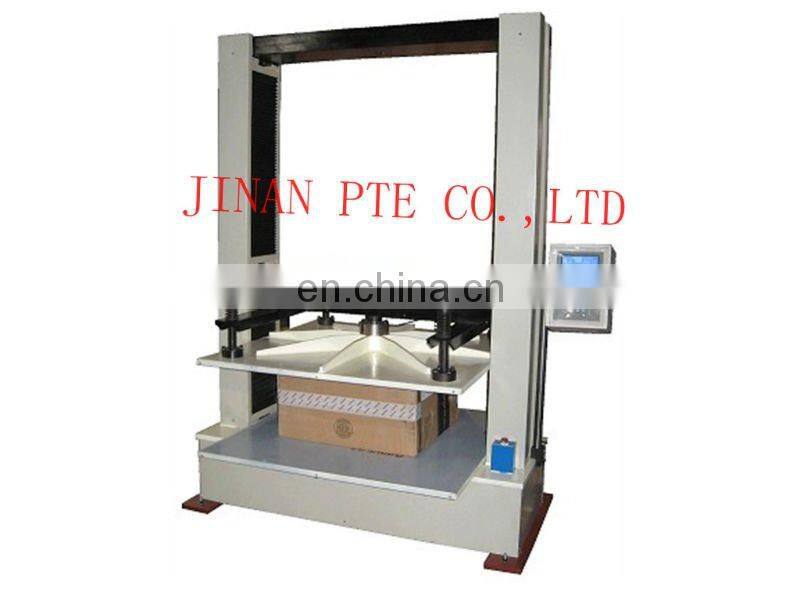

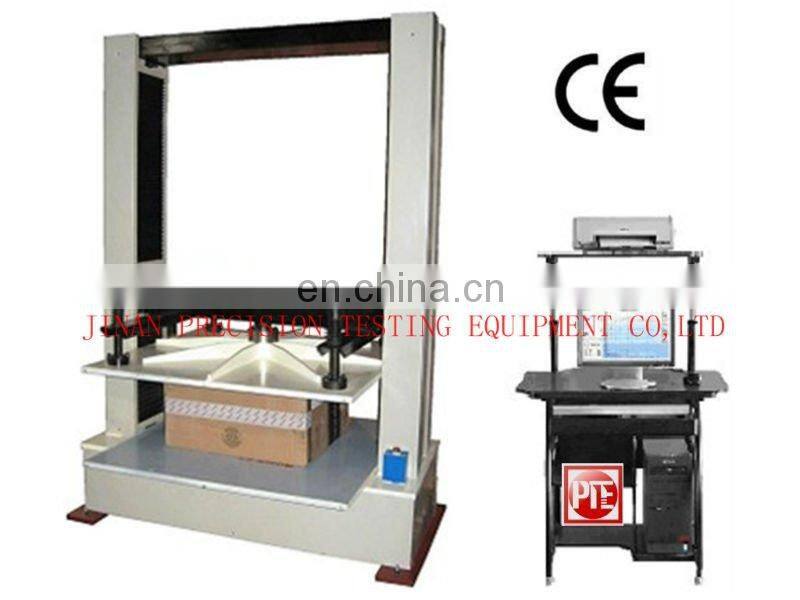

BCT-20 Computer Control Electromechanical Carton Box Compression Tester

 BCT-20 Computer Control Electromechanical

 Corrugated Box Compression Tester

Applicantions:

The Computer Control Corrugated Box Compression Tester is used for corrugated paper box to test its resistance to compression and stacking capacity. It's used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. The testing results are displayed by computer.

It adopts high precision sensor and high performance small and special electric machine.

With advanced measuring and controlling technique, it can realize exactly speed governing and exactly measuring.

This kind of machine is designed and manufactured according to ISO 2872, AS 130-1-800 S, ASTM D 4169, ASTM D 642, and TAPPI T 804 standards.

It is connected with software, suitable for the compression test and stack test of packing box.

It has good reliability, equipped with PC system and software for analyzing and data processing.

This machine has been widely used in the fields of carton and packaging industries.

Features:

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

Main Specifications:

Max. Load (kN):20

Load accuracy:≤±1%

Displacement resolution: 0.01mm

Speed: 0.01mm/min ~ 200mm/min

Test Space: 1200x1200x1000mm

Compression plate size: 1000x1000mm

Voltage: 220V, 1ph, 50Hz
