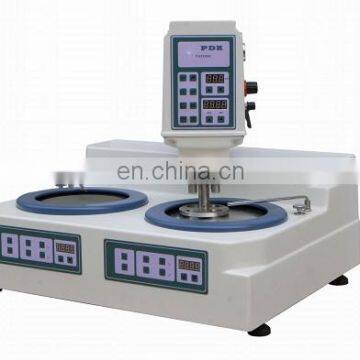

Help CenterYMPZ-2 Double Wheel Metallographic Automatic Grinding Machine
Related Products
-
YMPZ-2-300/250 Automatic Metallographic Sample Grinding and Polishing MachineUS$ 1,000 - 5,000MOQ: 1 Set -
YMPZ-1 Automatic Metallographic Sample Grinding and Polishing MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
DPF-2 Electrolytic Polishing and Etching InstrumentUS$ 1,000 - 5,000MOQ: 1 Set
-
MP-1 (Auto) Metallographic Sample Grinding and Polishing MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
YMP-2-250 Metallographic Sample Grinding and Polishing MachineUS$ 1,500 - 2,500MOQ: 1 Set
Application:
In the process of preparation of metallographic sample, pre grinding, polishing and grinding are the indispensable procedures. This machine YMPZ-2 is produced with plastic sewage collection plate and cover and is the latest product with a new and beautiful appearance. This machine is controlled by single chip microcomputer, grinding disc 100RPM-1400RPM of stepless speed regulation with digital tube display. The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The machine is plastic painted and non-toxic. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak proof design ensures the bearing almost without damage and the super mute design brings a good experience. It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device. It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head. It can increase the grinding quality and production efficiency and is the ideal metallographic sample preparation equipment.
This machine can be adapted to various materials preparation of test samples. The polishing disc diameter is larger than the domestic similar products. The platen speed of polishing disc operates independently. It is the best equipment of metallographic sample preparation.
Specifications:
Diameter of the polishing and grinding disc: 230mm
Diameter of the abrasive paper: 230mm
Rotational speed: 100~1400r/min, stepless
Or four speed 300r/min, 600r/min, 900r/min, 1400r/min
Motor: DC brushless motor,two-phase 220V 400W
Rotational speed of grinding head: 20~120r/min, stepless
Cylinder pressure: adjustable (Suggest 0.2~0.3mpa)
Motor of grinding head: DC brushless deceleration motor, two-phase 220V 400W
External dimension: 757×623×645mm (include PDZ automatic grind head)
Net weight: 78Kg
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
