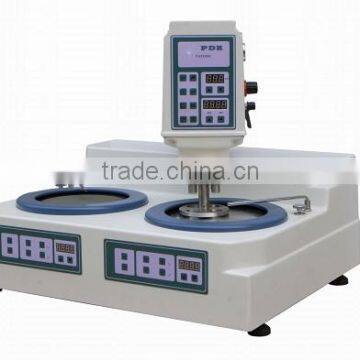

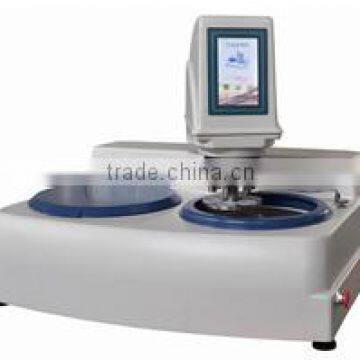

Model YMPZ-2-300/250 Automatic Metallographic Sample Grinding and Polishing Machine
Applications:
In the process of preparation of metallographic sample, pre grinding, polishing and grinding are the indispensable procedures. This machine is produced with ABS sewage collection plate and cover and is the latest product with a new and beautiful appearance. This machine is controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with touch screen display and control. The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The machine is non-toxic painted. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience. It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device. It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head. It can increase the grinding quality and production efficiency and is the ideal metallographic sample preparation equipment.
This machine can be adapted to various materials preparation of test samples. The polishing disc diameter is larger than the domestic similar products. The platen speed of polishing disc operates independently. It is the best equipment of metallographic sample preparation.
Main parameters:
Diameter of the polishing and grinding disc: 300mm or 250mm
Diameter of the abrasive paper: 300mm or 250mm
Rotational speed: 100~1000r/min, stepless
Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Motor: DC brushless motor, two-phase 220V, 1.1kw
Rotational speed of grinding head: 30~120r/min, stepless
Center cylinder pressure: 0-0.5Mpa (Suggest 0.3~0.4 Mpa)
Planetary cylinder pressure: 0-0.5Mpa (Suggest 0.2~0.3 Mpa)
Sample installation quantity: 6
Motor of grinding head: DC brushless deceleration motor, two-phase 220V, 100W
Dimension: 725×900×760mm
Weight: 115kg
--------------------------------------------------------------------------------------------------------------------------------------------------------
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min |
0-20/0.05 |
Max. tensile space |
560 |
Max. Compression space |
530 |
Max. Distance Between Two |
400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper |
320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------
Strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston |
690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
| Item | NJS-30 |
| Max torque(Nm) | 30 |
| Torque resolution (Nm) | 0.01 |
| Accurate measuring range of torsion (Nm) | 0.6-30 |
| Full-scale reading of torsion angle (º) | 9999.9 |
| Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
| Model | PLS-50 |
| Static | ±50 |
| Dynamic | 50 |
| Function generator Range of frequency(Hz) |
0.01~20HZ |
| Stroke of piston(mm) | ±75 |
| Distance between columns |
500 |
