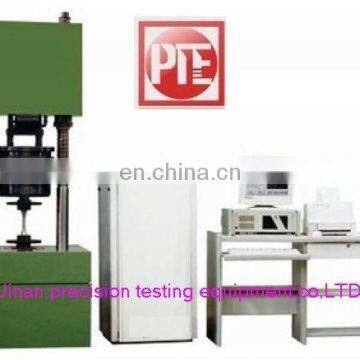

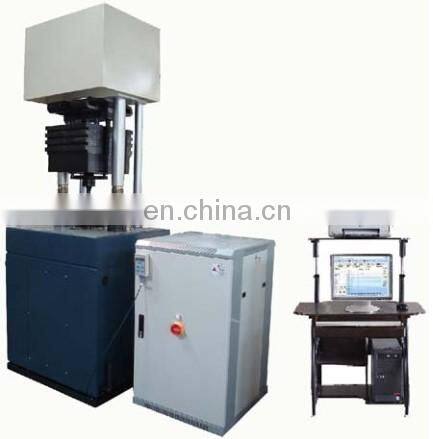

PLG-C Computer Control Resonant High Frequency Fatigue test instrument
Application :
Electromagnetic resonance High-frequency fatigue testing machine has simple structure, convenient operation, high efficiency, low energy consumption and other characteristics, therefore it widely is used in the field of military scientific research, colleges and universities and industrial production.

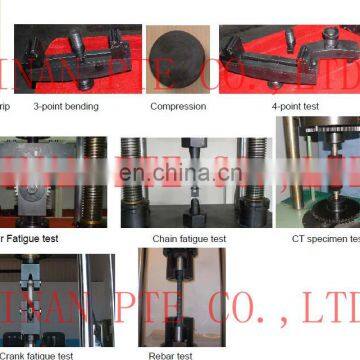

High-frequency fatigue testing machine is widely used for testing properties of anti-fatigue crack, testing KIC value, S-N curve and so on; it is used for testing fatigue lifetime of all kinds of parts (e.g. plate gear, crank, bolt, chain, connecting rod, compact tension and so on) with various fixtures. It may complete the symmetrical fatigue test, the asymmetrical fatigue test, the unidirectional pulsation fatigue test, the block spectrum fatigue test, the modulation fatigue test, the fatigue test at high and low temperature, three point bending, four point bending, torsion fatigue tests and so on. At present colleges and universities, research department and industrial and mining enterprises use the high frequency testing machine to carry on fracture toughness test and testing metallic material crack growth rate and limited value of martial. With the development of microelectronic technology and computer technology, as well as perfect test method, its use function is increasing expansion.

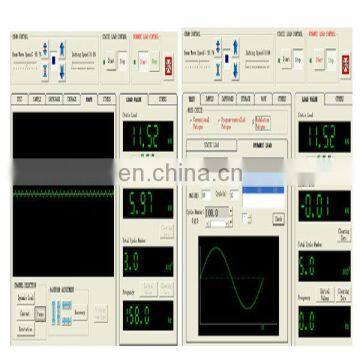

This machine undergoes optimization design and the structure is rational. The automatically controlled system adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system
Model | PLG-10C | PLG-20C | PLG-50C | PLG-100C | PLG-200C | PLG-300C | ||
Mean load max(kN) | ±10 | ±20 | ±50 | ±100 | ±200 | ±300 | ||
Force amplitude(kN) | ±10 | ±10 | ±10 | ±50 | ±100 | ±150 | ||
Load step | 1,2,5 | 1,2,5 | 1,2,5 | 1,2,5 | 1,2,5, | 1,2,5 | ||
Accuracy of static load | ≤±1% |
| ||||||
Range of frequency(Hz) | 60~300HZ |
| ||||||
Power | 380V, 3phs, |
| ||||||
Load fluctuation | Dynamic | 0.5%F-S |
| |||||
Static | 0.5%F-S |
| ||||||
Max. distance between grips (mm) | 600 | 600 | 600 | 800 | 800 | 800 | ||
Max. distance between columns (mm) | 400 | 420 | 480 | 500 | 540 | 620 | ||
Dimension (mm) | Main unit | 680×500 | 700×500 | 800×700 | 900×800 | 1100×1100 | ||
Electric controller case | 600×650×1200
|
| ||||||
weight (kg) | Main unit | 1300 | 1500 | 1500 | 2750 | 4000 | 7200 | |
Electric controller case | 50 | 50 | 70 | 70 | 100 | 120 | ||
Packing & Shipping :
1.Packing with high quality standard to ensure safety when transportation.
2.Low Delivery Freight,because we are close to Qingdao Seaport.
3.Prompt shipment and keep you informed for delivery.
Service :
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
About us:
--OEM,ODM avaliable.
--CE ISO Certification
--Near Qingdao sea port,high quality,good service

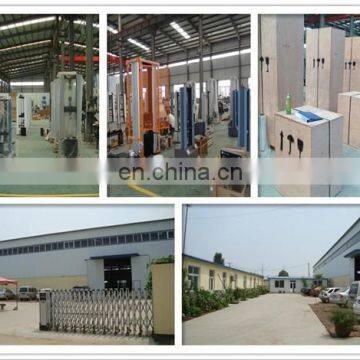

-- 200 workers,1000m2 non-dust workshop,20 years experience
--We have our own brand PTE and it has high reputation at home and abroad.We have so many agents in the world
More products:
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min | 0-20/0.05 |
Max. tensile space | 560 |
Max. Compression space | 530 |
Max. Distance Between Two | 400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper | 320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston | 690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
| Item | NJS-30 |
| Max torque(Nm) | 30 |
| Torque resolution (Nm) | 0.01 |
| Accurate measuring range of torsion (Nm) | 0.6-30 |
| Full-scale reading of torsion angle (º) | 9999.9 |
| Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
| Model | PLS-50 |
| Static | ±50 |
| Dynamic | 50 |
| Function generator Range of frequency(Hz) | 0.01~20HZ |
| Stroke of piston(mm) | ±75 |
| Distance between columns | 500 |
RTH CREEP TESTING MACHINE
| Working Temp. range | 400°C~1200°C |
| Length of effective soaking zone | 150mm |
| Furnace pipe: | φ90mm |
| Furnace: | φ300mm |
| Furnace life: | ≥3000hours |
| Timing error | ±0.2% |
