Electric Hydraulic Servo Compression Tester Concrete From Gold Brand Supplier

Electric Hydraulic Servo Compression Tester Concrete From Gold Brand Supplier photo-1
Electric Hydraulic Servo Compression Tester Concrete From Gold Brand Supplier photo-2

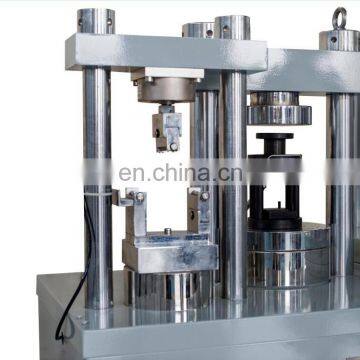

Electric Hydraulic Servo Compression Tester Concrete From Gold Brand Supplier photo-3
Electric Hydraulic Servo Compression Tester Concrete From Gold Brand Supplier photo-4
Electric Hydraulic Servo Compression Tester Concrete From Gold Brand Supplier photo-5
Electric Hydraulic Servo Compression Tester Concrete From Gold Brand Supplier photo-6
US$ 4,900 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CB
Model Number:
YAW-300A
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CB
Model Number YAW-300A
Power Hydraulic
Compression Tester

                                                              Appearance

Electric hydraulic servo compression tester concrete from gold brand supplier



Electric hydraulic servo compression tester concrete from gold brand supplierElectric hydraulic servo compression tester concrete from gold brand supplier



                                           Introductions

YAW-300A microcomputer controlled compression/bending testing machine is our company's latest one tester, which is suitable for the using of scientific research institutes, industrial and mining enterprises etc. Presently, it has automaticlly completed of a batch of six test control mode according to the standards of GB177-85 and GB17671 -1999 of the Testing Method for Compressive Strength of Cement Mortar, which with control modes such as  constant speed test force, constant stress, testing the force retaining, etc. The tester can also achieve bending test before constant stress compression test, really achieve a multi-purpose machine.The test data, test curve screen display, disk storage, database management and other functions are realized.



                                         Parameters

Max testing force300KN
Bending loading range1-10KN
Precision1
Force measuremnet rabge1%-100%FS
Testing force resolution0.01KN
Loading speed0.1-10kN(could be setted freely)
Votage380±10%
Power 1.0kW

Testing space

285*260(mm)
Size820*420*1300
Weight350kg



Electric hydraulic servo compression tester concrete from gold brand supplierElectric hydraulic servo compression tester concrete from gold brand supplier



 Electric hydraulic servo compression tester concrete from gold brand supplier










Profile&cetification







Electric hydraulic servo compression tester concrete from gold brand supplierElectric hydraulic servo compression tester concrete from gold brand supplier



Jinan Chuanbai Instrument Equipment Co., Ltd. is located in Jinan, Shandong, a national testing machine production base. It is a high-tech production enterprise that integrates scientific research, development and development. Since its establishment, the company has been devoting itself to the research and development of mechanical test instruments, and its leading products. Screen display type hydraulic universal testing machine, electro-hydraulic servo universal testing machine, electronic tensile testing machine, microcomputer controlled electronic universal testing machine, artificial board universal testing machine, semi-automatic (automatic) impact testing machine, plastic and rubber non-metal testing machine , Electronic spring tension and pressure testing machine, geogrid detection equipment and other types of products. In recent years, the company closely follows the development of international material testing machines and testing technology, boldly adopts high technology, attracts high-tech professionals, increases investment in technology research and development, and devotes itself to improving the intrinsic quality of the instrument, keeping improving, being honest and trustworthy, and enabling each series to be tested. The equipment has been greatly developed, and its product performance and use have occupied a leading position in the testing machine industry.

Electric hydraulic servo compression tester concrete from gold brand supplier



FAQ

1. Are you a manufacturer?

Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years.

2. Do you have after-sales service?

In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions.

3. What is the delivery deadline?

Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.

4. What kind of packaging and transportation do you use?

Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.

5. Can the device be customized?

We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.

6. What kind of packaging do you use?

Plastic sealed and sturdy wooden box.

7. What payment methods do you support?

Paypal, T/T, Western Union and Escow.
