Equipped with standard fixtures.
The equipment has been continuously updated. Considering your different needs, the device configuration data is for reference only. Please contact us before placing an order, so that you can get more accurate data.

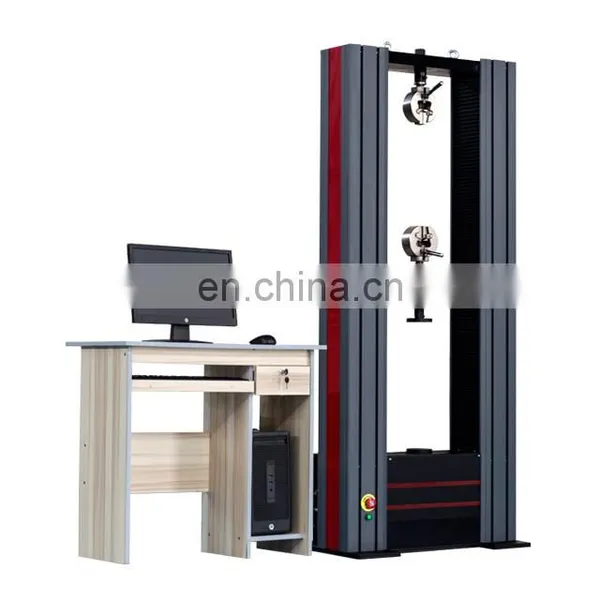

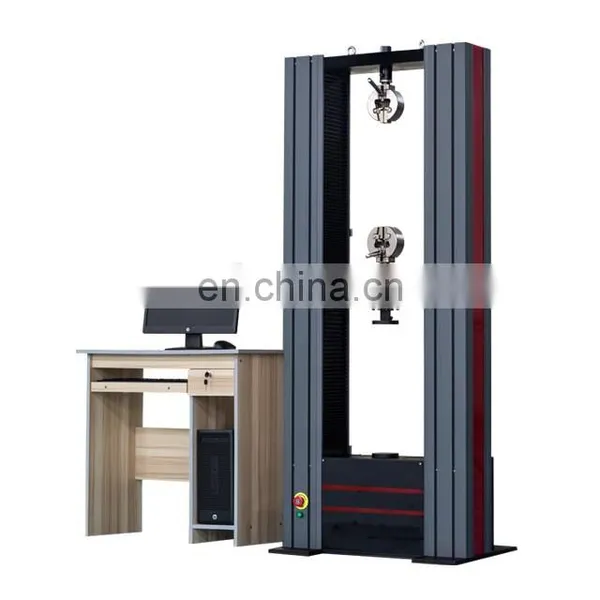

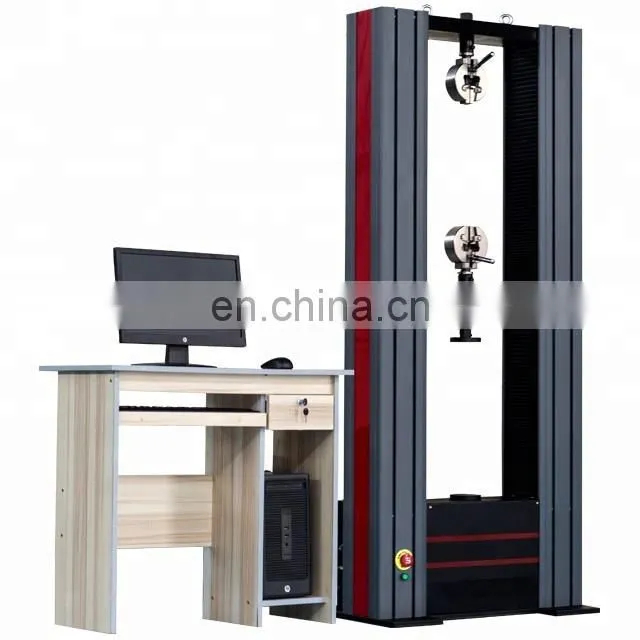

The TDW--50 spring tension pressure testing machine is made according to the technical requirements stipulated by the national spring tension testing machine standard. The specially designed automatic control and data acquisition system realizes the full digital adjustment of data acquisition and control process. Can be used to test and analyze the tension, pressure, displacement, stiffness and other strength of precision springs, such as tension, pressure, displacement, stiffness, etc. The design of the test machine's main engine and auxiliary equipment is based on the advanced technology of shimazu, Japan. The computer system controls the rotation of the servo motor through the controller and the speed control system. After the deceleration of the deceleration system, the pressure disk is driven up and down by the precision screw pair.

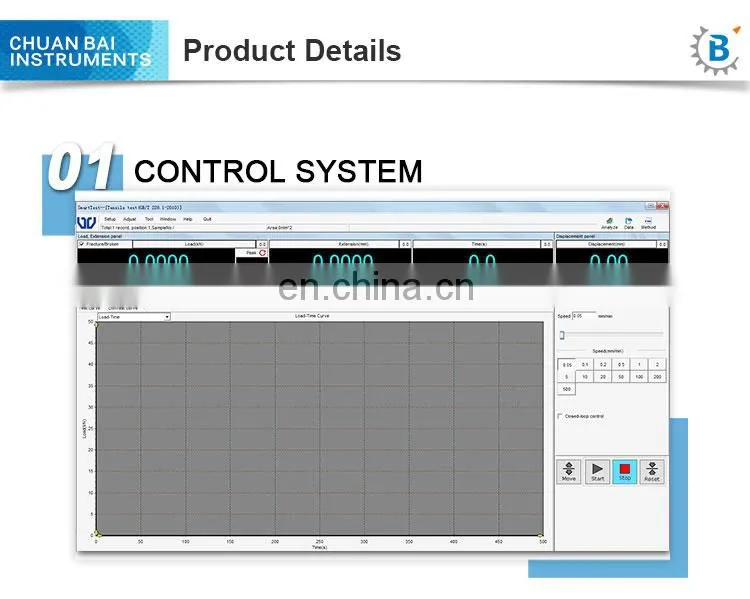

1.Control system :Portable manual control system to facilitate the user to quickly perform test operations, effectively ensure the safety of the system, and the reliability of the test operation;

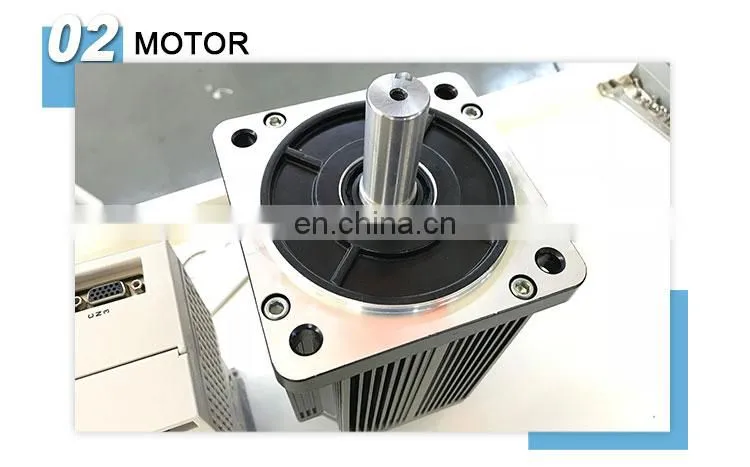

2.Motor :Use ac servo motor and driver to drive ,stable and durable performance,high precision and low noise.
3.Load cell:High resolution load cell , strong anti-interference ability,accuracy is 0.5 grade.
1.A testing machine integrates various independent testing functions such as tension, compression, bending, tearing, and peeling, providing a variety of test items for users to choose;
2.The synchronous belt drives the ball screw to rotate, ensuring high-precision and stable operation;
3.1 ~ 500mm/min stepless speed change, which provides users with convenient testing of different test conditions;
4. Multi-level limit protection, overload protection, automatic high-speed return, fault prompts and other intelligent configuration to ensure the safety of the user's operation;
5. Portable manual control system to facilitate the user to quickly perform test operations, effectively ensure the safety of the system, and the reliability of the test operation;
6.The equipment adopts miniaturization and structural integration design to meet the test requirements for various occasions;
7.Professional software provides group test curve overlay analysis and statistical analysis of maximum, minimum, average, standard deviation, etc.
Motor :Use ac servo motor and driver to drive ,stable and durable performance,high precision and low noise.
Load cell:High resolution load cell , strong anti-interference ability,accuracy is 0.5 grade.
Sheet metal :Sheet metal electrostatic spraying treatment ,beatiful ,generous and durable..
1.Response within 24 hours for any problem.
2.Lifelong after sales service & maintenance.
3.Our company adheres to the tenet of "no fussy customers, only imperfect products", takes development as our responsibility.
4.Our products are equipped with more than 100 different sample holders for users to choose, which can meet the testing requirements of more than 1000 kinds of materials.
5.Installation and training service is available.
6.According to different user materials, Chuanbai also provides customized services to meet different users' needs.
Jinan Chuanbaistrument Equipment Co., Ltd. is located in Jinan, Shandong, a national testing machine production base. It is a high-tech production enterprise that integrates scientific research, development and development. Since its establishment, the company has been devoting itself to the research and development of mechanical test instruments, and its leading products. Screen display type hydraulic universal testing machine, electro-hydraulic servo universal testing machine, electronic tensile testing machine, microcomputer controlled electronic universal testing machine, artificial board universal testing machine, semi-automatic (automatic) impact testing machine, plastic and rubber non-metal testing machine , Electronic spring tension and pressure testing machine, geogrid detection equipment and other types of products. In recent years, the company closely follows the development of international material testing machines and testing technology, boldly adopts high technology, attracts high-tech professionals, increases investment in technology research and development, and devotes itself to improving the intrinsic quality of the instrument, keeping improving, being honest and trustworthy, and enabling each series to be tested. The equipment has been greatly developed, and its product performance and use have occupied a leading position in the testing machine industry. Our company adheres to the tenet of "no fussy customers, only imperfect products", takes development as our responsibility, and serves our customers with the purpose of providing our customers with a full range of thoughtful services ranging from design, production to installation training.
1. Are you a manufacturer?
Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union and Escow, we recommend that you pay via Alibaba.
