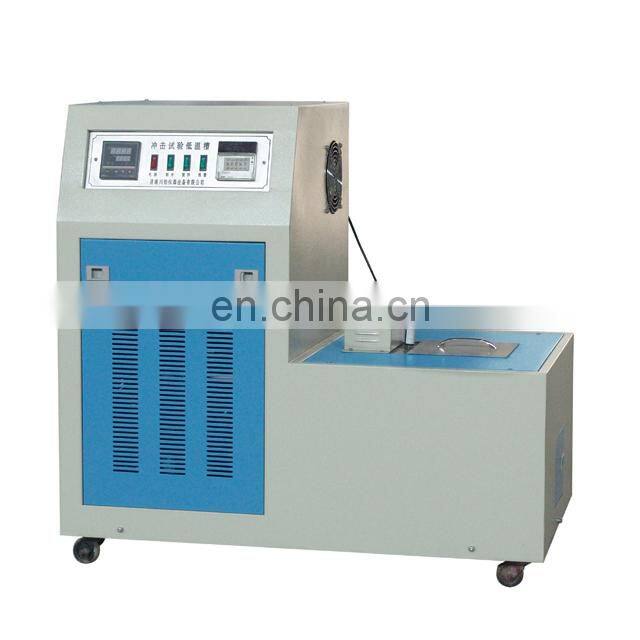

DWC Charpy Impact Test Cooling Chamber
DWC series charpy impact test cooling chamber is the latest compressor refrigeration equipment developed by our company according to the requirements of GB/T229-2007 "Metal Charpy Pendulum Impact Test Method" for cryogenic equipment. The equipment adopts the cascade compressor refrigeration technology, and uses the principle of heat balance and the circulating stirring method to achieve automatic uniform cooling and constant temperature of the sample, which can fully meet the various temperature control indexes stipulated by the national standard GB/T229-2007. The compressor adopts imported compressor. This equipment is simple and convenient to operate and has high working efficiency. It is an ideal sample cooling and heat preservation equipment for metal low temperature impact test. It can also be used for other low temperature detection and testing work.
DWC-80A drop hammer tearing low temperature tank is the latest compressor refrigeration equipment developed by our company according to the requirements of national standard for cryogenic equipment. It can fully meet the requirements of the national standard GB/T8363 "Test method for falling weight of ferritic steel drop hammer".
Main Specifications
model |
DWC-40 |
DWC-60 |
DWC-80 |
Cooling range |
Room temperature ~ -40 ° C |
Room temperature ~-60 ° C |
Room temperature ~ -80 ° C |
Constant temperature accuracy |
<±0.5°C |
||
Holding time |
8min (can be adjusted) |
||
Dimensions |
800×510×480mm |
900×505×850mm |
900×510×850mm |
Effective workspace |
120×120×80mm |
||
Number of samples that can be loaded |
>60 |
||
Digital thermometer |
Resolution working power supply 0.1 ° C |
||
Digital timer |
1 second to 99 minutes, resolution 1 second |
||
Cooling medium |
Ethanol or other antifreeze |
||
Working power supply |
220~240V, 50HZ |
||
