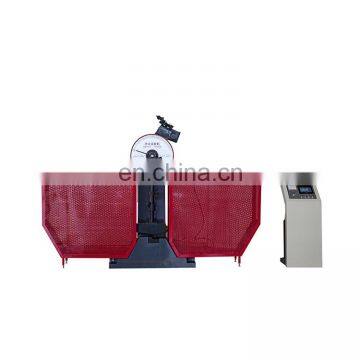

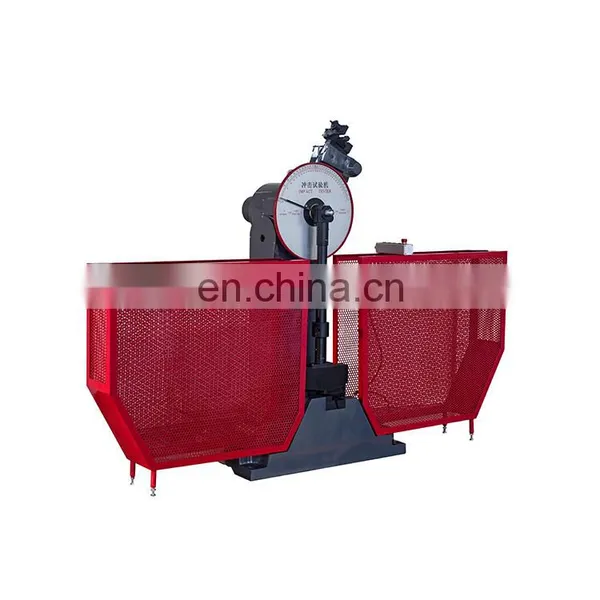

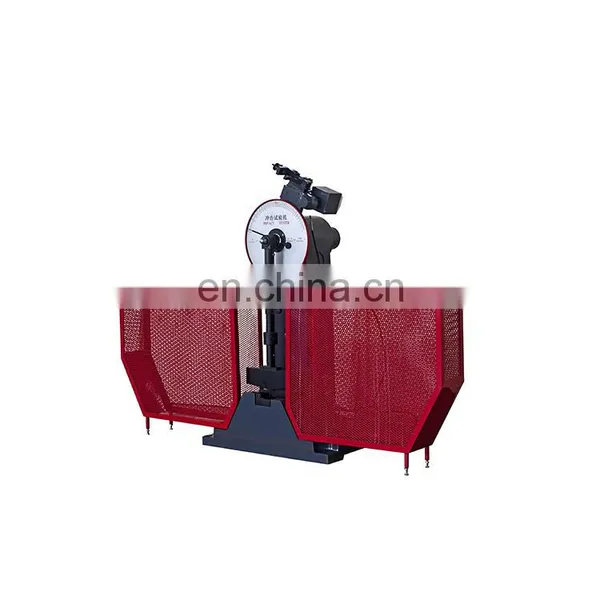

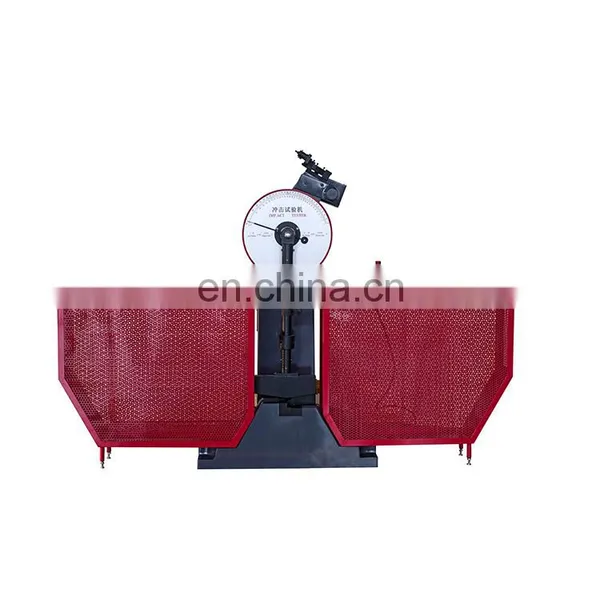

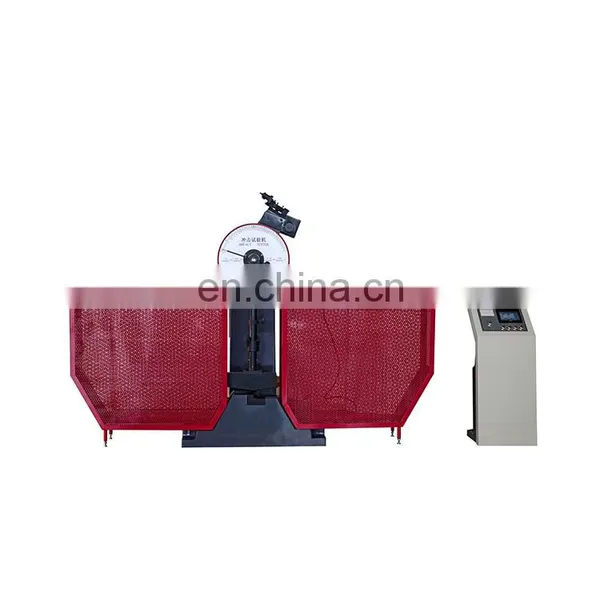

Help CenterJBS-300B/300J Semi-automatic Pendulum Impact Testing Machine
Related Products
-
DWC Impact Test Cryogenic Cooling Chamber / Impact Test Low Temperature TankUS$ 3,000 - 3,000MOQ: 1 Set -
JBW-300 300J Computer Pendulum Charpy Impact Tester Computerized Best PriceUS$ 10,000 - 18,000MOQ: 1 Set
-
JBW-300B Series Computer Monitor Pendulum Charpy Impact Tester + Charpy Low Temperature Impact Tester + Impact Strength Test maUS$ 5,000 - 8,000MOQ: 1 Set
-
JB-300B 300J Charpy Pendulum Impact TesterUS$ 3,000 - 3,200MOQ: 1 Set
-
300J ASTM Standards Metal Impact Tester With Original Manufacturer a Range of Pendulum Impact TestersUS$ 3,100 - 3,400MOQ: 1 Set
Digital drop hammer impact testing machine
Equipped with standard fixtures.
The equipment has been continuously updated. Considering your different needs, the device configuration data is for reference only. Please contact us before placing an order, so that you can get more accurate data.

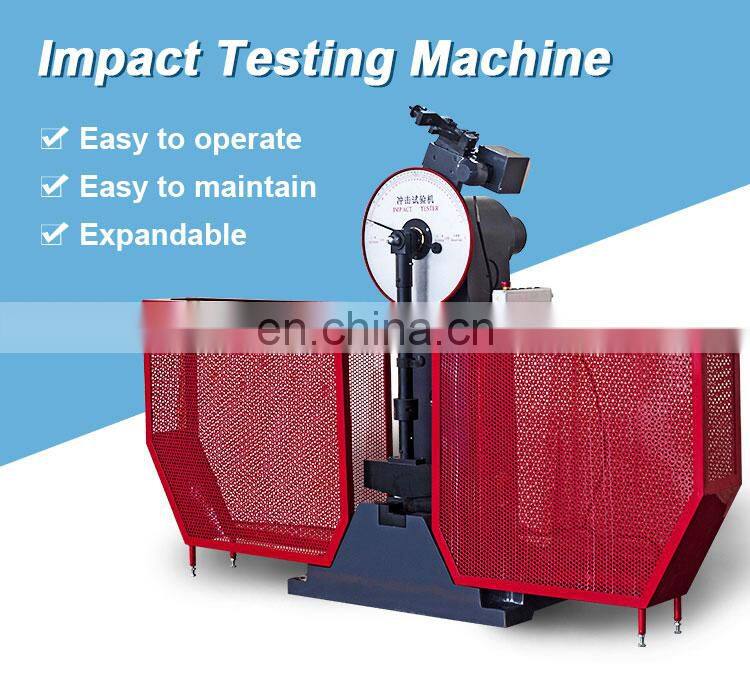

The JB-300B impact testing machine is used to determine the resistance of metal materials to impact under dynamic load, and to judge the quality of the material under dynamic load. It is especially suitable for laboratories that continuously perform impact tests and metallurgical and mechanical manufacturing industries that do a lot of impact tests.
Product Name | Impact Testing Machine |
Model | JB-300B |
Angle accuracy | 0.1° |
Impact energy | 300J 150J |
Displacement resolution | 0.01mm |
Pendulum lifting angle | 150° |
Impact speed | 5.2m / s |
Sample bearing span | 40mm |

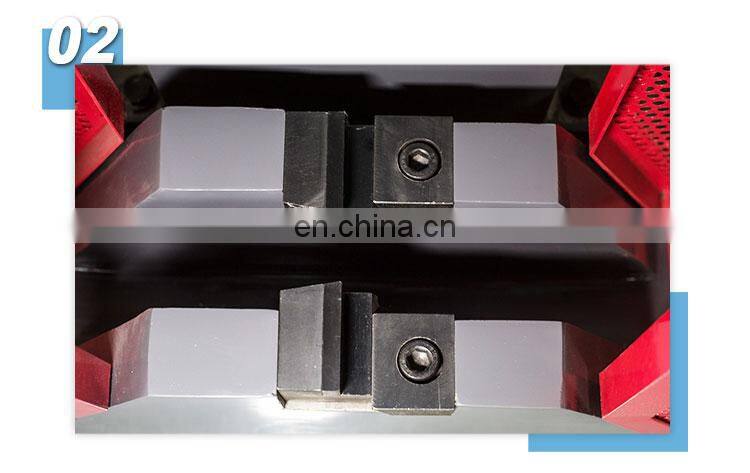

The holder jaw fillet | R1.0 ~ 1.5mm |
Standard sample size | 10×10 (7.5 or 5)×55mm |
Size | 2200×650×1900(mm) |
Machine Weight | 500KG |
Power | 250W |
MOQ | 1 set |
Supply Ability | 300 sets / month |
Payment | Paypal, T/T, Western Union and Escow |
Packing | Plastic sealed and sturdy wooden box. |
If any product meet your demand, please do not hesitate to contact us! | |
Impact testing machine is a semi-automatic control testing machine with simple operation, high working efficiency, electric control of swing, impact and swing. It can automatically use the remaining energy after punching the sample to prepare for the next test.It is common testing equipment for quality inspection.
1.Simple structure, high accuracy, easy to operate.
2.Unique carbon fibre swing arm, high strength, light weight.
3.Adopt circle grating technology to measure angle, high accuracy, excellent stability and large testing range.
4.The pneumatic clamping, the pneumatic release of the pendulum and the horizontal adjustment auxiliary system effectively avoid the systematic errors caused by human factors.
5.Digital display parameters, automatic correction of energy loss.
6.The test machine is semi-automatically controlled. The pendulum, sway, impact, and swing are all electrically controlled, and the remaining energy after the sample is broken can be automatically lifted to prepare for the next test.

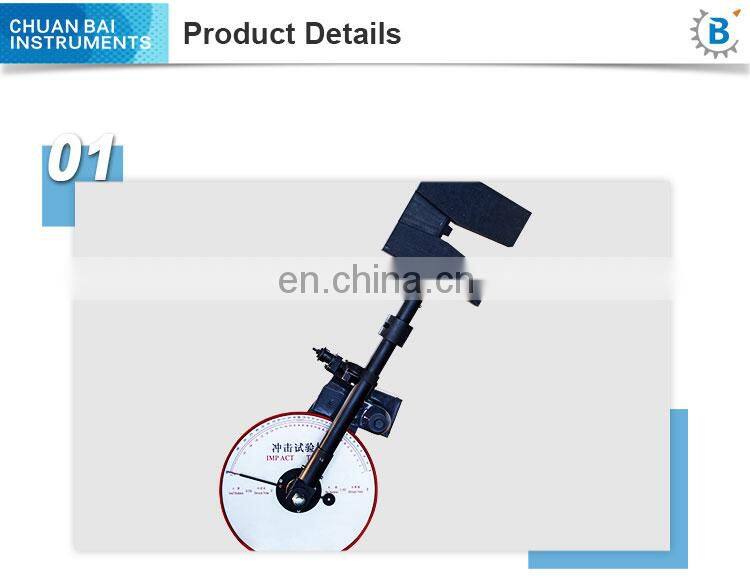

1.The main machine of the test machine is a single support column structure, a cantilever type hanging pendulum mode, and a pendulum hammer type C.
2.The impact knife is fixed by screws, which is easy and convenient to replace.

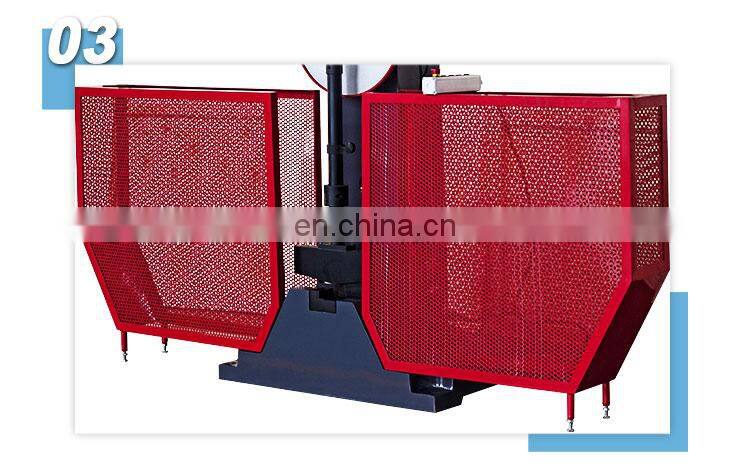

3.The host is equipped with a safety protection pin, and is equipped with a safety net.
Jinan Chuanbai Instrument Equipment Co., Ltd. is located in Jinan, Shandong, a national testing machine production base. It is a high-tech production enterprise that integrates scientific research, development and development. Since its establishment, the company has been devoting itself to the research and development of mechanical test instruments, and its leading products. Screen display type hydraulic universal testing machine, electro-hydraulic servo universal testing machine, electronic tensile testing machine, microcomputer controlled electronic universal testing machine, artificial board universal testing machine, semi-automatic (automatic) impact testing machine, plastic and rubber non-metal testing machine , Electronic spring tension and pressure testing machine, geogrid detection equipment and other types of products. In recent years, the company closely follows the development of international material testing machines and testing technology, boldly adopts high technology, attracts high-tech professionals, increases investment in technology research and development, and devotes itself to improving the intrinsic quality of the instrument, keeping improving, being honest and trustworthy, and enabling each series to be tested. The equipment has been greatly developed, and its product performance and use have occupied a leading position in the testing machine industry.
1. Are you a manufacturer?
Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years.
2. Do you have after-sales service?
In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions.
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized?
We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union and Escow.
