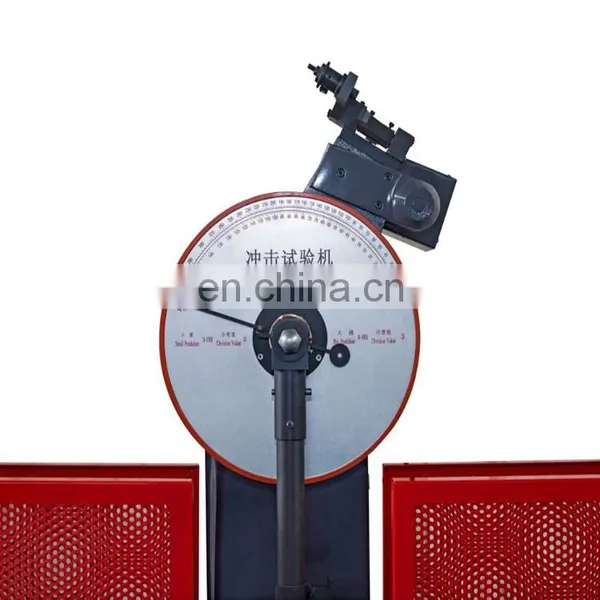

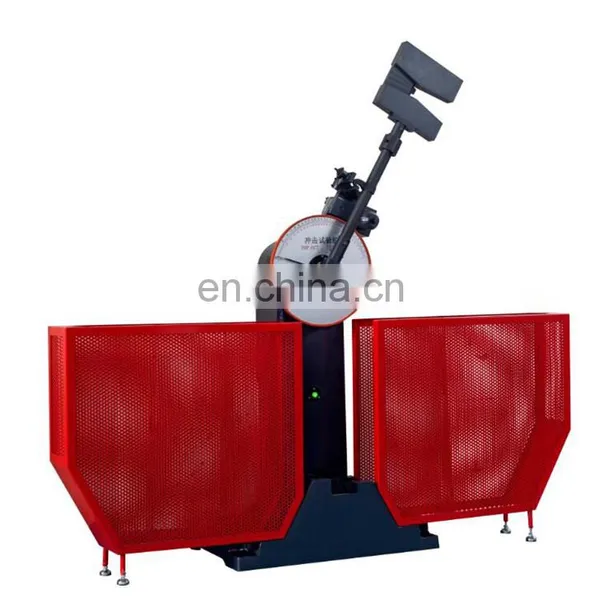

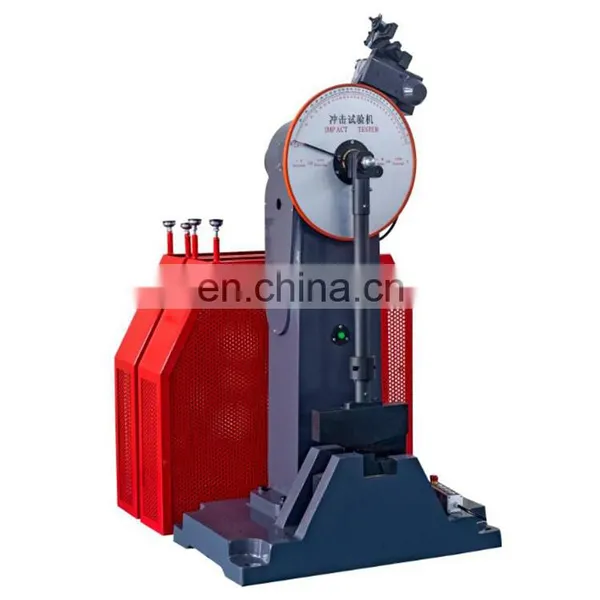

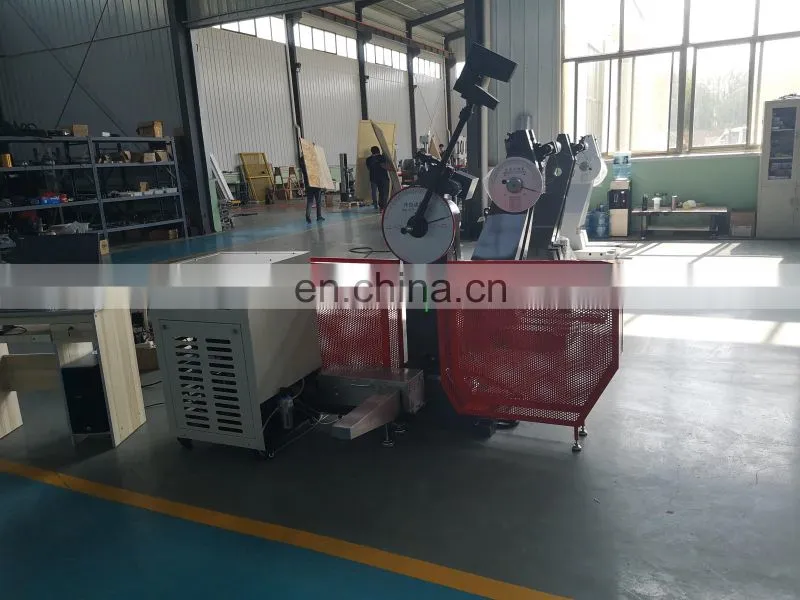

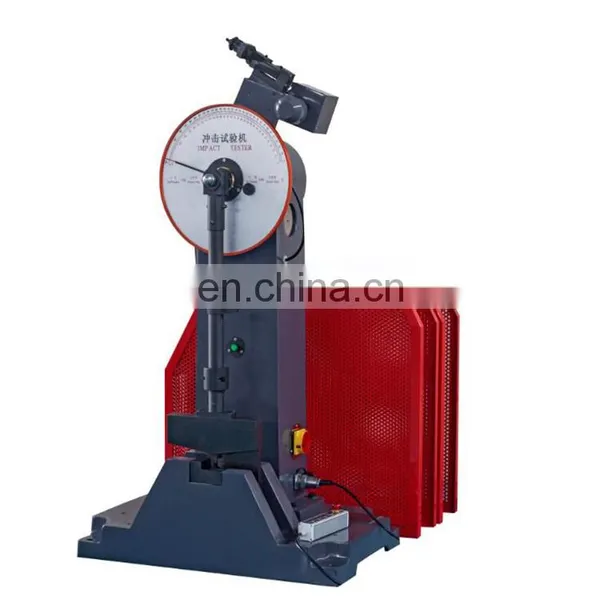

Automatic feeding impact testing machine JBW-300Y -60 degrees Celsius
JBW-300Y low temperature impact testing machine is used to test the performance of metal materials against impact under dynamic load. It is an indispensable testing instrument for metallurgical machinery manufacturing and other units. It is also an indispensable test instrument for scientific research units to conduct new material research.
1. This machine adopts automatic control. The pendulum, hanging pendulum, feeding, positioning, impact and temperature adjustment equipment are all electrical and mechanical control. It is equipped with special feeding device for automatic feeding and automatic end face positioning of the sample. The sample exits the cryostat to an impact time of no more than 2 seconds, meeting the requirements of the metal low temperature Charpy impact test method. After impacting the sample, the remaining energy can be automatically lifted, ready for the next test, and the work efficiency is high;
2 The main body of the testing machine is a split structure, a cantilever type hanging pendulum method, and a pendulum hammer type C;
3. The impact knife is fixed by screws, which is easy and convenient to replace;
4, the sample simply supported beam support;
5, the host is equipped with a safety net;
6. The testing machine complies with the national standard GB/T3808-2002 "Inspection of pendulum impact testing machine", and the metal material is subjected to impact test according to GB/T229-2007 "Metal material Charpy pendulum impact test method".
1.Simple structure, high accuracy, easy to operate.
2.Unique carbon fibre swing arm, high strength, light weight.
3.Adopt circle grating technology to measure angle, high accuracy, excellent stability and large testing range.
4.The pneumatic clamping, the pneumatic release of the pendulum and the horizontal adjustment auxiliary system effectively avoid the systematic errors caused by human factors.
5.Digital display parameters, automatic correction of energy loss.
6.The test machine is semi-automatically controlled. The pendulum, sway, impact, and swing are all electrically controlled, and the remaining energy after the sample is broken can be automatically lifted to prepare for the next test.
1.The main machine of the test machine is a single support column structure, a cantilever type hanging pendulum mode, and a pendulum hammer type C.
2.The impact knife is fixed by screws, which is easy and convenient to replace.
3.The host is equipped with a safety protection pin, and is equipped with a safety net.
Jinan Chuanbai Instrument Equipment Co., Ltd. is located in Jinan, Shandong, a national testing machine production base. It is a high-tech production enterprise that integrates scientific research, development and development. Since its establishment, the company has been devoting itself to the research and development of mechanical test instruments, and its leading products. Screen display type hydraulic universal testing machine, electro-hydraulic servo universal testing machine, electronic tensile testing machine, microcomputer controlled electronic universal testing machine, artificial board universal testing machine, semi-automatic (automatic) impact testing machine, plastic and rubber non-metal testing machine , Electronic spring tension and pressure testing machine, geogrid detection equipment and other types of products. In recent years, the company closely follows the development of international material testing machines and testing technology, boldly adopts high technology, attracts high-tech professionals, increases investment in technology research and development, and devotes itself to improving the intrinsic quality of the instrument, keeping improving, being honest and trustworthy, and enabling each series to be tested. The equipment has been greatly developed, and its product performance and use have occupied a leading position in the testing machine industry.
1. Are you a manufacturer?
Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years.
2. Do you have after-sales service?
In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions.
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized?
We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union and Escow.
