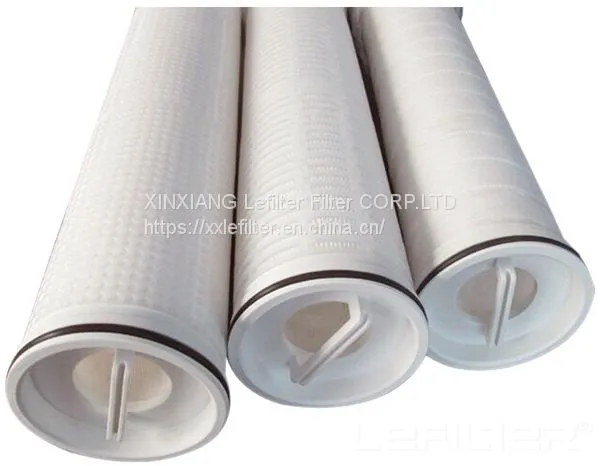

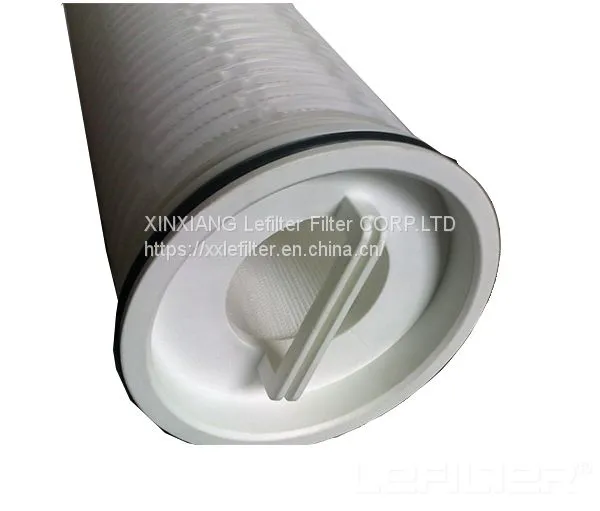

high flow filter cartridges pp membrane MFAP050-40N

The introduction of Parker high flow rate water filter:

Parker’s Fulflo® MegaFlow+™ cartridges are ideally suited for high flow applications where absolute particle removal is required. Each MegaFlow+™ cartridge can handle flow rates up to 175 gpm (662 lpm),significantly reducing the number of cartridges required as well as the

housing size. each 6 inch (152 mm) diameter MegaFlow+™ cartridge has flow capacity equal to 8 standard 2½ inch od X 40 inch long cartridges. Positive o-ring seals and a built in handle make cartridge installation reliable, fast and easy.
MegaFlow+™ cartridges are available with pleated polypropylene media for use in a wide variety of fluids. Absolute ratings range from 1 µm to 150 µm.

The parameter of Parker high flow rate water filter:

Dimensions: 6 in (152 mm) OD 3.5 in (89 mm) ID, 40 in (1016 mm) long
Absolute Filtration Ratings:(βx = 5000; 99.98%):
Polypropylene: 1, 2, 5, 10, 20, 40, 70 µm
Cellulose: 10, 15, 25, 100, 150 µm

The Materials of Construction of Parker high flow rate water filter:
Media: Polypropylene microfiber
(P Code) Cellulose with phenolic binder
(C Code)
Support Layers: Polypropylene (P Code);
End caps: Glass Filled Polypropylene

O-Rings: Buna-N, EPR, Silicone, Fluoroelastome

The Applications of Parker high flow rate water filter:
• Potable Water
• Vegetable Oil
• Wastewater
• Lubricants
• Food and Beverage
• Coolants
