1.Product information

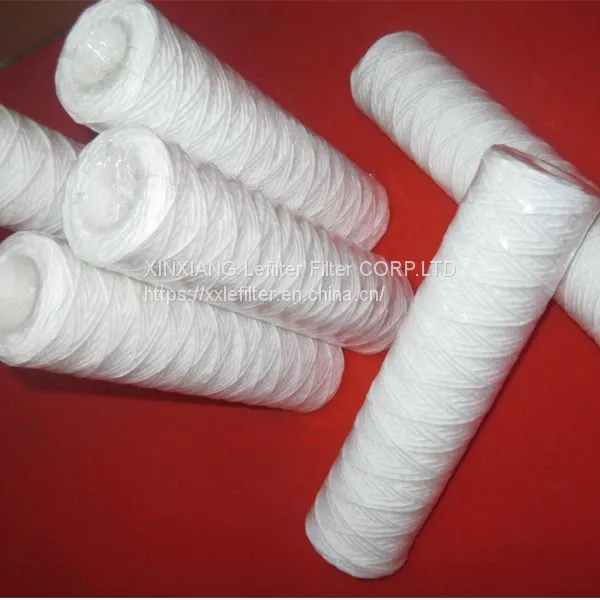

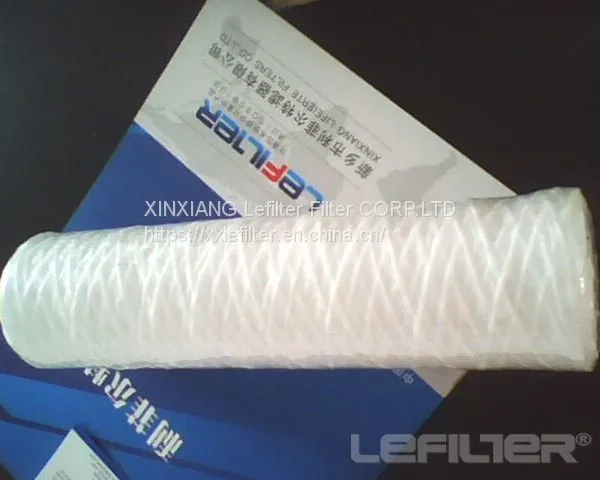

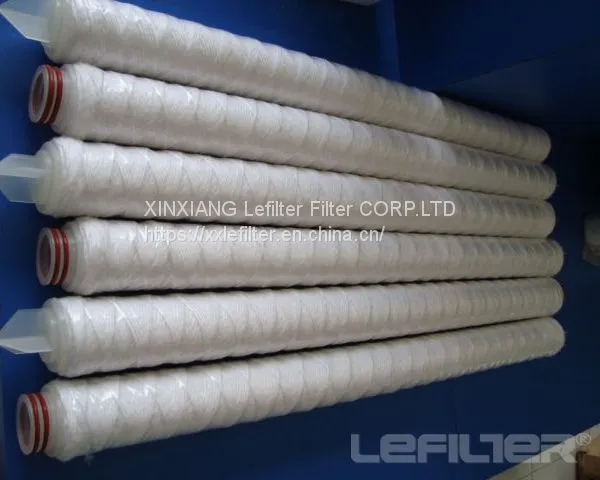

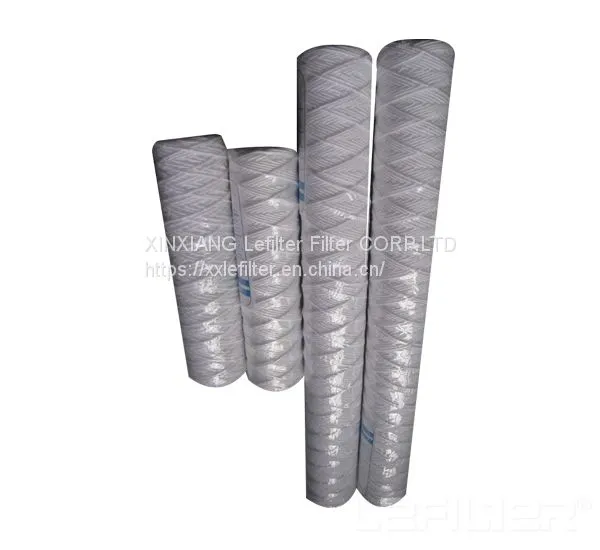

Wire-wound filter is made of textile fiber roving, which is tightly wrapped on porous skeleton according to the specific process, forming a honeycomb structure that is loose outside but tight inside. Wire-wound filter with eminent filtering feature can effectively remove the impurity substance in the fluid, such as suspended matter, rust and particle.
2.Product features
Wire-wound filter element is made of textile fiber yarn, which is tightly wrapped on porous skeleton, and its different filtering precision is controlled by the winding density of filtering layer and shapes of filter hole
It can withstand high filtration pressure
It has a wide range of chemical compatibility
A variety of materials can be used to make this filter element in order to adapt to the demand of different liquid filtration
The structure of filter aperture with deep filtering effect is loose outside and tight inside
With the small pressure drop and large pollutant-carrying capacity this filter element can effectively remove suspended matters and particles in liquid.
3.Technical specifications
Filter size:
Outer diameter: 62 mm, 110 mm
Inside diameter: 28 mm, 30 mm
length：9.75’’，9.87’’，10’’，20’’，30’’，40’’
Parts material:
Filter material: polypropylene (PP), absorbent cotton, glass fiber
Center rod: polypropylene and stainless steel
Filter performance:
Filtering accuracy: 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm,100μm
Polypropylene wire-wound filter element can be used in chemical solvents such as acid and alkali, organic solution, and the suggested highest operating temperature is 60 ℃ or less.
The center rod of absorbent cotton fiber filter is made of stainless steel, and it can be used in organic solution, water, oil, alkaline solution, beverage, and medicine etc.
4.Application field
Pre filtering treatment of drinking water
Filtration of acid and lye liquid in chemical process
Filtration of industrial chemicals and organic solvent
Pre filtering of reverse osmosis in RO
Filtration of serous fluid such as syrup, chocolate
Filtration of developing liquid, ink
Pre filtration of sterile water and ultrapure water
Treatment of industrial water and plating solution
