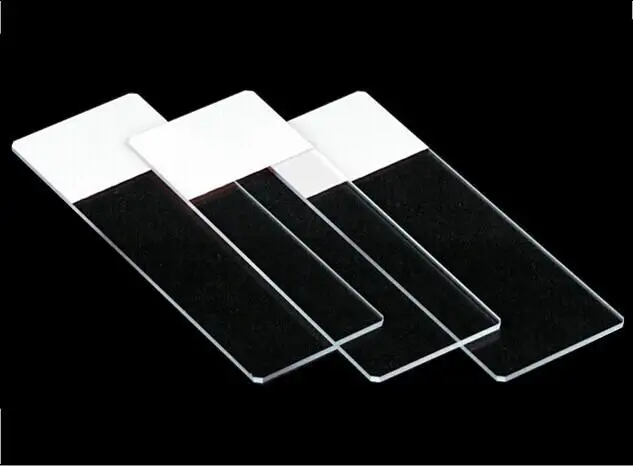

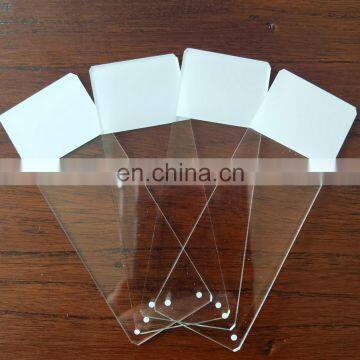

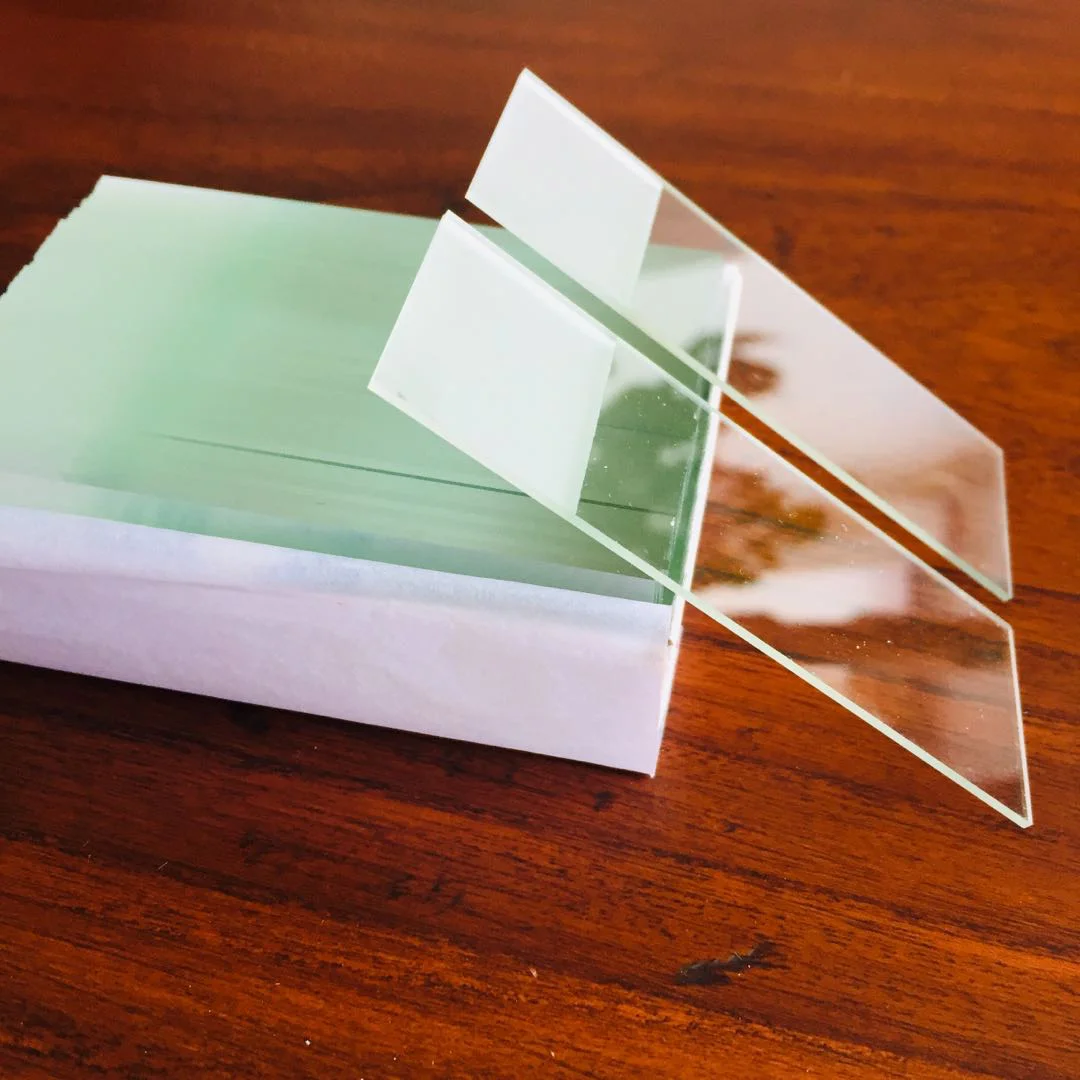

Microscope ColorCode Slides
US$ 0.85 - 0.89
/ Box
3000 Boxes(Min. Order)
- Qingdao port
- T/T Credit Card
You May Like
Product Details
| Brand Name | Broad | Place of Origin | Shandong, China | |
| Model Number | 7109(color slides) |
Product Description
Product Description

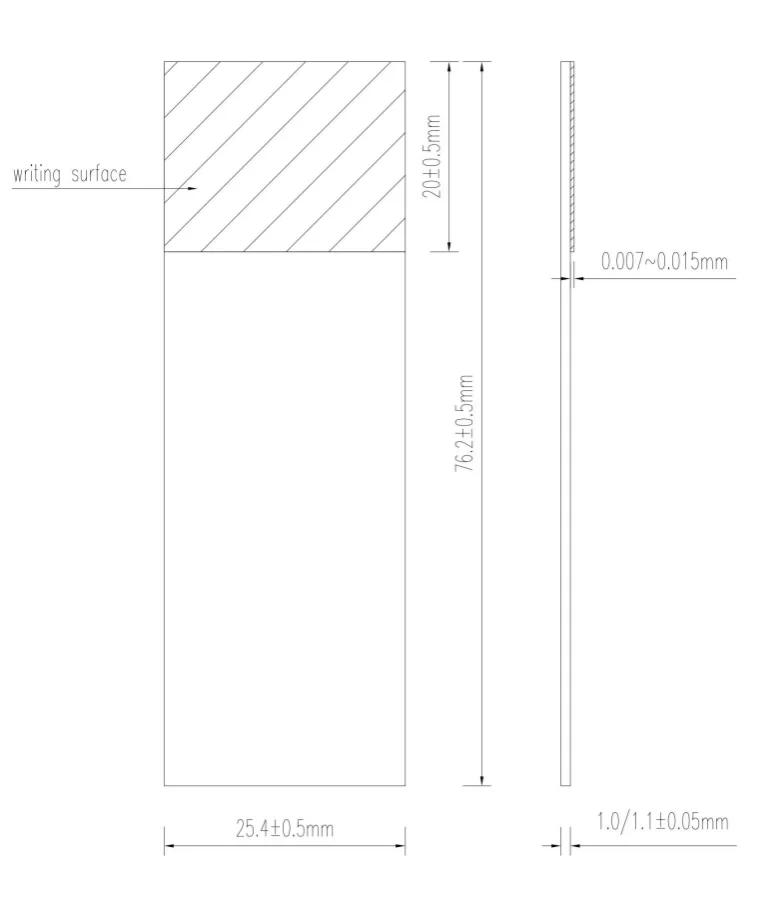

Glass slides size
1、Size:
• 25.4*76.2 ± 0.5mm.
2、Thickness
• 1.0/1.1± 0.5mm.
3、Note:
•Slide size can be customized.
•Slide thickness can be customized.
•Slide styles are customizable.
•Slide thickness can be customized.
•Slide styles are customizable.

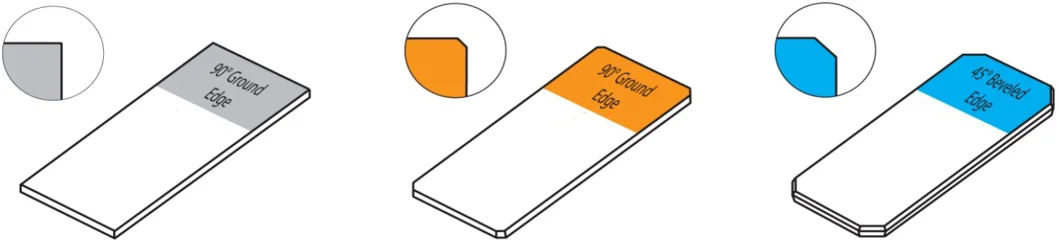

Edges & corners
1、Edges:
•Shape: 90° or 45 °.
•Process: mechanical edge or chemical edge.
2、Corners:
•Shape: 90° or 45° .
Material Description:
1、Glass types
•No tin surface glass。
•Water white glass。（√）
•Ultra-clear glass。（√）
Gaopeng silicon glass.
2、Glass composition
•SiO2 70.00～73.00%
•Fe2O3 0.01～0.10%
•Al2O3 0.50～2.00%
•CaO 7.00～12.00%
•MgO 1.00～4.50%
•K2O 0.01～0.05%
•Na2O 13.40～14.00%
•Fe2O3 0.01～0.10%
•Al2O3 0.50～2.00%
•CaO 7.00～12.00%
•MgO 1.00～4.50%
•K2O 0.01～0.05%
•Na2O 13.40～14.00%
Glass performance
1、Mechanical properties
•Density：2.5g/cm³
•Mohs hardness:6.5*10³Pa
2、Thermal properties
•Thermal conductivity：20℃ 0.95±0.05W/MK
•Coefficient of linear expansion：0～500 8.9
3、Strain point：500℃
Softening point：585℃。
4、Chemical stability
•Acid：level 2 ，
•Alkali：level 1
•Hydrolysis resistance：level 3
5、Chemical properties
•Refractive index：1.51～1.52
•transmittance：≧90%（λ=550mm）
Coating material
•Material：Environmental printing ink.
•Color: Various colors (customizable).
•Color size: 20±1.0mm.
•Performance: Resistant to laboratory chemicals and dyes.
Writing surface function
•The function：An information chip used for marking or writing as a glass slide.and the identification and traceability of samples are realized.
•Accepted tools: Handwriting, marker, laser printer, inkjet printer, thermal transfer, etc.
Product use
Ⅰ,Method of use
1. Smear method: it refers to the uniform application of biological materials on the slide.
2. Tabletting method method: the biomaterial is placed between the glass slide and the cover glass, and a certain pressure is applied
to disperse the tissue cells.
3. Loading method: it refers to sealing the whole biological material and making slide specimens.
4. Slice method : means to make a specimen of a glass slide from a thin slice cut from an organism.
2. Tabletting method method: the biomaterial is placed between the glass slide and the cover glass, and a certain pressure is applied
to disperse the tissue cells.
3. Loading method: it refers to sealing the whole biological material and making slide specimens.
4. Slice method : means to make a specimen of a glass slide from a thin slice cut from an organism.
Ⅱ,Cleaning
Slide cleaning: clean with water or alcohol, then wipe clean with cotton or gauze.

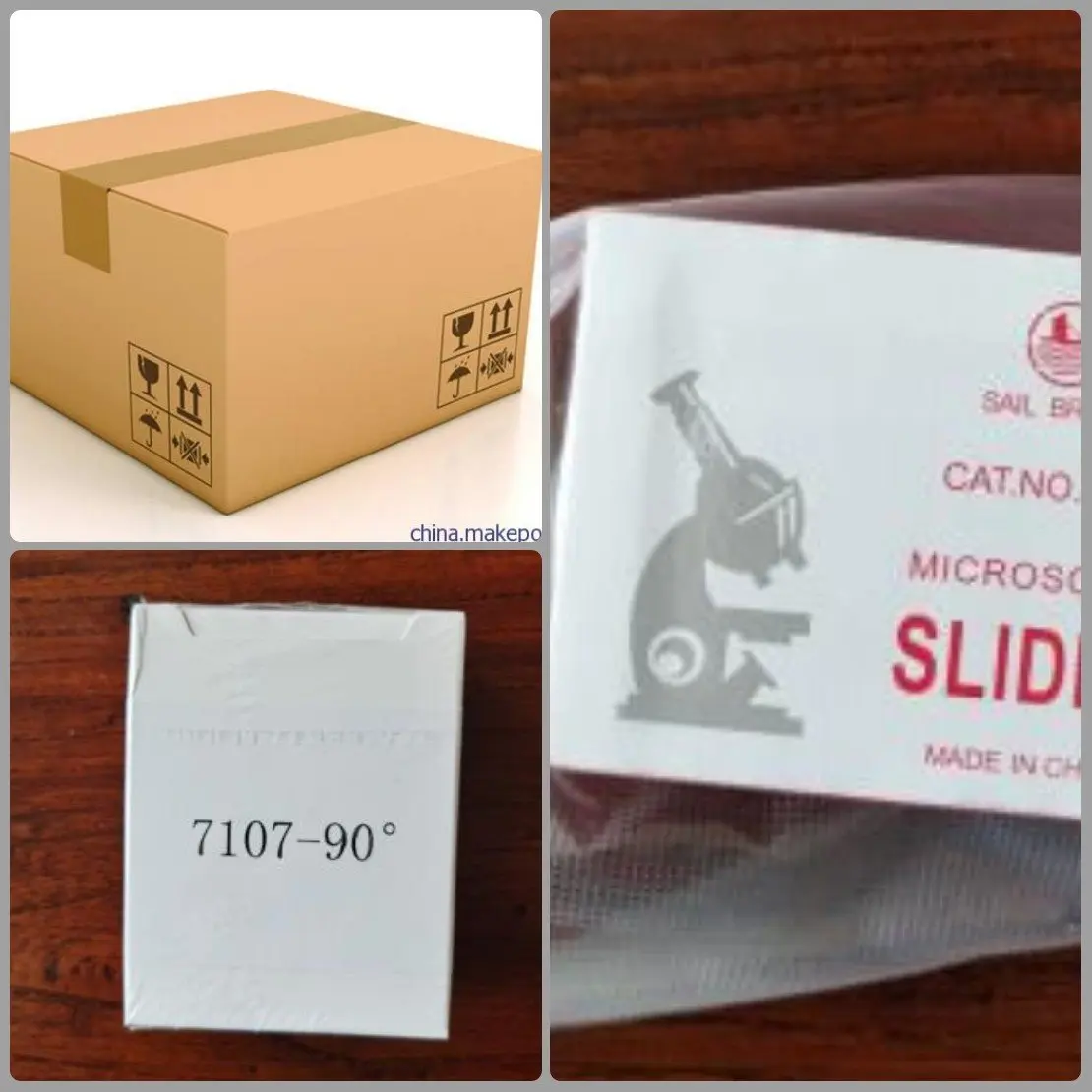

1. Internal packaging:
•Small paper box + vacuum plastic seal
2. Outer packing
•Cushioning fill + large carton
3.QTY:
•50pcs/box , 50box/carton, G.S14.0KG/carton
•72pcs/box , 50box/carton, G.S20.0KG/carton
Related Products
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Company Introduction
Qingdao Broad company is a professional company which produces microscope slides and cover slides. The company has excellent equipment, advanced technology, more than 20 years of experience in glass and deep processing industry; it selects high-quality glass, environmental ink, cationic polymer nano materials, etc., and strictly produces and controls the quality. Its main products include: Plain slide, frosted slide, color slide, charged microscope slide, pathological diagnosis slide, square and round cover glass slide and other series of products. Products are exported to Europe, America, Asia, Africa, Australia and other countries and regions, widely used in local schools, hospitals, and biological laboratories, etc., and are well received by users.
Our Services & Strength

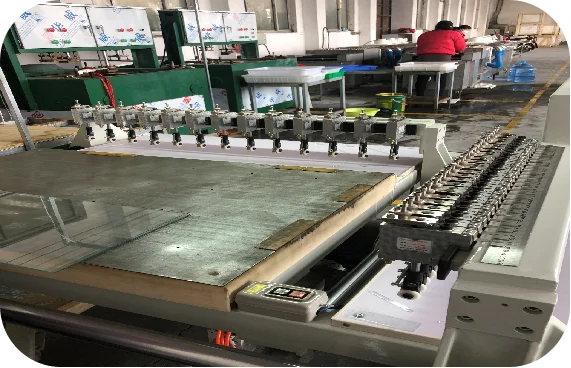

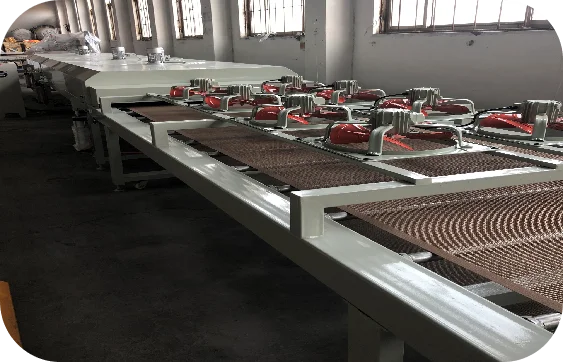

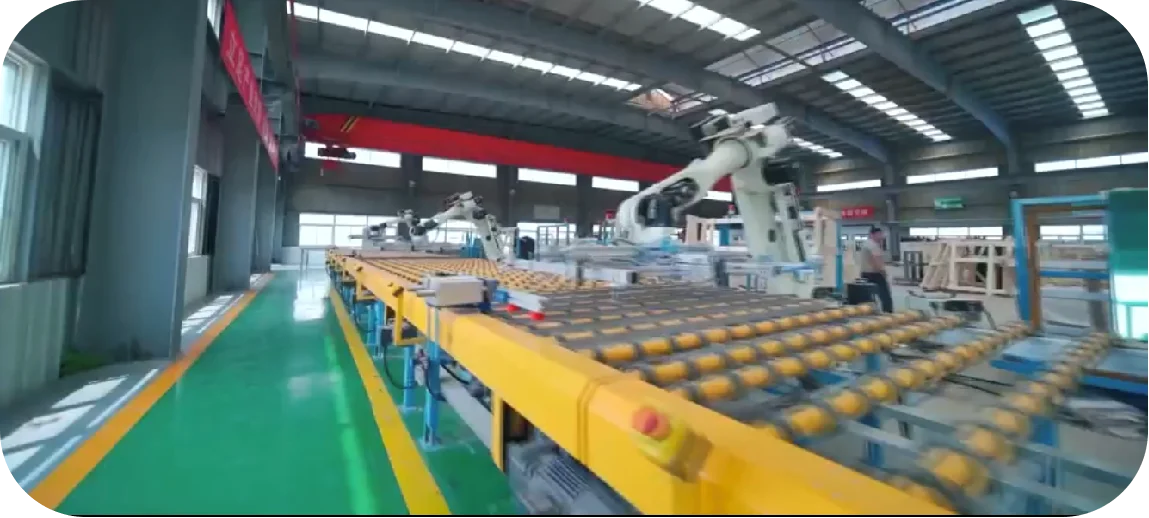

Our cutting, edges grinding, printing, surface functional processing, etc. Our equipment and processes are leading in the industry.
We can produce various types glass slides, cover glass, and accept custom services.
We can produce various types glass slides, cover glass, and accept custom services.
Contact us:
Name: Michael.Zhao
Mobiel: 008613853221956(wechat/whatsapp),
Email: rx_zhao@163.com
FAQ
Customer concerns
Answer is here.
1. Is the company a trading company or a factory?We are a professional manufacturer of microscope slides.
2. Can the product be customized according to customer requirements? yes.
2. Can the product be customized according to customer requirements? yes.
3. Can product packaging be customized according to customer requirements? yes.
4. Do you provide sample service? yes.
5. What are the modes of transportation: sea and air.
6. What if the product has quality problems?
In case of non-human factors, the company shall compensate the customer according to the ex-factory price.
7. What should I pay attention to when storing the product?
Store in dry, ventilated and clean indoor warehouse.
4. Do you provide sample service? yes.
5. What are the modes of transportation: sea and air.
6. What if the product has quality problems?
In case of non-human factors, the company shall compensate the customer according to the ex-factory price.
7. What should I pay attention to when storing the product?
Store in dry, ventilated and clean indoor warehouse.
