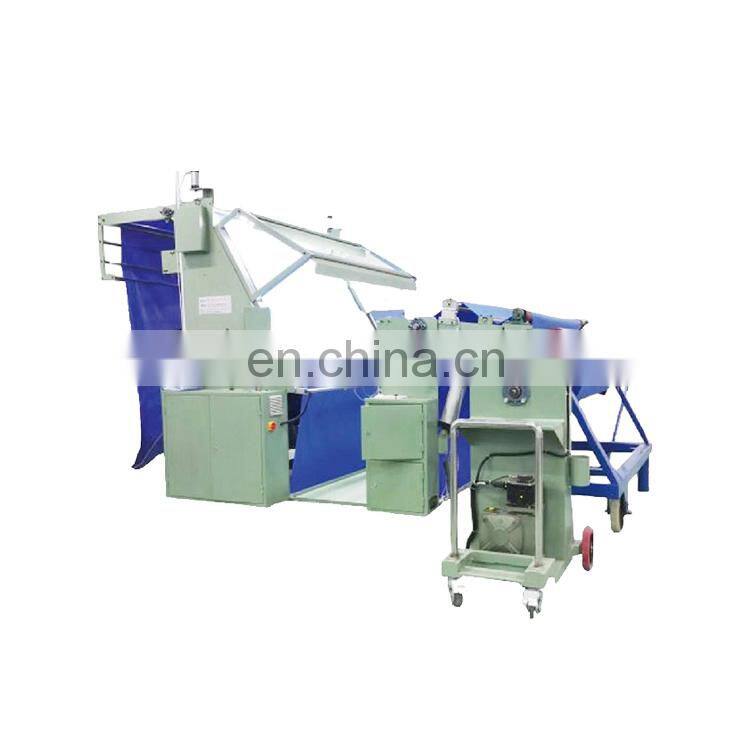

TC-A Large Package Cloth Inspecting/winding Machine
Application:
This machine is suitable for high-grade fabrics and special texture fabrics of the textiles mill, yarn-dyed fabric mill and dyeing mill. Under the traditional operation way it is easy to produce quality problems such as wrinkles, take off etc.This machine can improve all these above.
Technical Feature:
Drivers A-shaft rotation by power device to fabric synchronously constant tension test (tension control using winding diameter according to ratio decreasing)
1,PLC complete control operation process of the machine
2,Stepless speed-regulation control to inspecting/winding speed
3,Automatic edge alignment and cloth winding is tidy, corrective adopts hydraulic, accuracy of edging ±5mm winding
4,Imported electronic code counter(can be modified, fixed length, meter counting, code and accumulative function, and can display inspecting /winding speed)
5,Automatic stop device when without cloth
6,Connect with computer function is available
Technical Parameters:
|
1,Effective width |
1800mm |
|
2,Dimension |
4480(L)*2650(W)*2780(H)mm |
|
3,Power of main motor |
4.5KW |
|
4,Weight |
2900KG |
