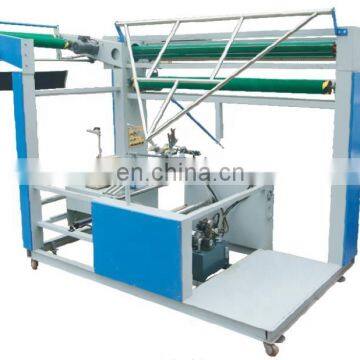

OW-B Open-width Fabric Inspection Rolling Machine
Technical Features:
1,Suitable for check the high-quality open-width knitted fabric, and circle winding package used
2,Synchronous control cloth and winding speed, make the cloth inspecting process under tensionless condition to completed, make the pull and tension to the lowest, the phenomenon of cloth shrinks can’t occur
3,Can direct control the forward or backward of the fabric by hand
4,Taiwan hydraulic automatic tracing edge alignment device can reach to cloth winding accurately
5,At the tilting angle 55~60 degrees to horizontal cloth inspecting within inspection area, it’s own two-way lighting(up and down),realize to favorable lighting and inspecting environment
6,Equipped with electronic length counter(show length and code),which can count length accurately
7,Continuous variable speed
Technical Parameters:
|
1,Max. diameters of winding cloth |
400mm |
|
2,Speed of cloth winding |
0~80yard/min |
|
3,Operate area |
1350(L)*2950(W)*2200(H)mm |
