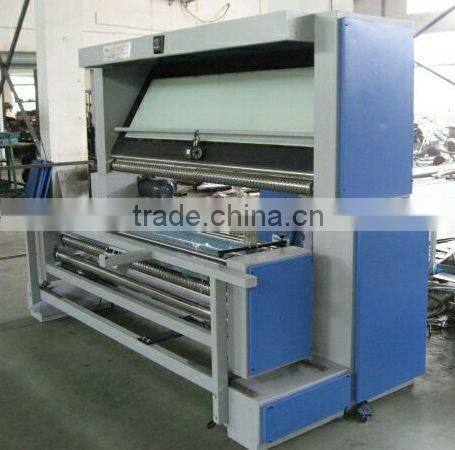

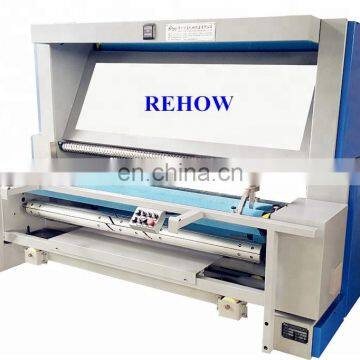

RH-A02 Fabric Inspection Rolling Machine With Weight Device and Cutter
fabric inspection and rolling machine/ fabric roll checking machine/automatic fabric inspection
Technical Features:
1,Suitable for inspecting and rolling all kinds of finished grey cloths(including knitted and shuttle-woven grey cloths)
2,Infrared photoelectronic automatic oil hydraulic edge aligning, cylindrical rolled cloth is in good trim
3,Rolling tension is adjustable according to deferent cloth categories, suitable for rolling loose reels
4,Equipped with a digital code counter or electronic length counter, precisely counts cloth length
5,Variable frequency speed control, positive and reverse revolve and infinitely variable speeds, suitable for reeling and unreeling cloth inspection
6,Extra optional cutter and electronic pound selection devices are provided for different technical requirements
7,Specifications are selectable from 1800mm to 3800mm
Technical Parameters:
1,Working width |
1800mm~3800mm |
2,Max.Rolling Diameter |
350mm |
3,Cloth inspection speed |
0~80m/min |
4,Power |
Main motor 1.5KW Edge-aligning motor 0.75KW |
5,Edge-aligning accuracy |
±5mm |
6,Dimension |
1300(L)*2500(W)*1950(H)mm |
