RH-2100B Automatic Edge-align Plaiting Machine
- shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | REHOW | Place of Origin | China | |
| Certification | CE Marking | |||
| Warranty | 12 Months | Weight | 1500kg | |
| Dimension(L*W*H) | 2780*2690*2720mm | Condition | New | |
| Voltage | 380V | Automatic Grade | Automatic |
PE film package">plywood package
PE film package
Product Description

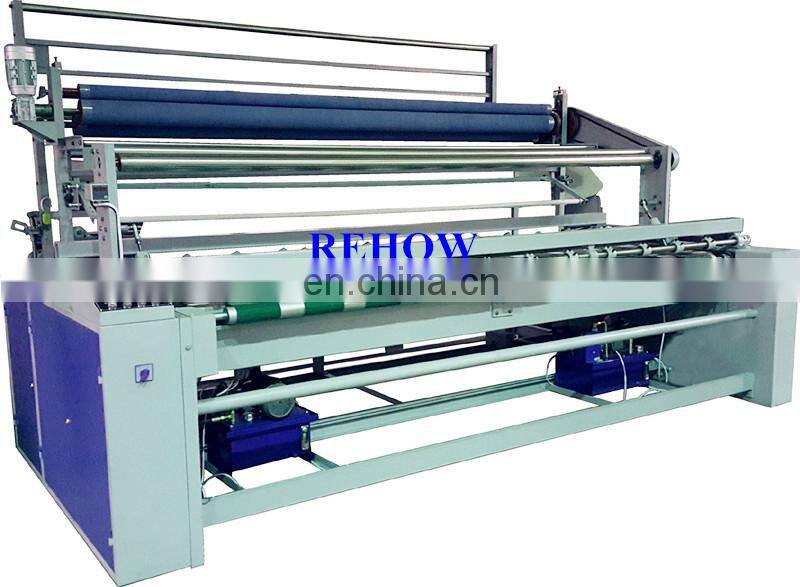

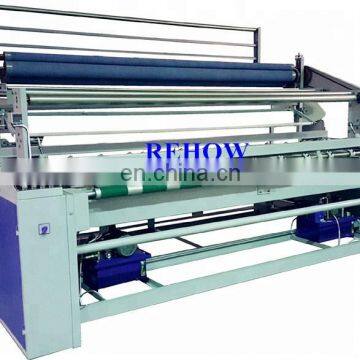

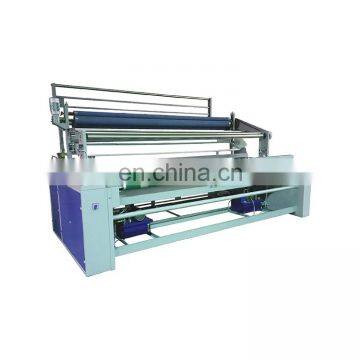

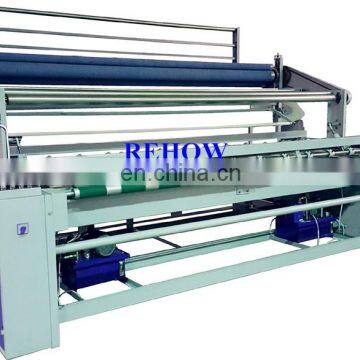

RH-2100B Automatic Edge-align Plaiting Machine
Purpose
This machine is designed for plaiting Polypropylene woven cloth. The materials can be processed from both folded and lapped forms. It is fully change the traditional habit of manual folding.
Technical Feature
1. The use of infrared photoelectric device, which made the fabric edges neatly
2. Frequency speed control: cloth folding speed can be controlled continuously 0~60 meters
3. Use of non-contact, electronic sensor-counter, counting accurate and reliable
4. Equipped with two sets of automatic edge control devices to control fabric edge
5. Highly automaticfeatured in advanced workmanship, easy operation, low power-consumption and high efficiency
Technical Parameters
|
Normal width of the machine(mm) |
1800 (customized) |
|
Speed of folding(m/min) |
0~60(can be varied) |
|
Folding Height |
200mm |
|
Size(length*width*height)mm |
2780mm*2690mm*2720mm |
|
Main Motor |
inverter 3HP*4P*1set |
|
Weight (Kg) |
1500 |
Company Profile
Our company has been able to independently develop and manufacture products as per various specifications, for example, sewing machines with the automatic folio function, tension-free cloth inspecting machines, cloth winding machines, scotching machines, slitting machines and every kind of dyeing and finishing machine.
