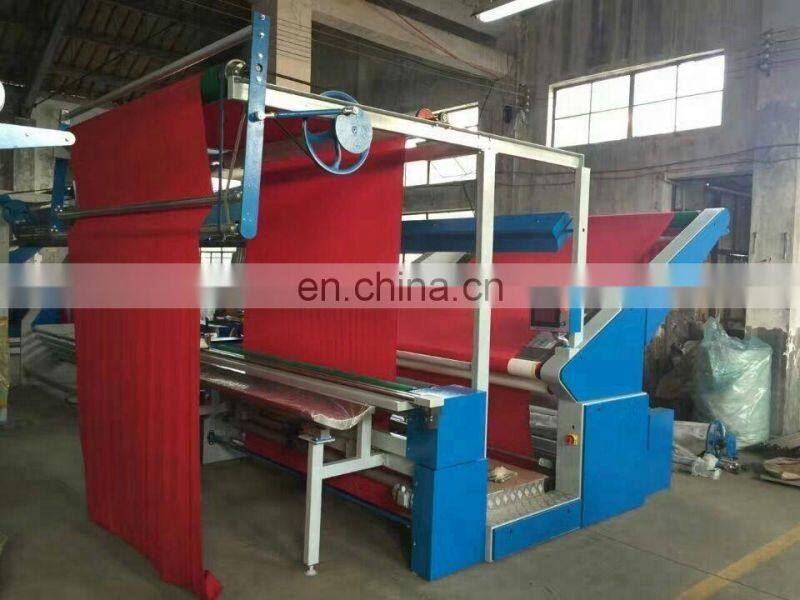

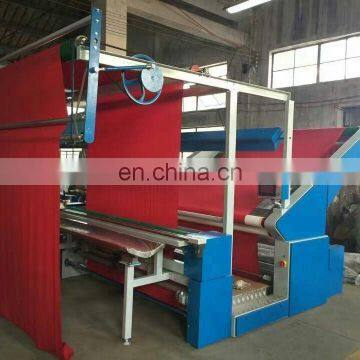

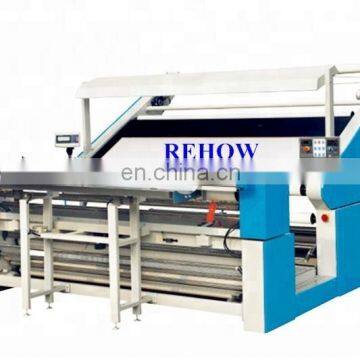

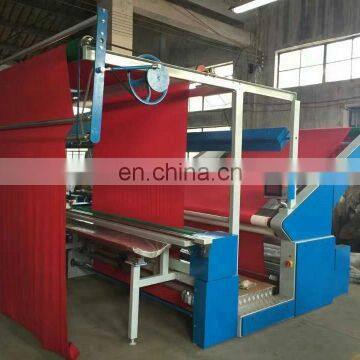

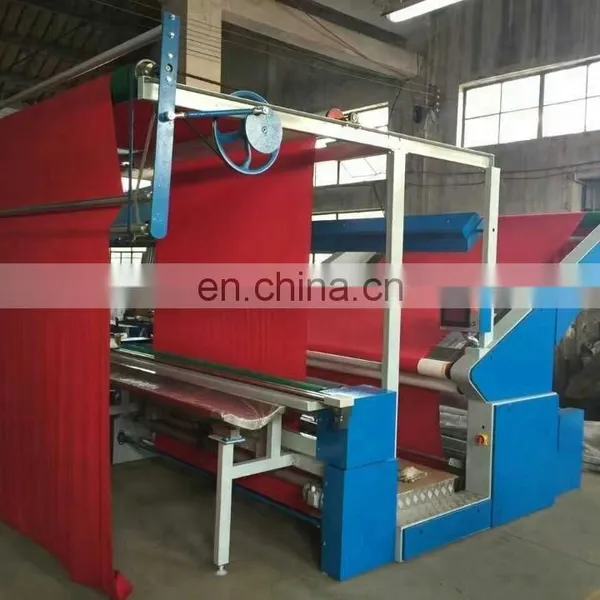

OW-02 Open-width Knitted Fabric Tensionless Inspection Machine

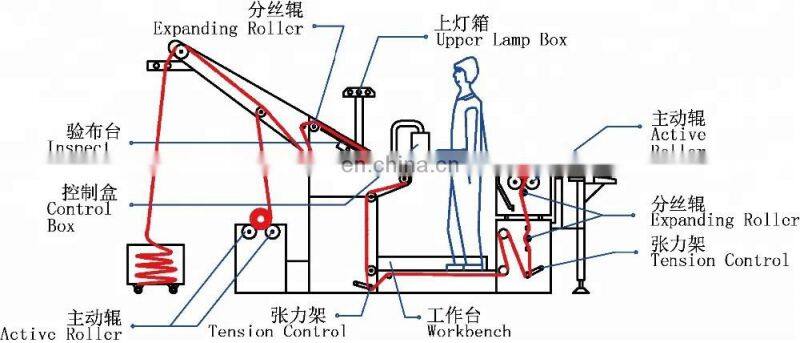

Technical Features:
1,This machine is designed for inspecting high quality open-width knitted fabric
2,Open-width entering device with fabric tighten frame
3,Rolled fabric entering device
4,Tension pole adjust the speed in forward and backward, cause the fabric inspection finish without tension
5,Inspection platform with lighting box installed, the diagonal design makes the inspection work easier , more simple, and increase work speed
6,Electronic length calculator calculate the length of the fabric accurately
7,Electric eye tracing edge device, cause the fabric upload neatly
8,Work platform installed between fabric inspection platform and uploading device
9,Machine top lighting device
10,Double roller uploading device
11,Fabric end automatic stop device
12,Blowing device
13,Shape fabric rolling stretching roller, stretch out the fabric
Technical Parameters
|
1,Standard work area |
2300mm,2500mm,2800mm |
|
2,Speed |
0~60 m/min |
|
3,Size |
3600(L)*3000(W)*2000 (H)mm |
|
4,Total power |
2.5KW |
|
5,Weight |
1500KG |
Additional options
|
1,Automatic cutting device |
2,Automatic weight up device |
|
3,Defect fabric edge labeling device |
|
|
4,Fabric inspection recording software |
|
|
5,Spray device |
6,Vertical fabric shaking device |
