Automatic Pre-folder and Lock Bottom Paperboard and Corrugated Box Folding Gluing Machine
- Ningbo port
- T/T Credit Card
You May Like
-
Aluminum Foil Cap Induction Seal Liner Die Cutting Machine
-
Promotion Price Hot Sale Peru Size Customizable Water Resistant Prevent Birds Fruit Growing Grape Protection Paper Bag
-
HAS Video Automatic Corrugated Coffee Cup Sleeve Folding Gluing Machine,coffee Sleeve Making Machine 210-600gsm Cold Glue
-
2014 HOT SALE Full Automatic V Bottom Paper Bag Folding Gluing Machine
-
Paper Lunch Box Meal Box Forming Making Machine
-
Paper Food Box Forming Machine
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Model Number | 1650 MODEL | Certification | CE Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas | |||
| Warranty | 1 Year | Weight | 2500KG | |
| Dimension(L*W*H) | 11000x1450x 1400mm | Condition | New | |
| Voltage | 380V | Computerized | No |
seaworthy packing
Product Description

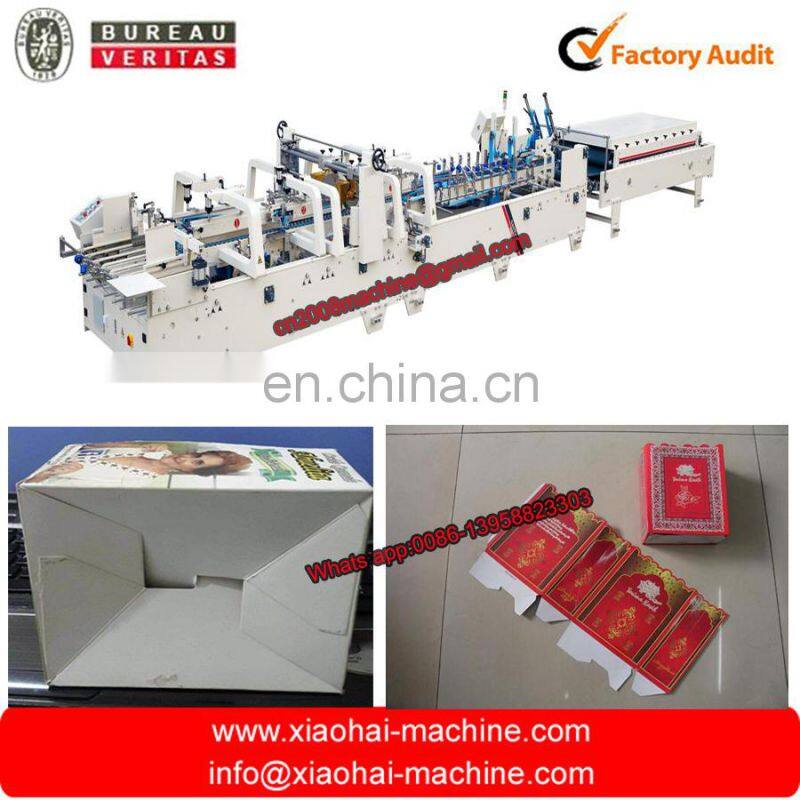

Automatic paper folder gluer with Pre-fold and crash lock bottom
1.Characteristics:

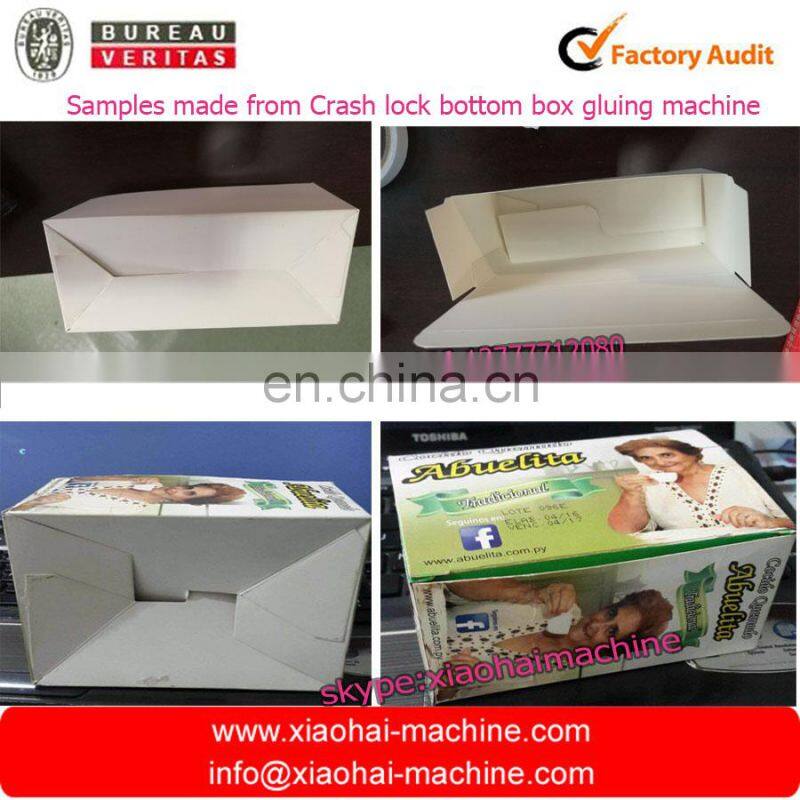

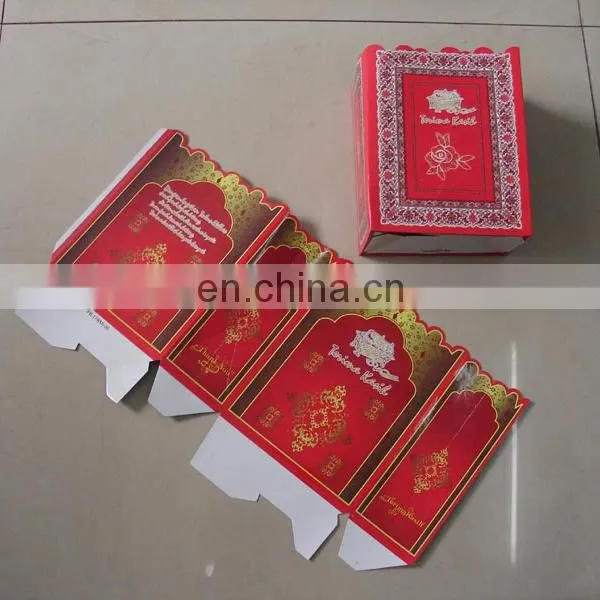

It is a new economical High speed and crash lock bottom automatic folder gluer .The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. It is more economical, more practical models. Professional for the wine box ,gluing side keep straight no inclined , sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom . Also be used for various types of crash lock bottom boxes, medicine boxes, and cosmetic boxes and do simple box.
2.Main technical parameter:
Used material : Carton board B , C , E , F flute and print board .
Paper weight : 200 ~ 700gsm ( according to the paper width )
Power capacity: 11KW 380V 50HZ
Overall size (mm): 11000 x1450 (1650)(1850)(2100)x 1400
Weight (kg): 2800 (3200)(3600)(4200)
Machine speed: 0~220M/min

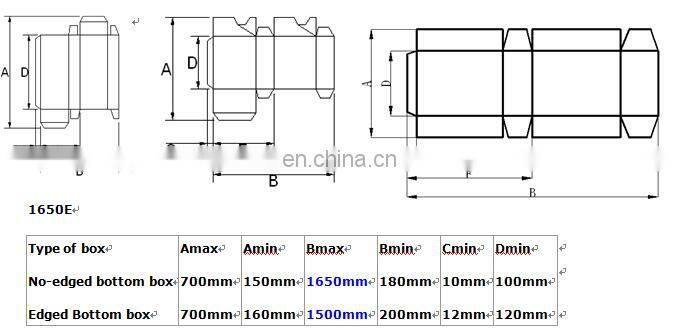

3. Paste box size
