Automatic thermal paper slitting machine
1.Features:
The Automatic thermal paper slitting machine mainly is suitable for slitting all kinds of FAX PAPER,
CASH REGISTER, COMPUTER BILL, MEDICAL RECORD PAPER,POS PRINTING PAPER,
ATM REEL PAPER, film and self adhesive paper etc.
It is the most advanced numerical control cash register slitting equipment in China.
2. Advantages:
1)surface rewinding way, automatic replicate, insert reel
2)Controls bag length through the human-machine interface.
3)Touch Screen (PLC ) for calculating parameters.
4)Unwinding is used to automatic loading system
5) tension force is controlled by the Magnetic Brake
6)Automatic Lift System
3.Technical Parameters:
| Max width | 900mm |
| Max unwinding diameter | 1000mm |
| Reel paper core inner diameter | 76mm(3") |
| Standard Slitting width | 28,30,57,65,75,80... |
| Max rewinding diameter | 160mm |
| Slitting Speed | 168m/min |
| total power | 4.5kw |
| Power supply | 380,50hz |
| Machine Size | 2.5*2.1*2.1m |

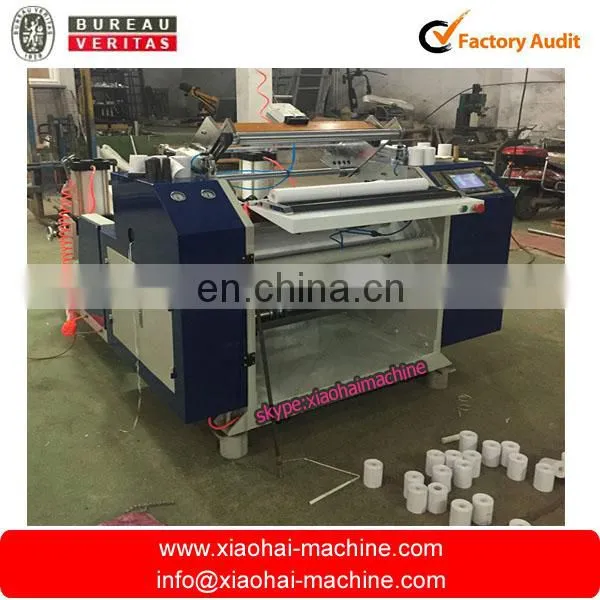

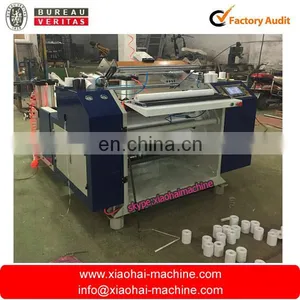

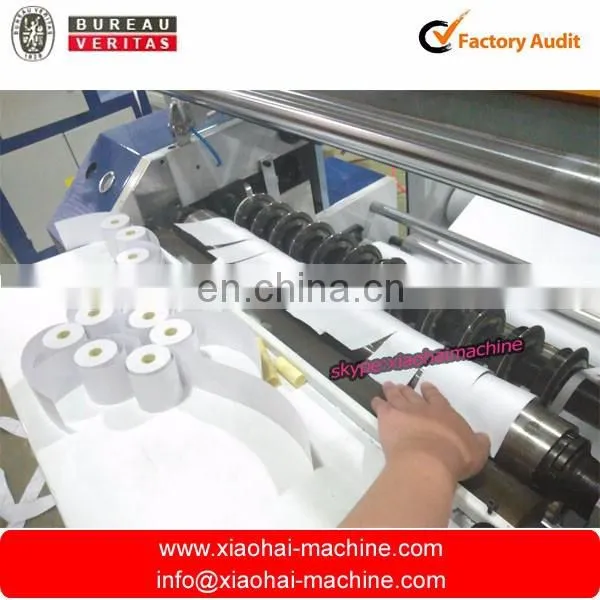

4.Sample Pictures:
Our engineer can be available to service machinery overseas.
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries
2)Machines with good quality in one year, life-long maintenance
3)We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
