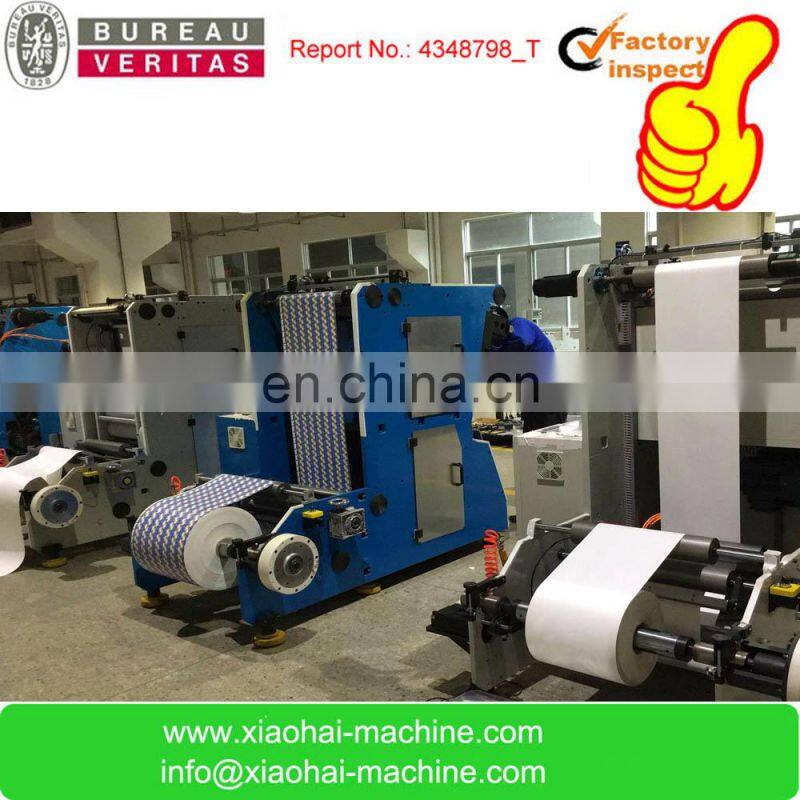

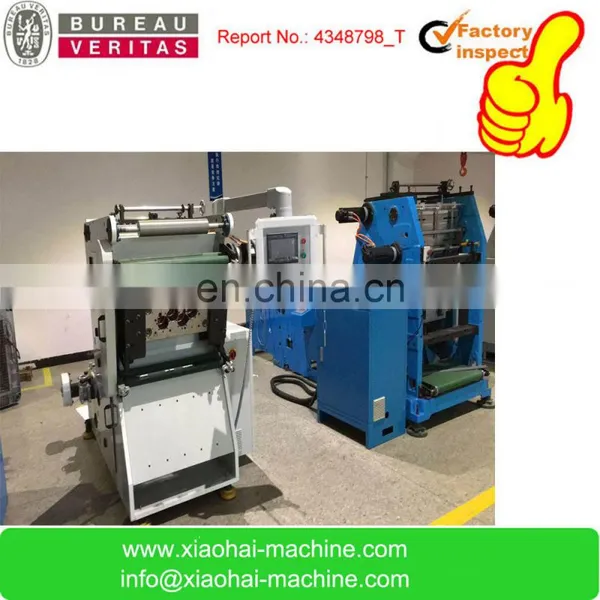

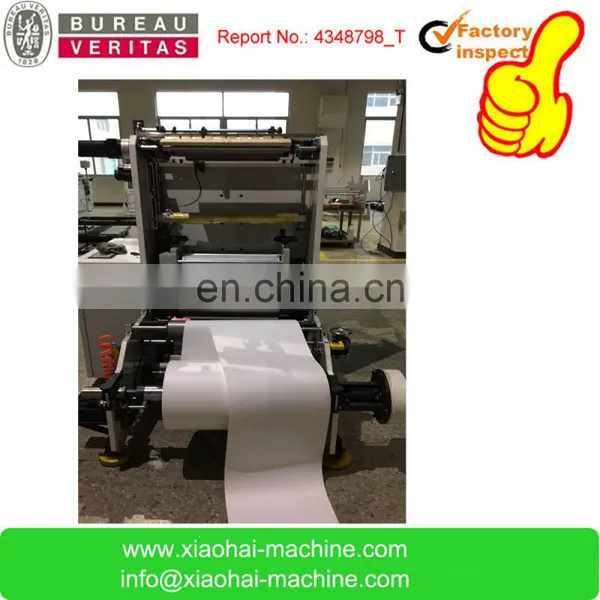

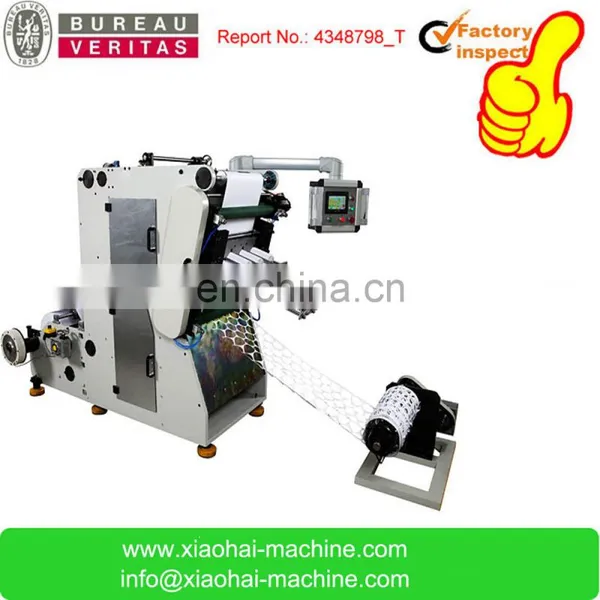

Aluminum Foil Die Cutting Punching Machine
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XIAOHAI
Place of Origin:
Zhejiang, China
Model Number:
320 model
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paper Meal Box Forming Making Machine PriceUS$ 10,000 - 12,000MOQ: 1 Set -
Best Quality Professional Paper Box Folder Gluer Gluing MachineryUS$ 1 - 2MOQ: 1 Set
-
HAS VIDEO Automatic Envelope Die Cutting Machine, Hydraulic Cutting MachineUS$ 4,500 - 6,000MOQ: 1 Set
-
Automatic French Fry Box Folder Gluer Machine / Automatic Crash Lock Bottom Folding MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Crash Lock Bottom Corrugated Box Edge Gluing MachineUS$ 1 - 2MOQ: 1 Set
Brand Name
XIAOHAI
Place of Origin
Zhejiang, China
Model Number
320 model
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Product Description

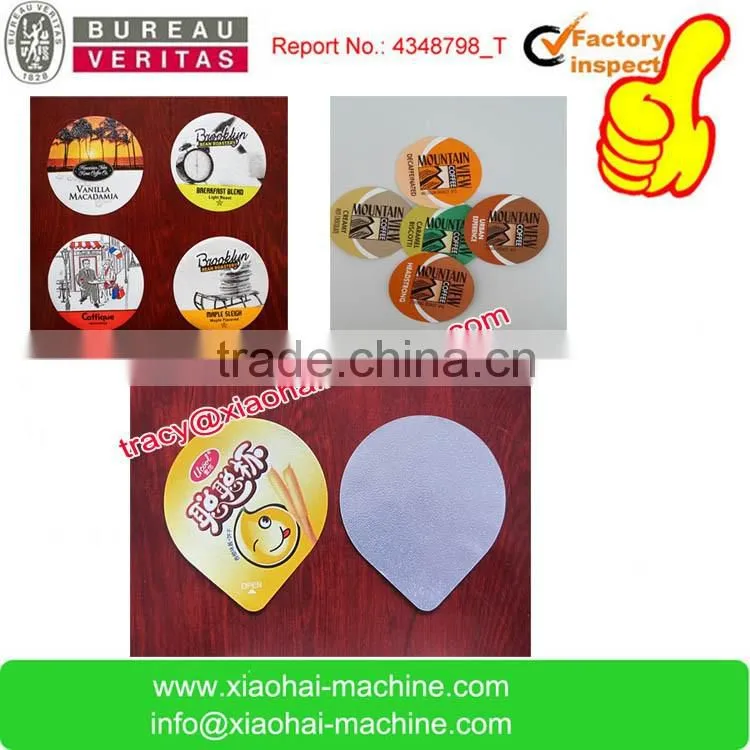

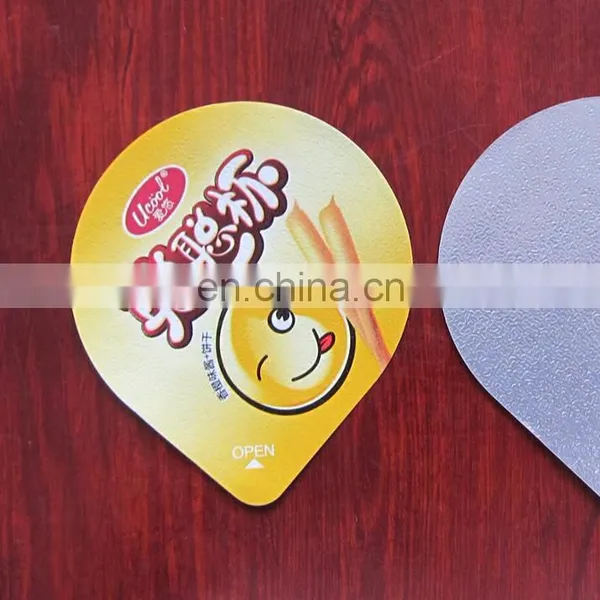

Aluminum foil lids punching and embossing machine for yogurt cups
Application:
The machine is used for aluminum foil stamping and embossing, and used widely in multi working position registering and die cutting process, such as beer mark, seal cover and other shaped marks.
Performance and feature:
1.a new generation of marks stamping machine developed and designed by our company on the base of absorbing foreign advanced technology
2. adopts numerous advanced pneumatic and servo driving processing technology.
3.it is complete in functiona and high in automation
4. simple operation and safe reliable
5. die cutting, hot stamping and pressing convex on different materials
Technical Parameters:
Material width 450mm
Max. unwind diameter Φ500mm
Max. speed 120times/min
Register accuracy ±0.2
Thickness of suitable material 0.035-0.2mm(aluminum foil/plastic film/paper
Voltage 380V/AC
Weight 1500KGS
Dimension (L*W*H) 2500*1500*1750mm
Pls kindly contact us if your demand data is different with ours, we can customize the machine according to your requirement within our ability.
