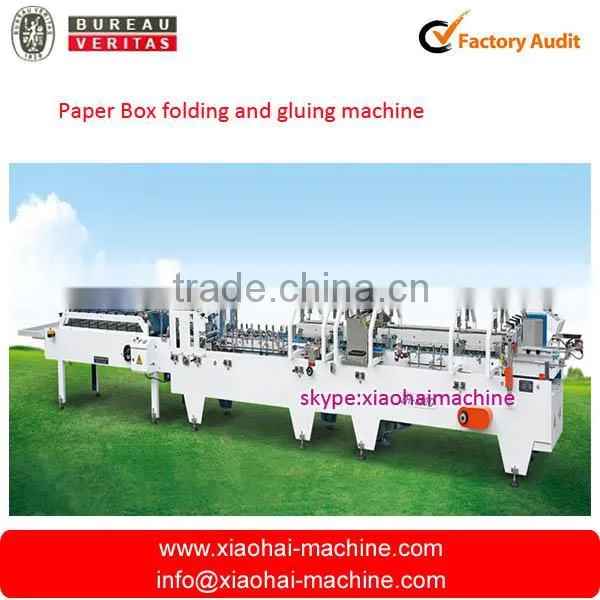

Crash Lock Bottom Corrugated Box edge gluing machine
Features:
1.adds the upper belt on the folding unit to improve the stability in box movement.
2.Adds the pre-press section before the press section to improve the stability and smoothness in box movement.
3.Pressing unit has separate motor to control speed. It has auto trombone control function(only when the box coming, the pressing unit works)
Technical parameters:
Line speed 0~220m/min continuous adjustment
Suitable paper thickness 210~600g/m² paperboard
Box Forming Either side folds,either sides pre-fold and crash lock bottom
Paperboard Feeding Continuous automatic
Way of folding first,second and fourth line fold 180°,third line fold 135°
Glue Type Cold Glue
Needed power AC220V 3.7 KW single phase
Weight 2000KG
Overall Size 8500×900×1300mm
The Counting range 0~999999(full automatic)

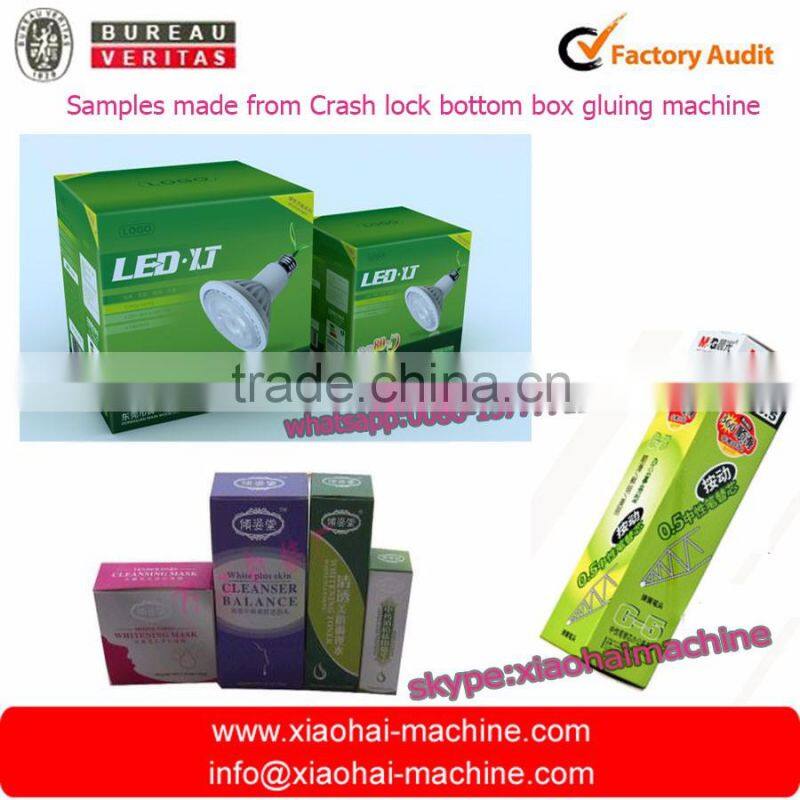

Suitable box types:
Machine working process:
