paper meal box forming making machine price

 Description:

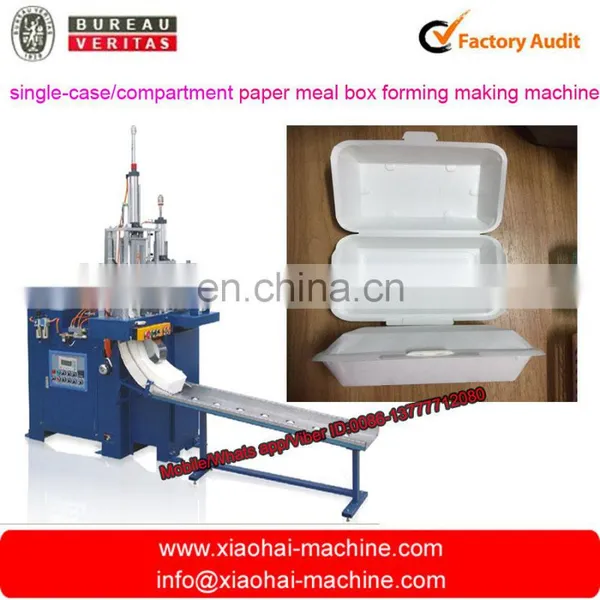

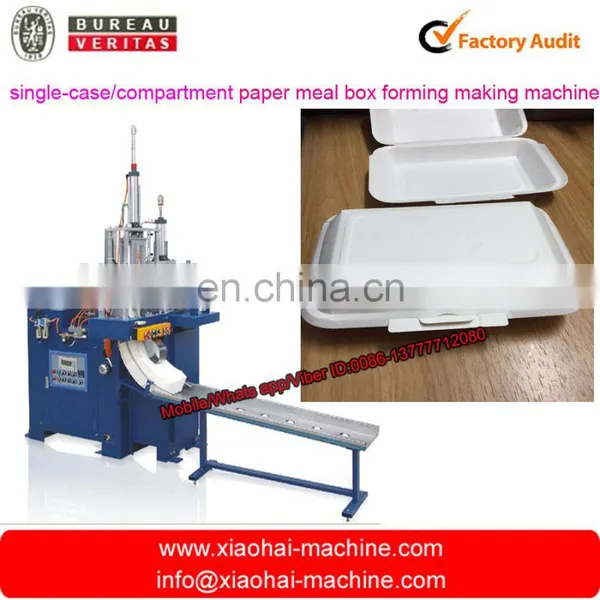

M-A Paper Meal Box Forming Machine is an automatic machine with the advantage of fast speed, easy operation and maintenance. It adopts ceramic hot air (hot air generator) sealing the box 4-corner, which makes it is available for single PE coated paper and double PE coated paper.

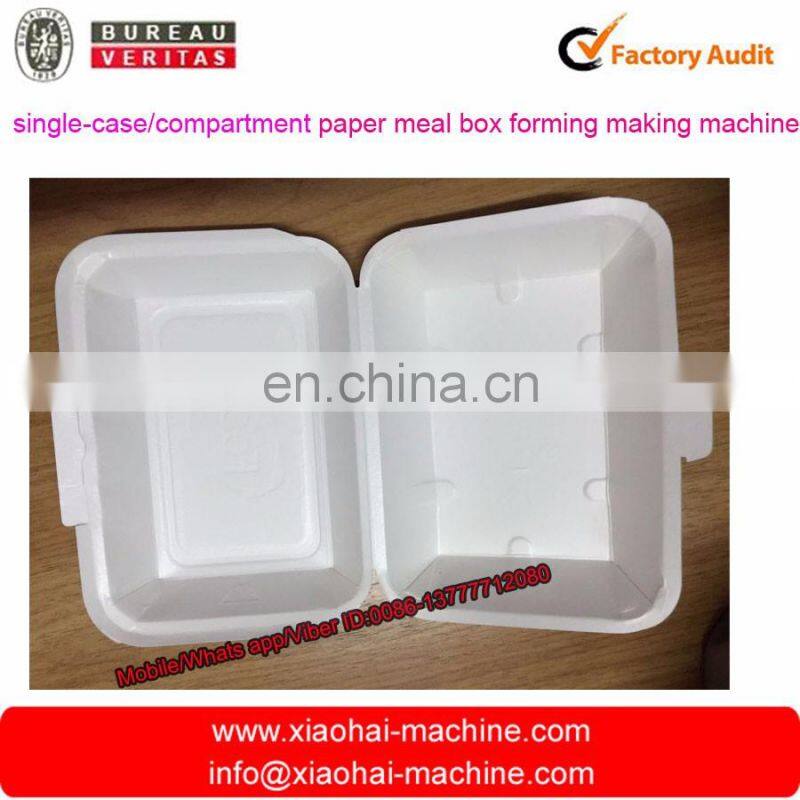

It makes single-case/compartment paper meal box after running the whole procedure of auto paper feeding, heating (hot air, by hot air generator) and forming shape (seal the 4-corner of the lunch box), auto transfer to the connection.
Easy exchange molds to make different size paper lunch box, take-away box, paper meal box, paper food container, paper food case, paper food box, paper food pail, paper food tray, paper chip tray, etc.

Technical Specification
Paper Lunch Box Size : Regular size (mold exchangeable);
Raw Material : One-side or two-side PE/PLA film coated/laminated paper;
Suitable paper weight : 150~450gsm;
Speed : 40~50 boxes/minute; (about 2400~3000 box/hour);
Total Power : 5 KW;
Power Source : 220V 50Hz or other required;
Total Weight : 700 KG;
Package Size : (L x W x H) : 1650 x 1150 x 2100 mm;
Working Air Source : Air Pressure: 0.8Mpa,
Air Out-put : 1 m3/minute; (Need to buy air compressor)
Available to design special machine or mold against the client requirement.

1. Adopt ceramic hot air (install hot air generator) to sealing the box 4-corner,
2. Available for 1PE and 2PE paper,
3. Import air-cylinder (air piston), quality valve to keep the machine fast speed;
4. Only making single-case/compartment box/tray.

* Note:
Use one-side PE coated paper or two-side PE coated paper, the mold a little different in the corner welding;
Use one-side PE paper, the paper cutting design different at the corner.
