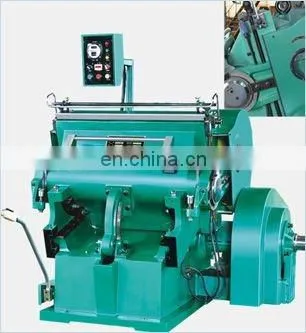

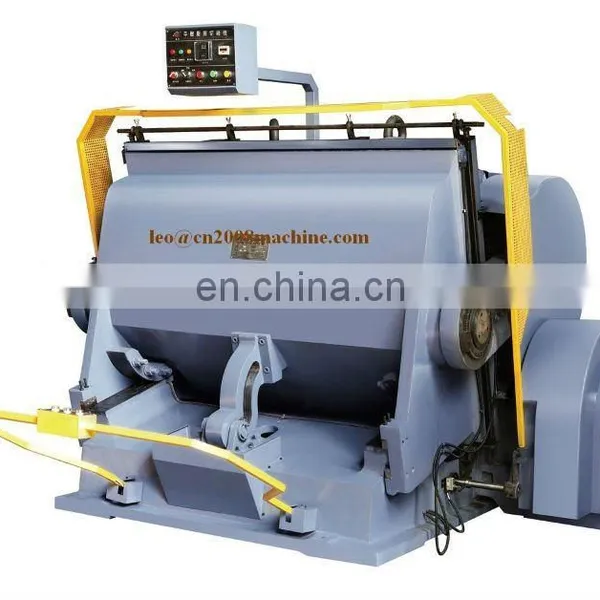

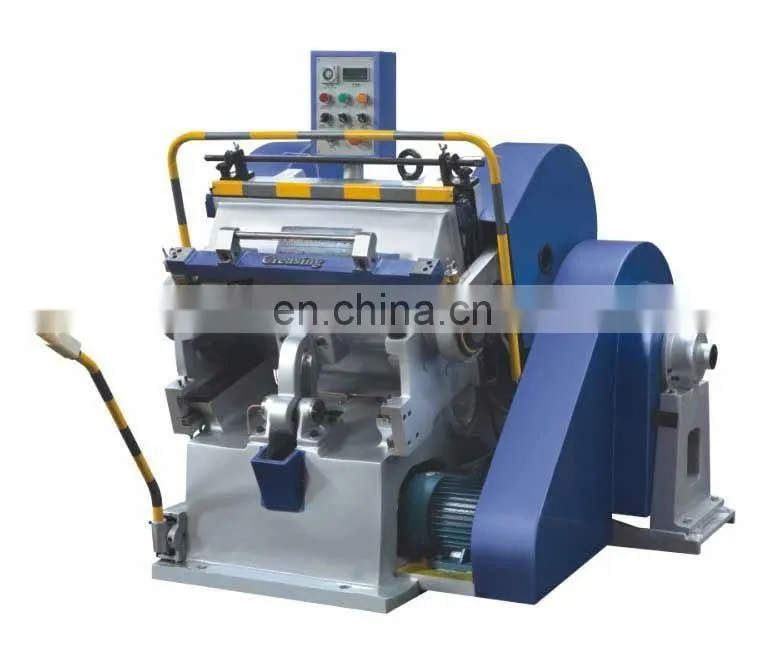

Manual Die Cutting Machine/Creasing and Diecutting Machine/Creasing and Hot Cutting Machine
1.Usage
This Wedding Invitation Card/Envelope bag Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather (Such as Brands,Invitation letters,Paper File,Cartons,Bags,Mats,Namecars and so on) ,applicable to printing packaging decoration and plastic industries.Machine is characterized by compact structure,fine workship,big pressure,high precision and easy and reliable operation,etc.
2.Features
*Use high level material integral casting for high intensity machine body.
*Single plate electromagnetic clutch is sensitive and reliable safety
*Operational height is reasonable arranged.the opening angle of moving bed is optimum
*Electrical apparatus is designed in conformity with IEC standard safety system
*Single pressing,continuous pressing,adjustable delay pressing available
*Reliable performance of safety protection system
*Optioanl:
1)Inner and outer movable frame can be fitted
2)automatic oil pump matching.
3.Technical parameter:
Model |
Inner Chase Size |
Speed |
Max.Rule Length |
Motor Power |
Machine Weight |
Packing (overall) Dimensions |
ML750 |
750*520mm |
25±2 |
<15m |
2.2kw |
1700kg |
1780*1590*1450mm |
ML930 |
930*670mm |
23±2 |
<25m |
4kw |
3000kg |
1670*1670*1630mm |
ML1100 |
1100*800mm |
20±2 |
<30m |
4kw |
4500kg |
1900*1780*1700mm |
ML1200 |
1200*830mm |
18±2 |
<32m |
4kw |
4000kg |
2020*2020*1950mm |
ML1300 |
1300*920mm |
18±2 |
<38m |
5.5kw |
6500kg |
1920*2140*1800mm |
ML1400 |
1400*1000mm |
17±2 |
<38m |
5.5kw |
7200kg |
2100*2400*1930mm |
ML1500 |
1500*1050mm |
14±2 |
<40m |
5.5kw |
8500kg |
2010*2480*1960mm |
ML1600 |
1600*1250mm |
16±2 |
<43m |
11kw |
11500kg |
2170*2560*2230mm |
ML1700 |
1700*1400mm |
16±2 |
<50m |
11kw |
14500kg |
2240*2800*2130mm |
ML1800 |
1800*1280mm |
16±2 |
<50m |
11kw |
14200kg |
2180*2760*2250mm |
ML1800A |
1800*1400mm |
16±2 |
<52m |
11kw |
15500kg |
2240*2800*2130mm |
ML2000 |
2000*1400mm |
16±2 |
<58m |
11kw |
15500kg |
2270*3100*2150mm |
ML2500 |
2500*1400mm |
13±2 |
<75m |
18.5kw |
19000kg |
2300*3600*2150mm |
4.SAMPLES:
