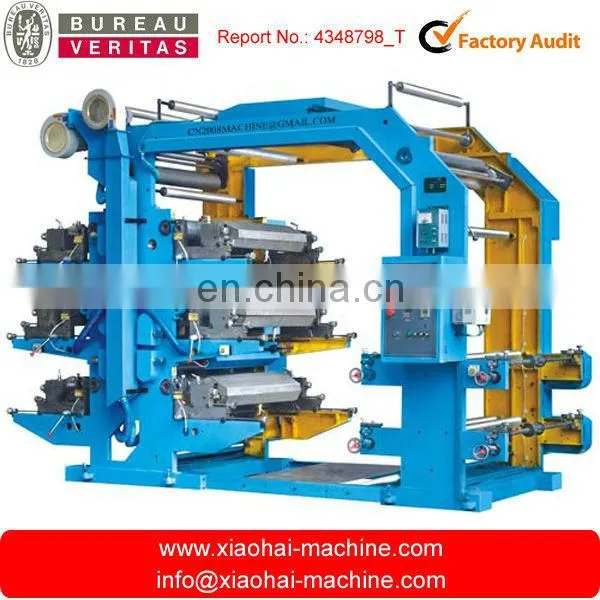

Multicolors Plastic bag Printing machine
Usage:
It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.
Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Specification:
|
Model No. |
YT-6600 |
YT-6800 |
YT-61000 |
|
Max.Web Width |
600mm |
800mm |
1000m |
|
Max.Effective Printing Width |
560mm |
760mm |
960mm |
|
Range of Repeat Printing Length |
191~914mm |
191~914mm |
191~914mm |
|
Max.Diameter of Roll Material |
450mm |
450mm |
450mm |
|
Printing Speed |
5-50m/min |
5-50m/min |
5-50m/min |
|
Plate Thickness(Both side adhesive tape included) |
2.38mm |
2.38mm |
2.38mm |
|
Total Power |
15kw |
19.5Kw |
24Kw |
|
Weight of Machine |
3500kg |
4200kg |
5000kg |
|
Machine Dimension |
4300×1700×2950mm |
4300×1900×2950mm |
4300×2100×2950mm |
We provide series printing and packaging machines from single machine to whole line project, from existing products to manufacturing machine according to buyer's drawing or requirement, we not only sell our own products, but also provide extensive machines for printing and packaging industry, if you found the type is not listed here, please just send us your requirement. we will choose right model machine for you....
Customer Bought This Machine,Also Have Interesting To Buy Following Machines:
1. 4 colors flexo printing machine
2. 2 colors flexo printing machine
3. high speed 150meter wide web flexo printing machine
4. flexo plate making machine
5. flexo cylinder plate mounter machine
