Air Column Cushion Bag Making Machine For Bottles , Ink Cartridge

inflatable air bubble bag making machine

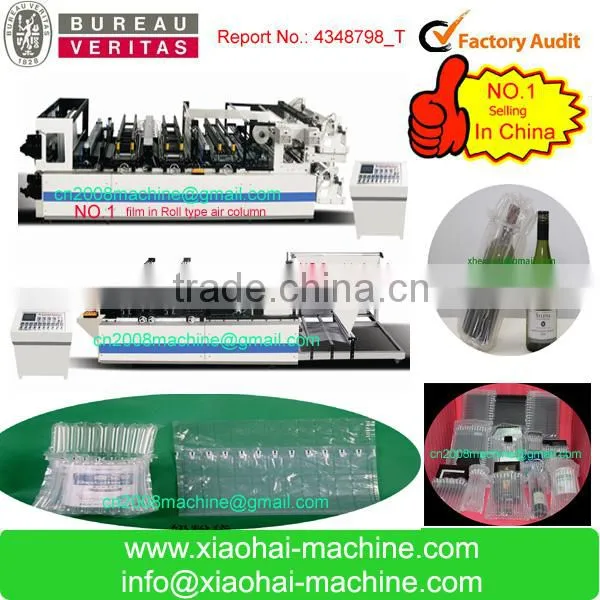

NO.1 Model QZ-1200 (roll type)

Technical Parameters:

Membrane Roll Size: Max. roll width: 1250mm

Max. roll diameter:500mm

The Highest Speed of Column Pressing:

18 cycles/min.(Speed adjustable)
20 mm column- 14 columns per pressing
30 mm column- 10 columns per pressing
40 mm column- 7 columns per pressing
60 mm column- 5 columns per pressing
The Max. Width of Pressed Column: 1220mm



Column Pressing Parameters: Realized via PLC control panel for column pressing speed, welding temperature, pressing time, standards compensation, etc.
Power consumption: 15.2 kw
Air supply: 0.68MPA
Weight: 2800kg
Dimensions: 5320 X 1800 X 1680 mm



inflatable air bubble piece bag cutting machine



NO.2 QZD-800 ( bag piece by piece)
Membrane Roll Size:
Max. roll width: 1250mm
Max. roll diameter:400mm
Speed : 24-35 pcs/min.
Max. Bag length: <900mm
Max. Bag width: <750mm

Bag Making Parameters: Realized by PCL control panel for setting pressing time, pressing temperature, standards compensation, roll-unwinding, automatic variation correction system

Power consumption: 2.7 kw
Air supply: 0.65MPA
Weight: 1800kg
Dimensions: 4400 X 2400 X 1480 mm
