E.P Brand Factory Price Good Performance Vehicle Production Line Conveyor Chain From China Quality Manufacturer

FOB Price

US$ 30,000 - 30,000 / Set

1 Set(Min. Order)

Port Qingdao Ningbo Tianjin Shanghai Guangzhou etc
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	E.P	Place of Origin	Henan, China
Certification	ISO9001
Dimension(LWH)	Consult
Voltage	220V/380V, 220V/380V	Structure	Conveyor System
Condition	New	Power(W)	0.4kW - 22kW

Product Description

Introduction

The task of automatic car assembly is to assemble all kinds of components such as engine, transmission and other parts on the car body base according to certain assembly technology requirements and assembly relations, to form a complete and qualified auto cars.

Automobile assembly line is generally an organic whole composed of conveying equipment and professional equipment.

The Function of Assembly in Automatic Car Production

*Final Inspection of Manufacturing Quality of Components

* Find out weak links in production

* Improve the quality of cars

Conveyor equipment includes air suspension and ground transportation;Professional equipment includes lifting, turning, pressing, heating or cooling, testing, bolt and nut fastening equipment etc.

Conveyor equipment: It is mainly used in automobile assembly line, assembly line of all components and conveying of large assembly on line. It can be divided into assembly line, chassis assembly line, engine assembly line, cab trim line, tire assembly line, automobile door assembly line and turnover line from each sub-assembly line to assembly line.

Sub-assembly and on-line equipment: the engine, front axle, rear axle, cab, wheels and other assemblies on-line sub-assembly and the transportation process to the assembly line after all parts are assembled, as well as the transportation and hoisting equipment used in the corresponding workstation.

Various oil filling equipment: including fuel, lubricant, cleaner, coolant, brake fluid, refrigerant and other automobile assembly line filling equipment.

Ex-factory Inspection equipment: including front-end test-bed, side slip test-bed, steering test-bed, headlamp detector, brake test-bed, speedometer test-bed and exhaust analyzer.

Special equipment: car body marking machine, thread fastening equipment, special equipment for tire assembly, automatic glue coating machine, hydraulic bridge on-line car.

Processing Steps

Working principle of the Car Assembly Line

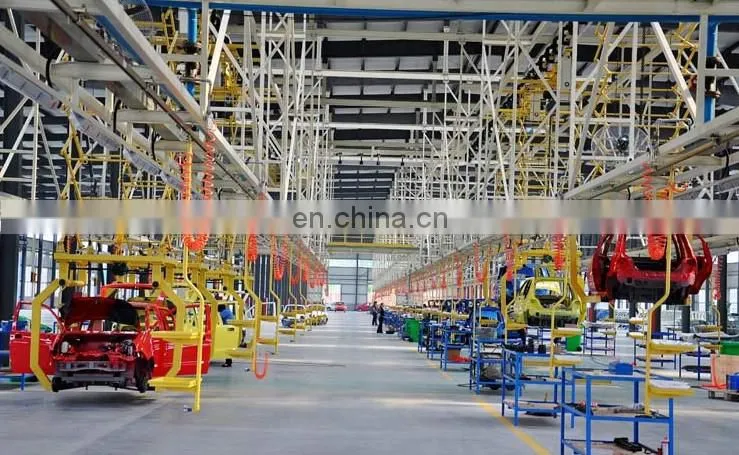

Automobile assembly line is composed of interior decoration line, chassis line, exterior decoration line, door line, detection line, rain line, etc.

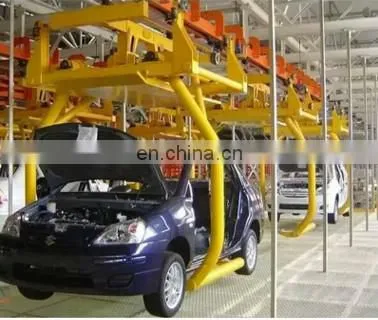

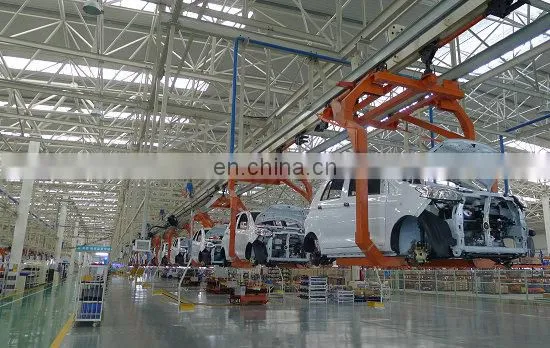

1. General Assembly Interior Trim Line

From the painting workshop into the assembly, assemble carpet, wiring harness, interior accessories, seals, etc.
Two-way liftable large flat plate realizes flexible production of multi-platform, and further optimizes the ergonomics through the free lifting of workstation height.

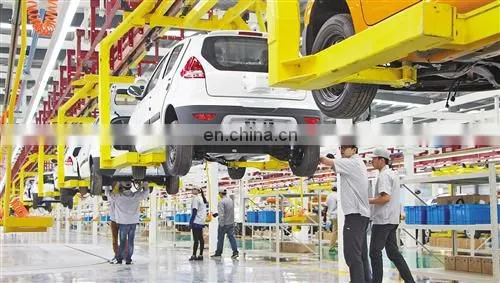

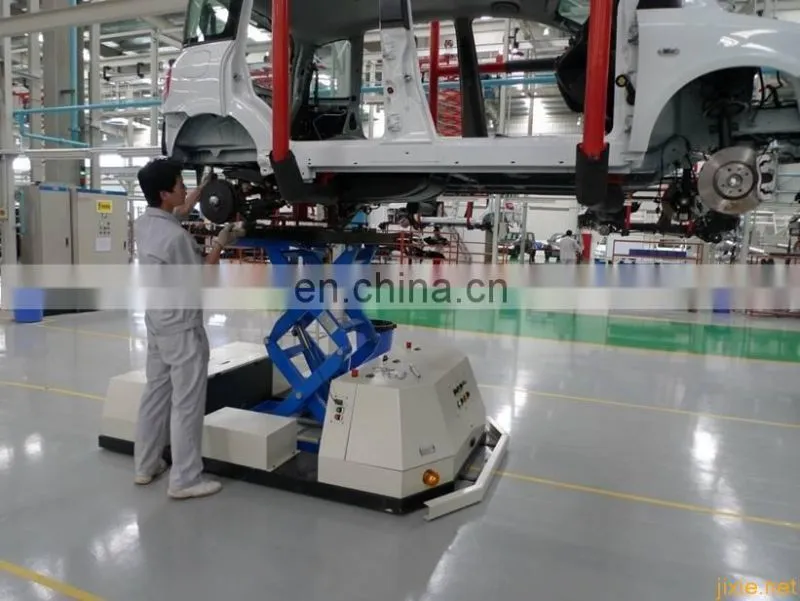

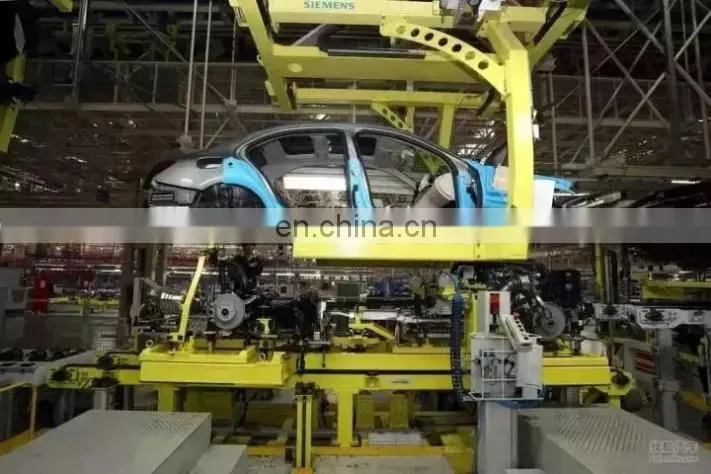

2. Assembly Chassis Line

Main assembly chassis parts (suspension, wheel), exterior accessories (front and rear protection) and so on.

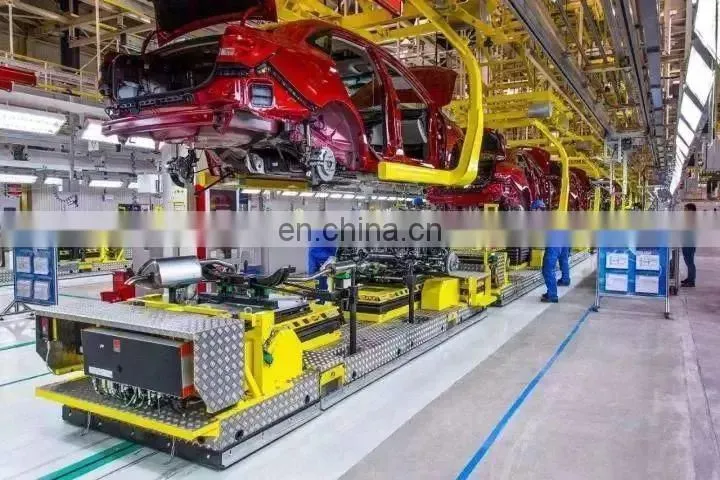

Using modern EMS + VAC transport equipment, precise synchronization is achieved in the assembly process, and precise positioning and assembly of the body and chassis are realized. The assembly accuracy can reach 0.1mm.

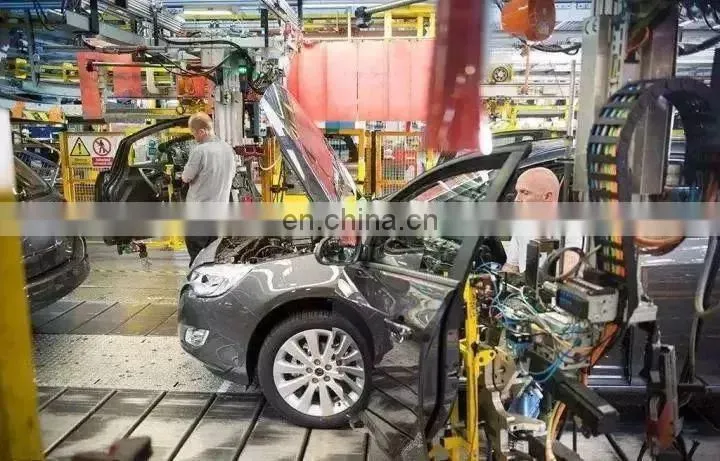

3. Assembling door line

Assemble door lifting mechanism, door inner panel, glass, decorative strips, etc.
Friction drive (FDS) system has the advantages of no lubrication, cleanliness and silence compared with ordinary chain motor lines

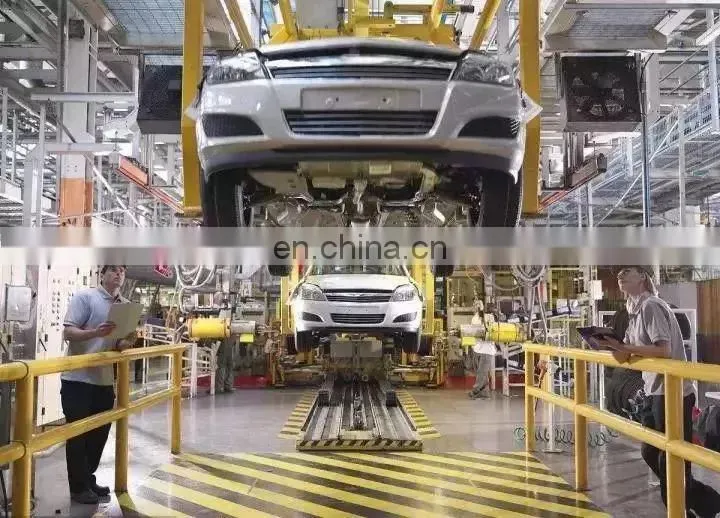

4. Inspection line for assembly

Four-wheel positioning, headlamp adjustment, formulation performance, emission performance, etc. Four-wheel positioning equipment, using the world's most advanced non-contact 3D laser head for detection, detection accuracy is far higher than the previous 2D laser head.

5. Detection Line Sprinkler Room

Each vehicle will be tested with 360 nozzles for 90 seconds. About 5 tons of water will be sprayed to simulate four times the world's largest rainfall to test the vehicle's sealing.

The assembly process of automobile assembly is as follows:
One Interior Trim Assembly - Chassis Assembly - Secondary Interior Assembly - CP7 Adjustment - Four Wheel Positioning - Test Rotation Test - Exhaust Gas Analysis - Road test - Rain Detection - Vehicle Inspection - Entry

Advantage

The characteristics of automobile automatic assembly line:

* High production efficiency

* Strong production rhythm

* Production organization and management are more complex and rigorous, more scientific and modern.

Development

Development prospects:

* Development of Vehicle Assembly Line and Parts Assembly Line towards Flexible Assembly Line

* Development of Filling Equipment to Vacuum Filling Equipment

* The testing equipment of automobile assembly line is developing towards the direction of computer control, digitalization, high precision and automation.

* Special assembly equipment is developing towards high precision, adaptability and automation

* Replacing impact pneumatic wrench with static wrench and fixed torque electric wrench is the development trend of assembly tools for automobile assembly line
