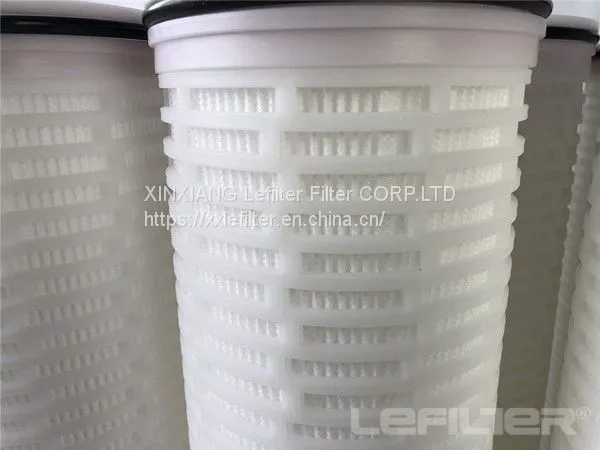

Alternative 3M large flow rate water filter RHF030EH

The Brief introduction of High flow water filter element:

It’s designed for a variety of container which can hold 1 to 37 filter elements. It can meet a variety of flow rate demands and the hardware of which has a price competitive advantage. The large diameter of Filter design increases the filter area and can greatly reduce the amount of filter elements and the shell size.

The Technical specifications of High flow water filter element:

Material：

The material filter：glass fiber, polypropylene（PP）

Support/Diversion layer : polypropylene
End cover：glass fiber reinforced polypropylene
Seal ring: EPR, PTFE fluororubber
Filter element performance:
Filtering accuracy: 1μm、3μm、5μm、10μm、20μm、50μm、70μm
The highest operating temperature: 80℃
The maximum pressure-drop: folding glass fiber:3.4Bar，20℃
Recommend pressure-drop of the replacement filter: 2.4Bar ，20℃

The maximum water-carrying capacity:  1300L/min

The Application fields of High flow water filter element
RO cartridge filtration, desalination pretreatment
The filtration of Power plant condensate water
Raw material drug, solvents and water filtration in biopharmaceutical industry
Filtration for bottled water, liquid glucose, edible oil, juice, soft drink and milk
Paints, coatings, petrochemical
Microelectronics, films, fibers, resins
The Production Feature of High flow water filter element:
High pollutant assimilative capacity can prolong the service life and reduce the cost
Reduce the amount of replacement filter elements and decrease labor costs
The design of seal interface can reduce the risk of bypass flows and increase the filtration efficiency
Easier installment and lower labor costs

Wide chemical applicability can be applied to a variety of fields
