Polariscope detecting stress in Quartz products
(Ref. PSV-413)
Function

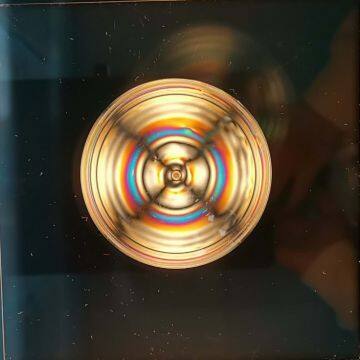

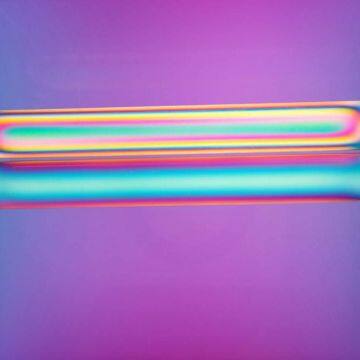

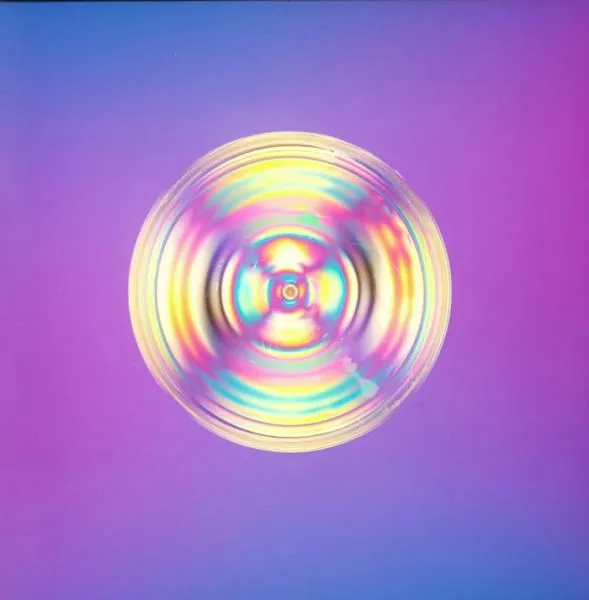

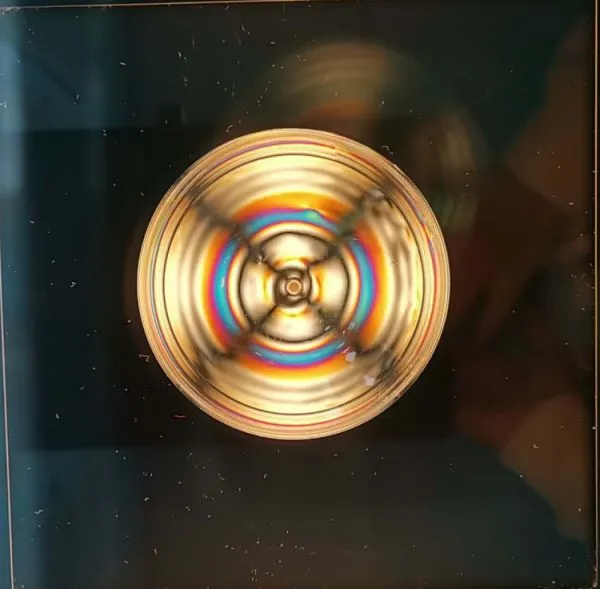

1. Observe stress distribution in transparent plastic, glass products and optical crystals
2. Measure retardation caused by internal stress in glass and optical crystals
Detecting object
1. transparent glass products with complex construction.
such as : penicillin bottle, ampoule , mobile phone cover, light tube, light bulb,solar glass ,automobile glass,sapphire, glass container , glass handicraft
2. transparent plastic samples
plastic bottle , cosmetic bottle , beverage bottle, contact lenses, plastic tray， plastic film
3. optical crystals such as quartz , SiC, calcium fluoride
Detecting methods
Sensitive Color Method and Senarmont Method
Specification
Model | PSV-413 |
Size | W280×D385×H390mm |
Measuring range | 0-280nm |
Weight | 11Kg |
Viewing field | W200×D200mm |
Measure height | max240mm |
Light Source | Warm white LED light 10W |
Power | DC 12V(with a AC/ DC adapter) |
