Polarimeter detecting stress in glassware and quartz before and after anealing
- 1000 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
Bench type Glass stress meter observing stress distribution
-
Quartz strain viewer easy to operate
-
Handheld Polariscope detecting stress without height limit
-
Easy-to-carry glass Polariscope with light weight
-
Hand-operated Quantative Polariscope measuring glass temper grade
-
Glass Polariscope testing glass container
Product Details
| Brand Name | PTC | Place of Origin | China | |
| Model Number | PSV-202 |
Product Description

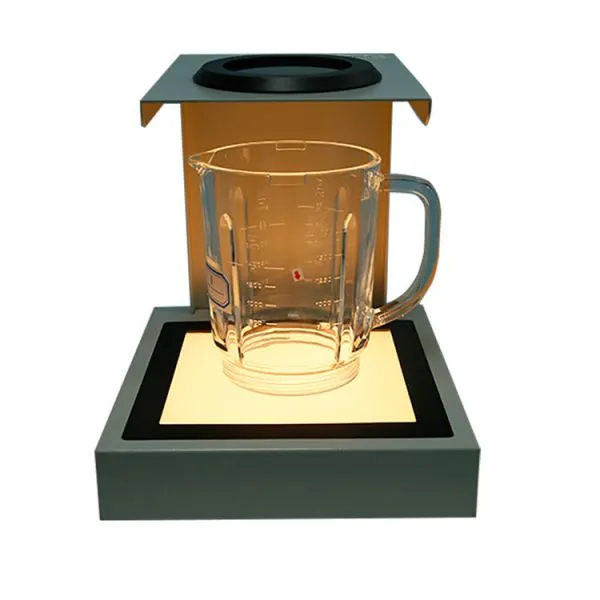

Polariscope for transparent Quartz, glass and plastic
(Ref.PSV-202)

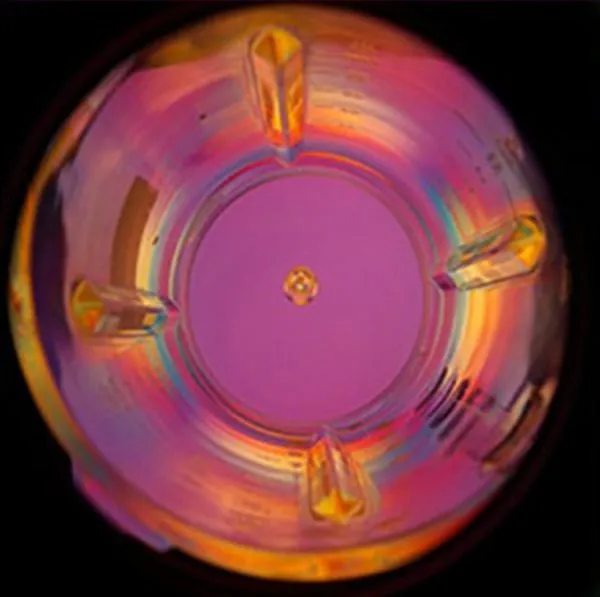

The Polariscope ( Ref.PSV-202) has been designed to observe and analyze the internal stress of transparent glass and plastic products .
Valued customers : Lock & Lock , Heraeus , Ferrotec
Detecting object
1. transparent glass products with complex construction.
such as : penicillin bottle, ampoule , mobile phone cover, lighting tube, solar glass ,automobile glass,sapphire, glass container , glass handicraft
2. transparent plastic samples
plastic bottle , cosmetic bottle , beverage bottle, plastic tray, plastic film
3. Crystaline material
Specifications
Optical path difference of full-wave plate : 560nm
Viewing field: 200mm*200mm
Measuring height :236mm
Overall size: 310*285*350mm
Voltage: 24VDC( with a AC/DC adaptor )
Light source: White fluorescent lamp
Weight:8KG
