Polariscope detecting glass stress
(Ref. PSV-413L)
Function

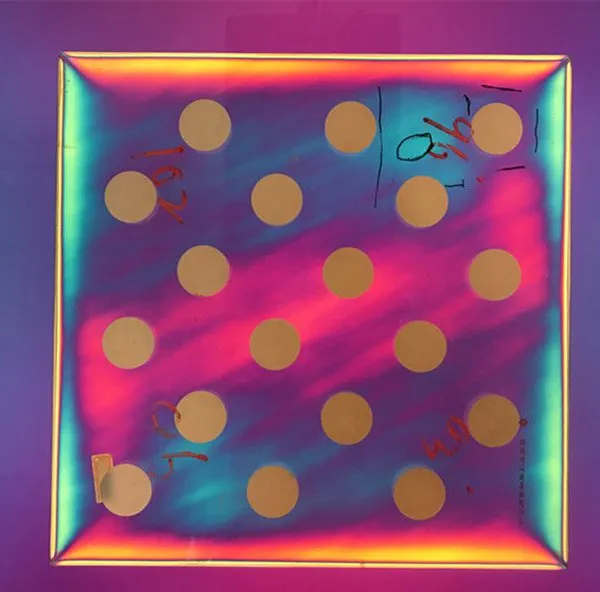

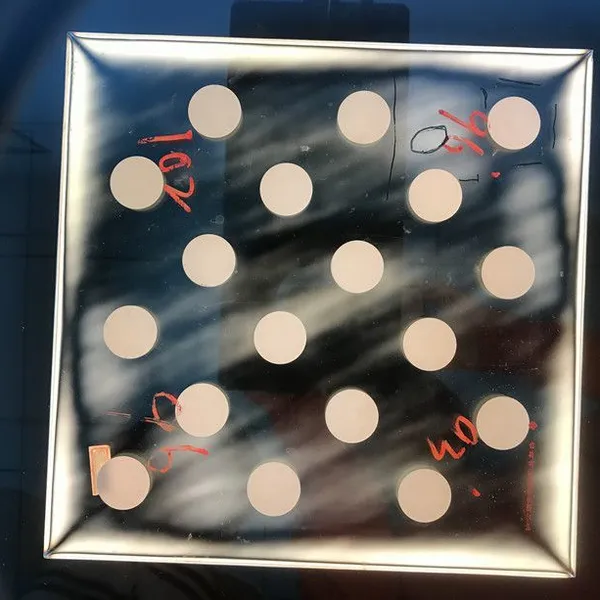

1. Observe thermal stress distribution after annealing
2. Measure glass tempering grade
3. Measure optical retardation caused by thermal stress in glass
Detecting object
transparent glass products with complex construction.
such as : glass container , glass handicraft ,glassware , tableglass , lamp
penicillin bottle, light tube, light bulb,solar glass ,automobile glass etc
Detecting methods
Sensitive Color Tint Method and Senarmont Compensation method
Specification
PSV-413L |
|
Analyzer |
Diameter 78mm |
Viewing field |
400×400mm |
Glass tempering grade |
0-10 |
Measuring range ( Optical retardation ) |
0-280nm |
Measure height ( adjustable ) |
Max 600mm |
Light Source |
Warm white LED light 10W |
Power |
220VAC 50-60HZ |
Size |
W485×D584×H732mm |
Weight |
20Kg |
