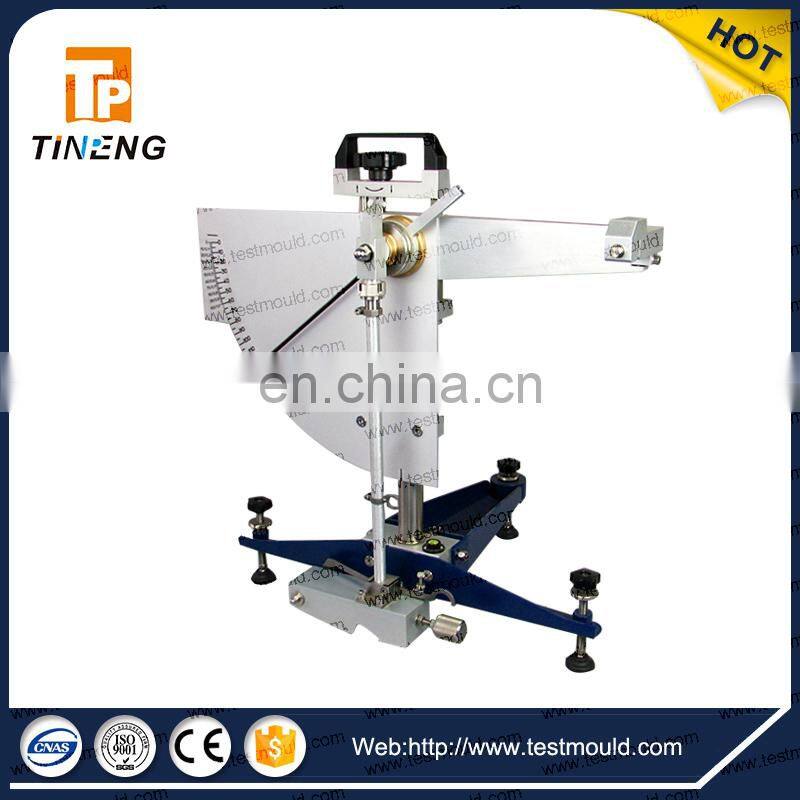

Matest Quality Pendulum Skid Resistance and Friction Coefficient Tester for Road Surface Test

 Pendulum skid resistance and friction coefficient tester

The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site.

Applications:
• Road surface testing
• Testing of new road surface materials under development
• Testing of aggregates in the PSV (polished stone value) test
• Testing of floors and pedestrian walkways
• Flooring materials product development
• Accident investigations, both traffi c and pedestrian
• Litigation investigations

STANDARD DELIVERY:
48-B0192 Portable skid resistance and friction tester, adjustable in height
B0192/1 Sturdy case with dense foam inserts giving excellent protection
B0192/2 F’ Scale Built in, for use with small slider set for 76mm slide length. (PSV test)
B0192/3 Perspex setting gauge 126 mm
B0192/4 TRRL3.0, Slider 55 Road surfaces. Customer can choose either type.
B0192/5 Brush, For removing unwanted dirt or grit from area to be tested
B0192/6 C Spanner, For attaching and releasing arm to rotating head
B0192/7 17mm Spanner For fitting rear foot
B0192/8 Water spray bottle, For wetting surface to be tested
B0192/9 Feet pads, For placing under levelling feet when on soft ground
B0192/10 Operating instructions, A guide to road, floor and PSV testing
B0192/11 Tool set
B0192/12 Calibration Certificate Despatched
OPTIONS: need to be ordered seperately
B0192/13 Metal base plate without fixing device
B0192/14 TRRL 1.250, Slider 55 PSV Test
B0192/15 FOUR S, Slider 96 Internal Floors
B0192/16 Fixing device to base for blocks and nature stones(EN1341,1342)
B0192/17 Fixing device to base for laboratory polished test
