Product Details
| Brand Name | c-tech | Place of Origin | Hebei, China | |
| Model Number | EDC-3 | Power | Electronic |
Product Description

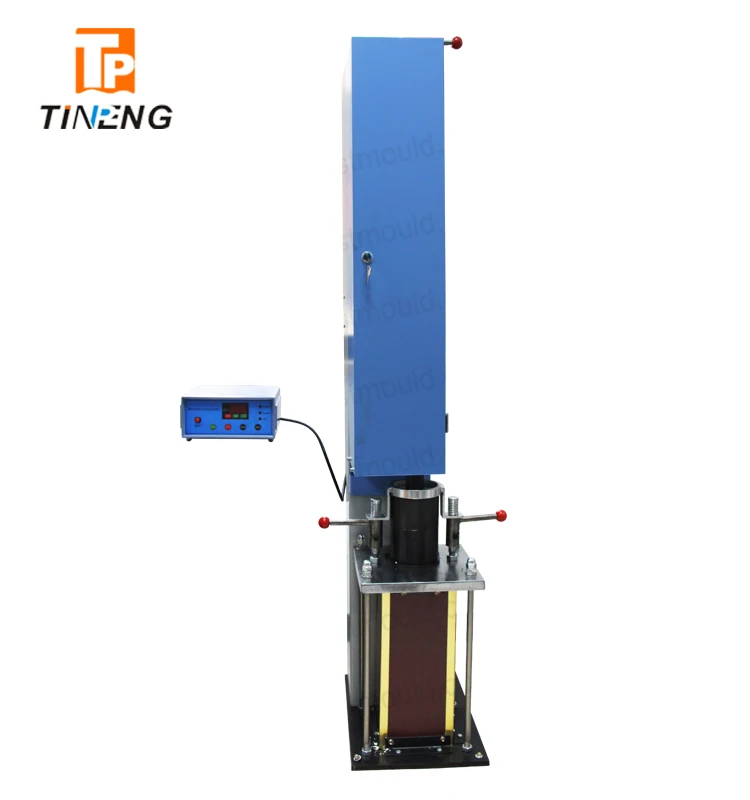

Marshall compactor
Tianpeng company engages in producing a variety of material test moulds and the material instruments with high quanlity.
standard: EN 12697-10, 12697-30, BS 598-107
This equipment is used for the preparation specimens forMarshall stability testing in compliance to BS 598 standard.
The digital controlled marshall electric compactor issuitable for preparing bituminous mix specimens (dia.
101.6mm x 63.5mm) used in marshall stability testing. Thetrip mechanism is designed to make the hammer fall atthe samedistance for every stroke. With some featuresof digital control, stroke times to be preset freely, autocounting and easy to operate etc.
Model EDC-3
Hammer weight: 10.210Kg±0.010 Kg
Specimen cylinder diameter: 152.4 mm
Drop height: 457±1.5mm
Compact frequency: 60 RPM
Compact time range: 0-999 times
Dimension: 670 x 570 x 1800 mm
Power: 380 V, 50 HZ, 370 W
Weight: 160 Kg
