Electric California Bearing Ratio CBR Test Machine For Pavement Material
US$ 550 - 680
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
C-TECH
Place of Origin:
Hebei, China
Model Number:
CTM-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
150Kn Soil Electric Hydraulic Universal Extruder and EjectorUS$ 550 - 650MOQ: 1 Set -
Soil Testing Equipment 0-300kn Soil Plate Bearing Load Test ApparatusUS$ 500 - 500MOQ: 1 Set
-
Soil Rammer Soil Electric Multifunctional CompractorUS$ 950 - 1,000MOQ: 1 Set
-
Casagrande Apparatus Casagrande Method Manual Liquid Limit Test SetUS$ 300 - 700MOQ: 1 Set
-
Cylinder CBR Test Mould With Base and Collar for Soil TestingUS$ 40 - 60MOQ: 10 Pieces
Brand Name
C-TECH
Place of Origin
Hebei, China
Model Number
CTM-01
Power
Electronic
Description:
CBR Test Machine

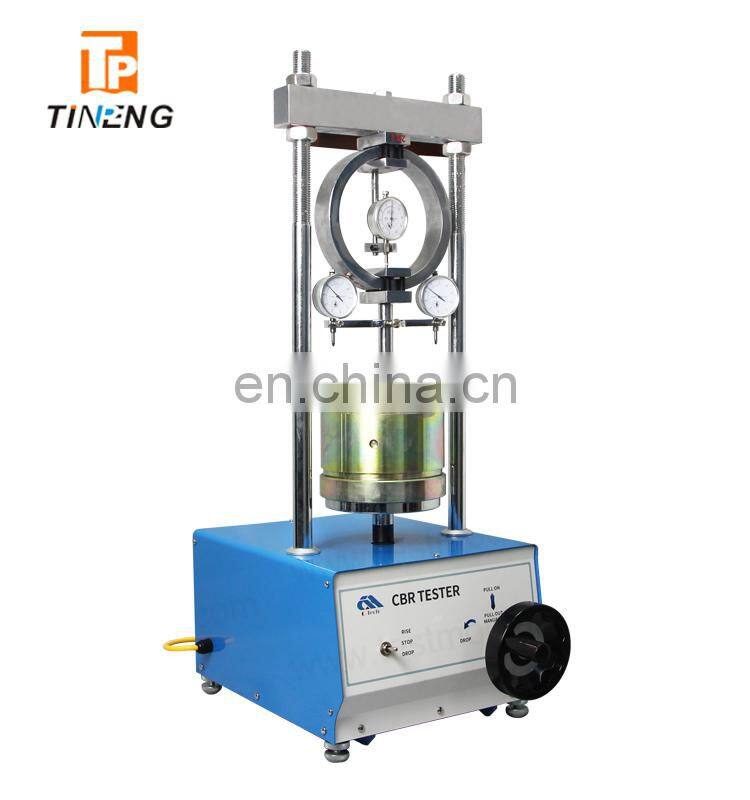

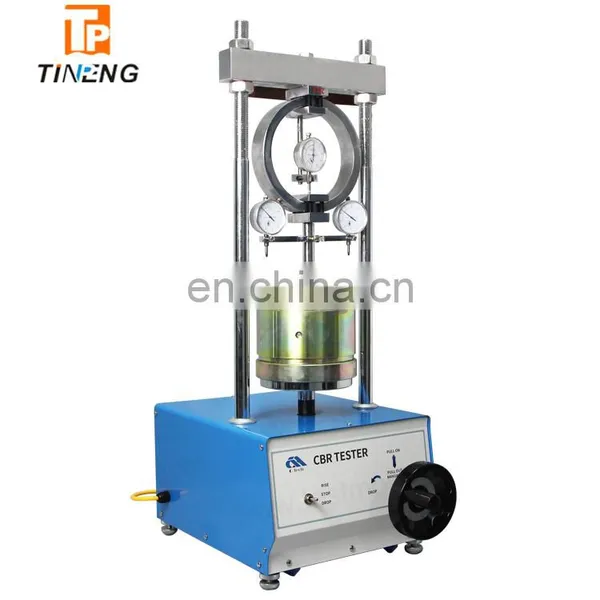

This machine is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed subcrust as well as material layer of the roadbed to be designed. It consists of a twin column frame, proving ring, penetration bar, loading plate, micrometer,measuring device for swell increment etc. and easy to operate.
Specifiction:
Model CTM-01
| Capacity | 30 KN/50KN (selectable) |
| Load speed | 1.0 mm/min |
| Penetration bar | dia. 50 mm x 100 mm |
| Platen | dia. 170 mm |
| Platen travel | 50 mm |

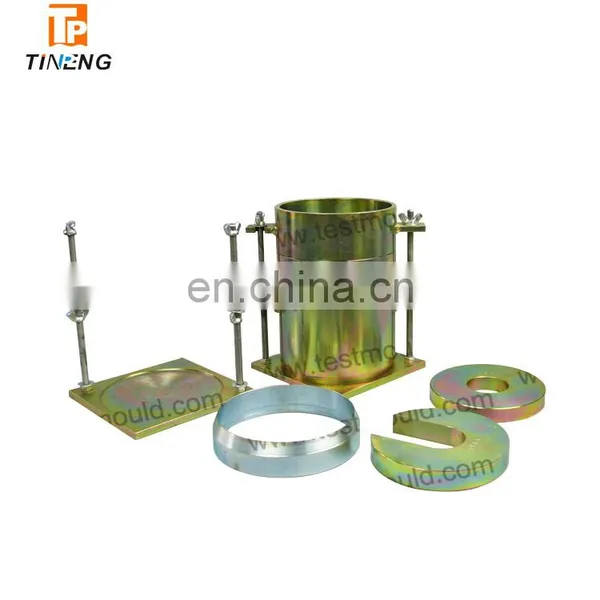

| Mold | dia. 152 mm x 170 mm |
| Dimension | 310 x 310 x 930 mm |
| Power | 220 V, 50 Hz |
| Weight | 80 Kg |
