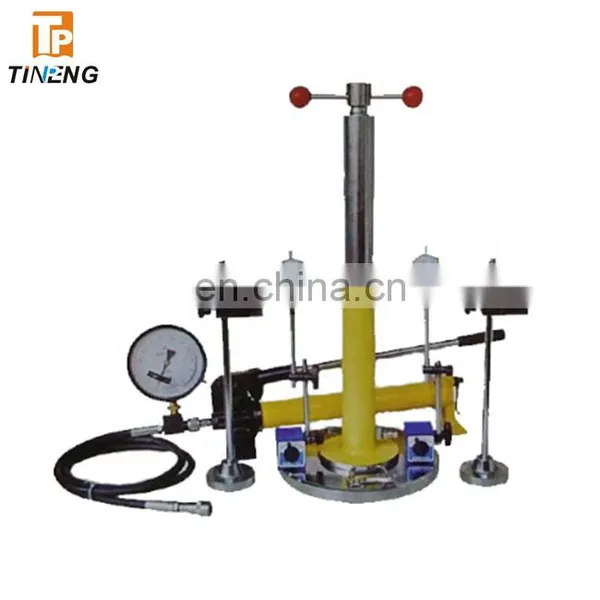

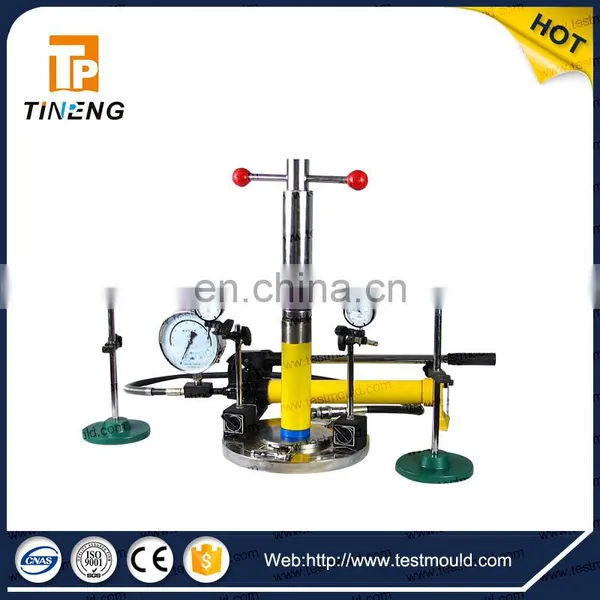

0-300KN plate load bearing test apparatus for soil
Standard: ASTM D1194, D1195, D1196 – BS 1377:9 –CNR No. 92 and No. 146 – DIN 18134
These test methods are used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment (ASTM D1194) but also for load tests of soil and flexible pavement components for use in evaluation and design of airport and highway pavements (ASTM D1195, D1196; BS 1377; CNR No. 92 and No. 146; DIN18134). We propose a complete range of plate load testing equipment conforming to the different standards.
The apparatus can be easily converted conforming to method "b" - three dial gauges-removing the housing for centre dial gauge anvil and requiring other two dial gauges 30x0.01 mm with two dial gauge supports.
Load plate diameter: 300 mm
Jack load capacity range: 0-300 kN
Jack Stroke: 120 mm
Measuring bridge span: 3000 mm
Hand pump rated pressure: 70 Mpa
Stress test range: 0-25 Mpa
Displacement measurement range: 0-10 mm
Packaging:Standard exportwooden case
Packing dimension: 1100x235x315mm
Shipping:Shipping by air,sea,express are all available,we'll help you with transportation selection according to goods quantity.
·We supply a wide range of product to meet your various needs.
·Experienced sales team help you with equipment selection.
·Special equipment specification can be customized according to your requirements.
·Enthusiastic after sale service.
