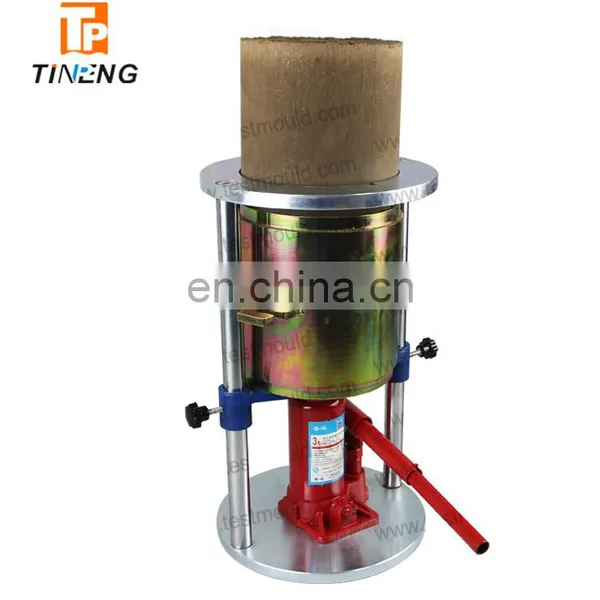

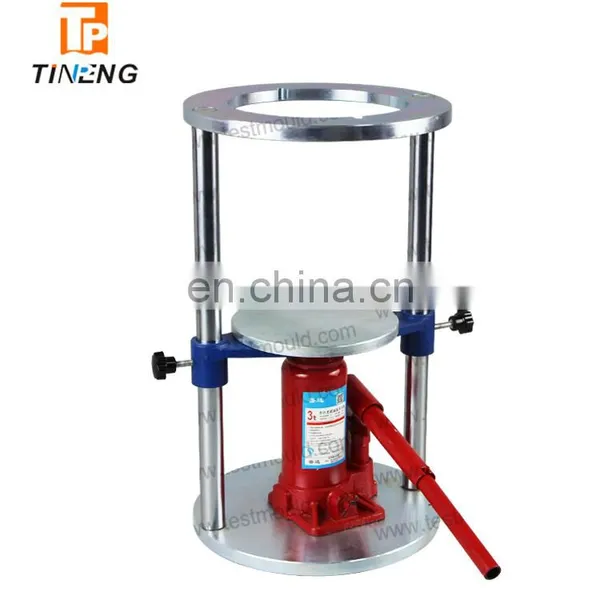

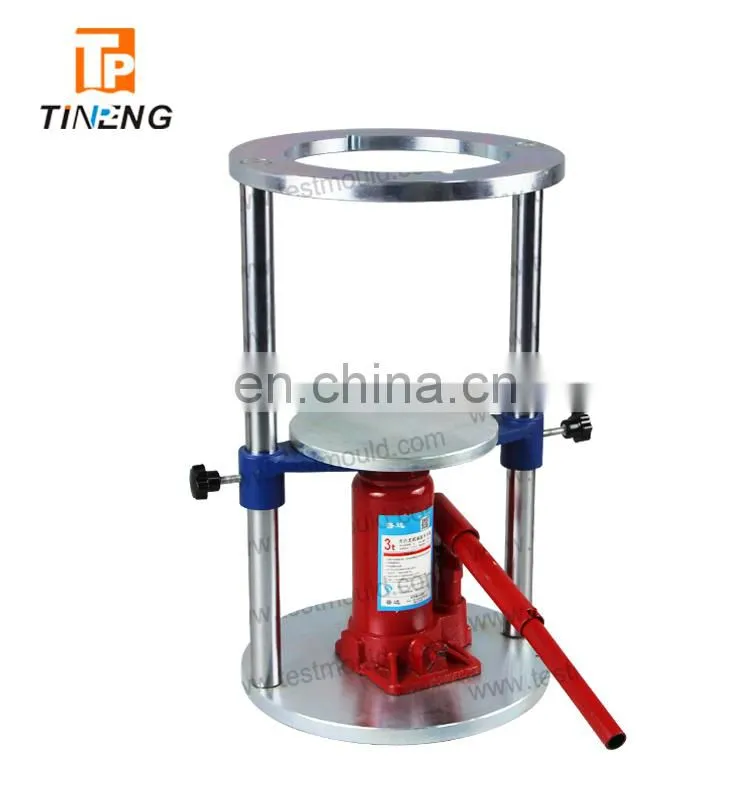

50KN Hand Operated Hydraulic Universal Sample Extruder
US$ 100 - 150
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
C-tech
Place of Origin:
China
Model Number:
16-T0080
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM CBR Mould With Accessories for SoilUS$ 100 - 500MOQ: 1 Set -
Sand Density Cone Method ApparatusUS$ 85 - 120MOQ: 10 Sets
-
Sand Content Test Kit for Determining the Sand Content of Drilling MudsUS$ 20 - 20MOQ: 2 Sets
-
SDT Series Analog Soil ph and Moisture MeterUS$ 45 - 55MOQ: 1 Set
-
YZ-1 Hand Manul Soil Sample Auger for Boring in Cohesive SoilUS$ 130 - 180MOQ: 1 Set
Brand Name
C-tech
Place of Origin
China
Model Number
16-T0080
Power
Hydraulic
Product Description
hand operated hydraulic universal extruder, hydraulic sample extruder
Standard: ASTM D698, D1587, D1883, BS 598:107, 1377:4, 1924:2
It can also be used to remove Marshall, Proctor and CBR specimens.
Mainly used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds. Proctor and CBR specimens.
Model 16-T0080
| Capacity | 50 kN maximum |
| Soil specimen | Dia.101 × 116, Dia.151 × 116 mm |
| Bituminous mix material specimen | Dia.101.6 × 87 mm |
| Materia stabilized with inorganic |
Dia. 50 × 50, Dia. 100 × 100mm Dia. 150 × 150mm |
| Weight | 40 Kg |
