Reducing And Stabilizing Control Valve 200X
USD $33.28 - $35.29
/ Piece
2 Pieces(Min.Order)
- 500 Ton / Tons per Month
- tianjin ningbo shanghai
- T/T Credit Card
You May Like
-
Pressure Releasing And Sustaining Valve 500X For Fire Control Testing
-
PN16 PN25 Carbon Steel Manual Blind Plate Valve With Low Price
-
Steel Glasses Valve Stainless Steel Disc Moved Disc Manual Blind Plate Valve
-
High Quality Pressure PN10 PN25 PN25 DN50 DN200 DN300 DN400 Blind Plate Valve
-
WCB Body WCB Disc Manual Blind Plate Valve For Water Pipeline
-
Electric Type Fan-shape Remote Control Blind Plate Valve With Price
Product Details
| Brand Name | HBYS | Place of Origin | Hebei, China | |
| Model Number | 200X | Application | General | |
| Port Size | DN20-DN300 | Media | Water | |
| Temperature of Media | Low Temperature |
Product Description
Product Description

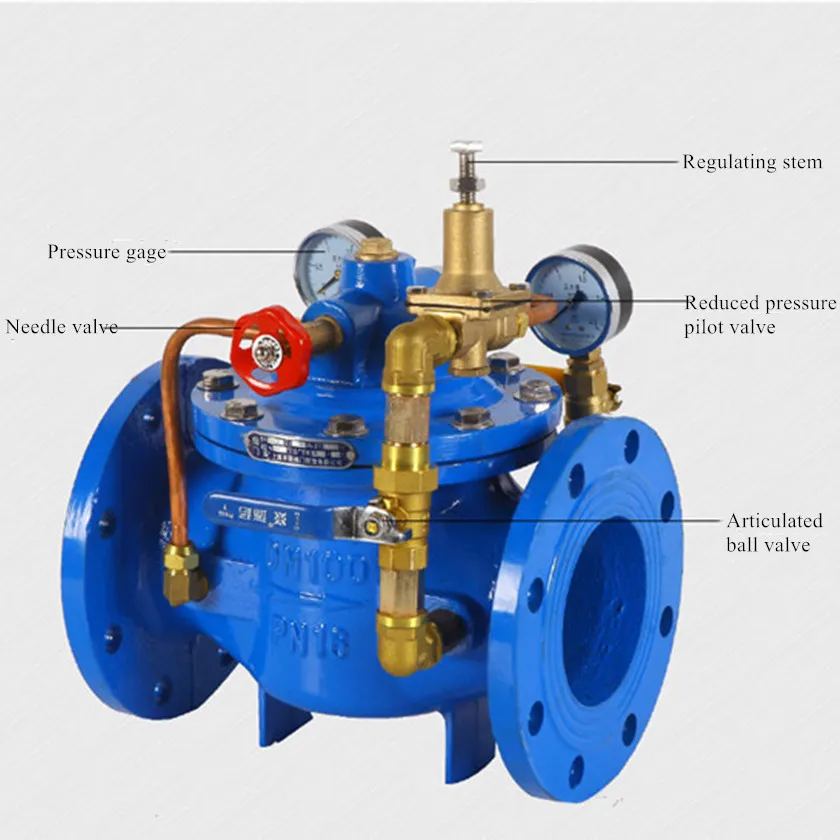

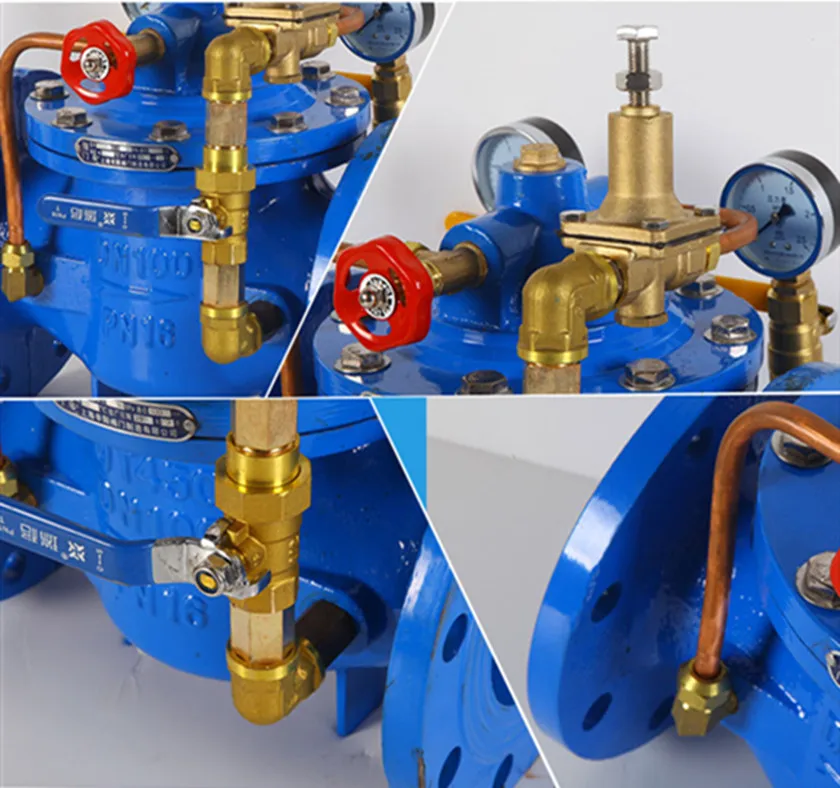

The reducing And Stabilizing Control Valve 200X valve consists of main valve, guide valve, needle valve, ball valve and pressure gauge.The pressure reducing valve mainly controls the fixed outlet pressure of the main valve, the outlet pressure of the main valve does not change due to the change of the inlet pressure, and does not change its outlet pressure due to the change of the outlet flow of the main valve.Applicable to industrial water supply, fire water supply and domestic water pipe system.
Normal pressure(Mpa) | Shell test pressure(Mpa) | Shell test pressure(Mpa) | Suitable medium and temperature | ||||||||||||
1.0 | 1.6 | 2.5 | 1.5 | 2.4 | 3.75 | 1.1 | 1.76 | 2.76 | Water ≤50℃ | ||||||
Adjustable pressure on the scope of export(Mpa) | Maximum intake pressure(Mpa) | ||||||||
0.09-0.8 | 0.10-1.2 | 0.15-1.6 | 1.0 | 1.6 | 2.5 | ||||

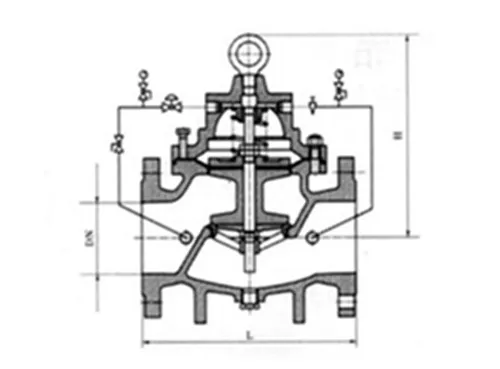

DN(mm) | Measurement(mm) | ||||
L | H1 | H | |||
40 | 210 | 300 | 395 | ||
50 | 210/240 | 300 | 395 | ||
65 | 230 | 310 | 405 | ||
80 | 250/280 | 320 | 420 | ||
100 | 280/320/350 | 340 | 500 | ||
125 | 310/320 | 380 | 540 | ||
150 | 320/350/360 | 410 | 575 | ||
200 | 390/425/450 | 440 | 665 | ||
250 | 430/500 | 460 | 720 | ||
300 | 500/600 | 480 | 750 | ||
200X relief valve holding pressure valve working principle
1. When the pipe feeds water from the inlet end, the water flows through the needle regulating valve into the main valve control room, and the outlet pressure acts on the decompression guide valve through the conduit. When the outlet pressure is higher than the set value of the decompression guide valve, the decompression guide valve is closed and the control room stops draining. At this time, the pressure in the control room of the main valve rises and closes the main valve, and the outlet pressure does not increase.
2. When the outlet pressure drops to the pressure relief guide valve setting pressure, the guide valve opens and the control room drains downstream. Because the displacement of the pressure relief guide valve is greater than that of the needle control valve, the pressure of the main valve control room decreases, and the inlet pressure makes the main valve open. In the stable state, the water intake and drainage of the control room are the same, the opening is unchanged, and the outlet pressure is unchanged. Adjust the pressure relief guide valve spring to set the outlet pressure.
Production process
Product packaging
We usually use plastic bags and cartons to packing the valve .
Cartons usually are located on pallets
We also pack the valve by plywood cases
We also pack the valve by plywood cases
Company Profile
Hebei Yaosheng IM & EX Trading Co., Ltd located in B # industrial park, Xushui district, Baoding city, Hebei province, is a professional company integrating the research, development, manufacture and sales.
Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, and French NF are mainly adopted. Production size: DN15~DN2000mm(1/2″~ 80″), pressure level: 0.25~6.4Mpa(125LB~600LB), working environment: -60~550℃. Additionally, materials mainly include WCB cast iron stainless steel, etc. There are about 100 series of products, such as, gate valve, globe valve, check valve, ball valve, butterfly valve, bottom valve, drain valve, filter, and flange, which have been widely used in fields of petroleum, petrochemical, chemical, electric power, construction, medicine, water supply and drainage.
Products have been widely launched in the market of European and Middle East and Southeast AISA, mainly including the United States, Romania, Spain, Vietnam, Indonesia, Malaysia, Russia, Kazakhstan, Ukraine and other countries.Certifications
