automobile common rail CR3000 used fuel injection pump bosch test bench price
- 2000 Piece / Pieces per Month
- qingdao
- T/T Credit Card
- CR3000A(Glass Tube Measuring System) common rail injector and pump test bench
- Factory price pc computer crdi test bench with high quality NTS709
- CAT501 AUTO TRANSMISSION FLUID CHANGER
- CRS-708 flow meter sensor common rail pump test bench
- Updating common rail injector test machine DTS100
- Common Rail Test Bench(Advanced Model) CRS708 CR300A-708
Product Details
Brand Name: | dongtai | Place of Origin: | Shandong, China |
Usage: | Auto Testing Machine |
Product Description

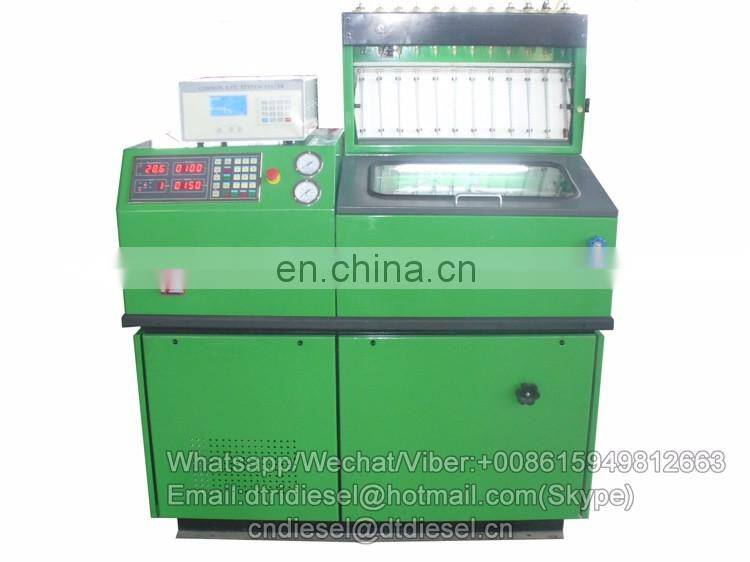

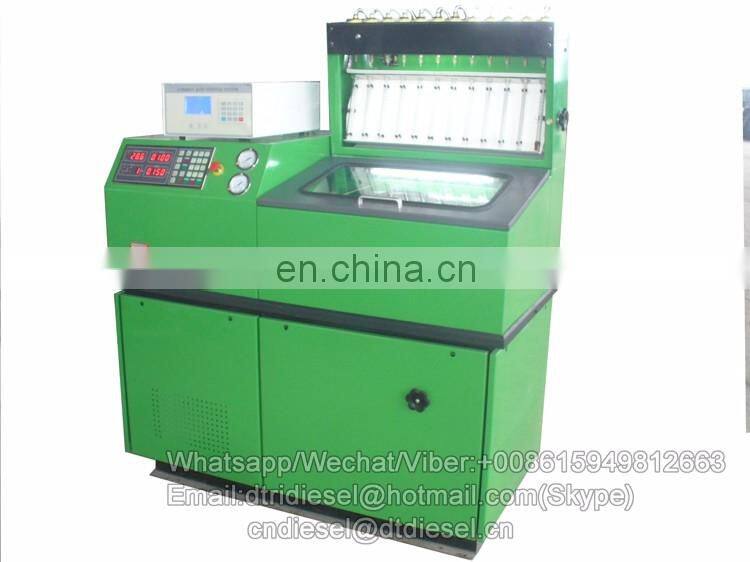

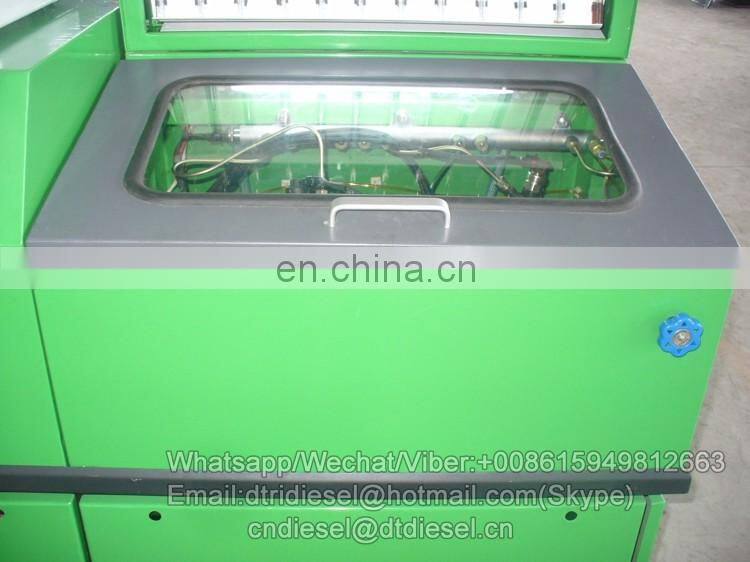

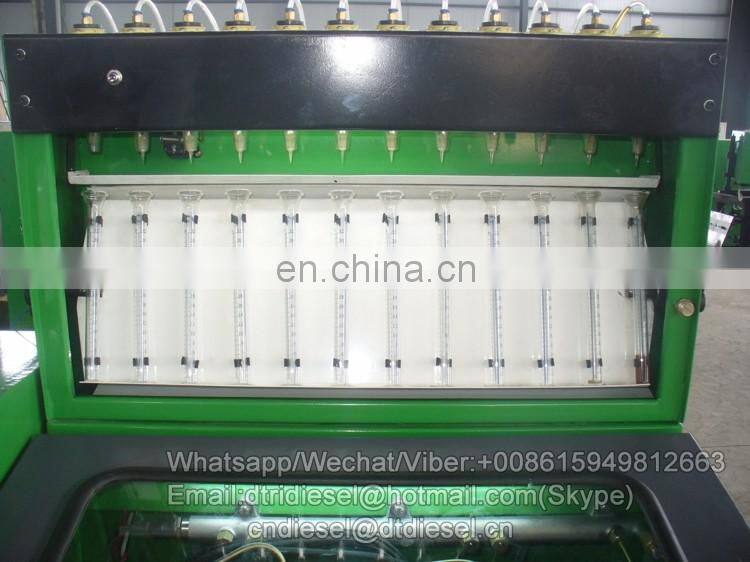

Automobile common rail CR3000 used fuel injection pump bosch test bench price
Product Functions

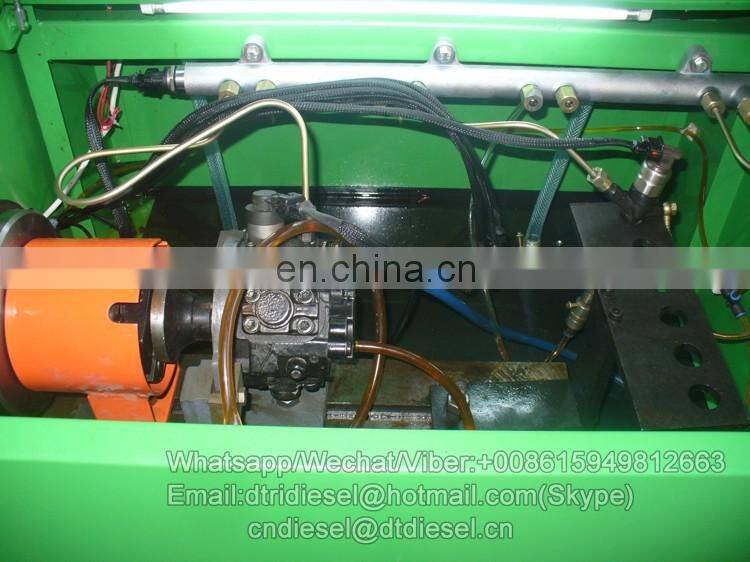

The function of the CR3000 common rail injector and pump test bench for CR high pressure pumps is to provide the desired signal to drive the solenoid in the pump being tested. CR3000 common rail Test bench can used for testing following pumps:
BOSCH CP1-H, BOSCH CP1-K,BOSCH CP3,DELPHI, SIEMENS, DENSO HP2 AND HP3.
It has the functions to test the Electromagnetic and Piezoelectric injectors.
It also can test 6 common rail injectors in one time
Design Features
1, Modulated driving signal to ensure the safety of the solenoid of the CR pump |
2, Adjustable duty cycle for the driving signal |
3, Short circuit protection for the output circuitry of the solenoid driving signal |

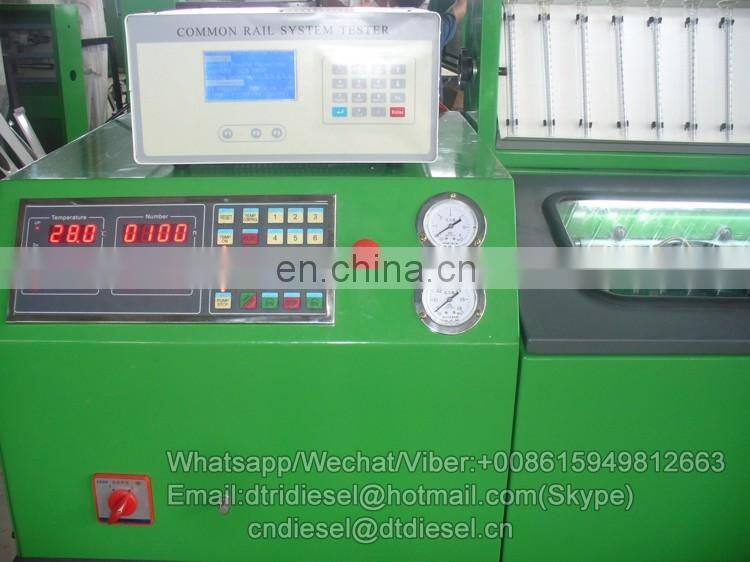

4, Measure and LCD display rail pressure |
CR3000 COMMON RAIL INJECTOR and PUMP TEST BENCH is the professional
test bench which is used for testing common rail system, can finish the high-pressure
common rail system functional testing.
System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type
Technical parameters
1, Main motor speed | 0-4000 r / min can be adjustable |
2, Motor power | 7.5KW, 11KW, 15KW, 18.5KW optional |
3, Fuel Injector open voltage | Control range: 12V, 80V, 150V Control accuracy: phase adjustment |
4, Injector opening frequency | Control: 0-1000HZ Control accuracy: 1HZ |
5, Fuel Injector Hold Time | Control: 0-65535us |
6, Delivery Oil Count | Control: 0-1000 times Control accuracy: 1 times |
7, Fuel pressure control | Control: 0-2000bar Control accuracy: 1bar |
8, Electronic power | 3 PHASE 380V or 3 PHASE 220V optional |
Packaging Details: | Original package or as your requirement |
Delivery Detail: | 3-5 days after payment |
>>> Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories)
2, Injection pump test bench
3,auto tools
4 Auto parts
5, special vehicles
6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
