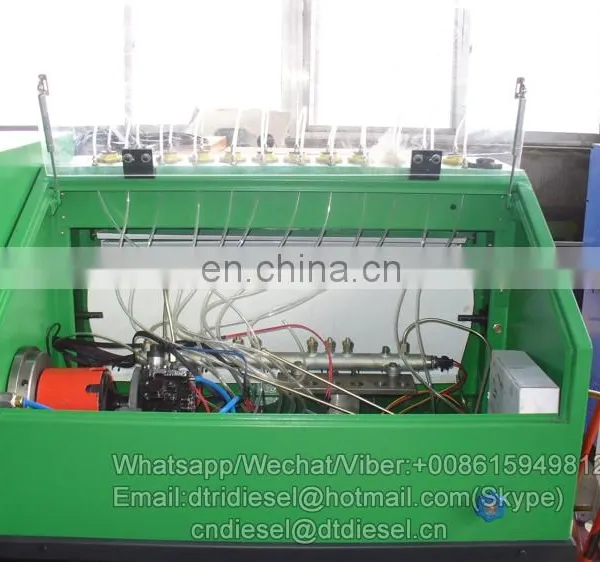

CR3000A(Glass Tube Measuring System) Common Rail Injector and Pump Test Bench

CR3000A(Glass Tube Measuring System) common rail injector and pump test bench

MODEL:CR3000A

DESCRIPTION:

CR3000A COMMON RAIL TEST BENCH is mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured values.
CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

System Application:the system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic  injectors,It also can test 6 common rail injectors in one time

MAIN FUNCTIONS:

(1), Main motor speed: 0-4000 r / min can be adjustable.

(2), Motor power: 7.5KW, 11KW, 15KW, 18.5KW optional.

(3), Fuel Injector open voltage Control range: 12V, 80V, 150V Control accuracy: phase adjustment

(4), Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ

(5), Fuel Injector Hold Time    Control: 0-65535us

(6) Delivery Oil Count-control: 0-1000 times Control accuracy: 1 times

(7), Fuel pressure control Control: 0-2000bar Control accuracy: 1bar

(8), Electronic power: 3 PHASE 380V or 3 PHASE 220V optional

 >>> Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories)

2,  Injection pump test bench

3,auto tools

4  Auto parts

5, special vehicles

6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
