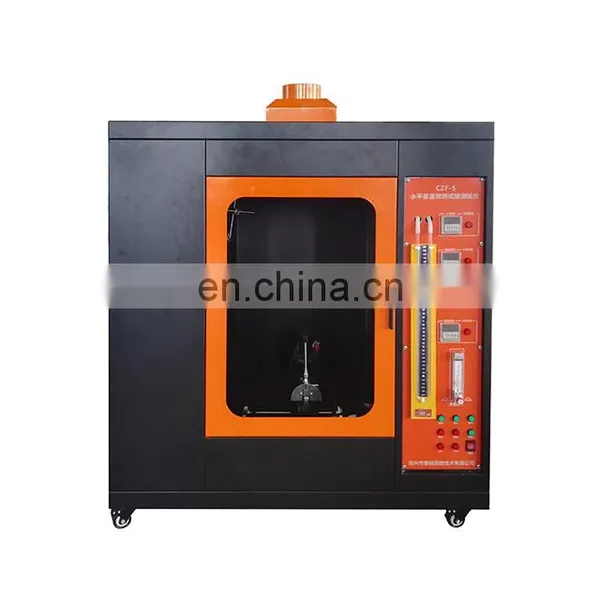

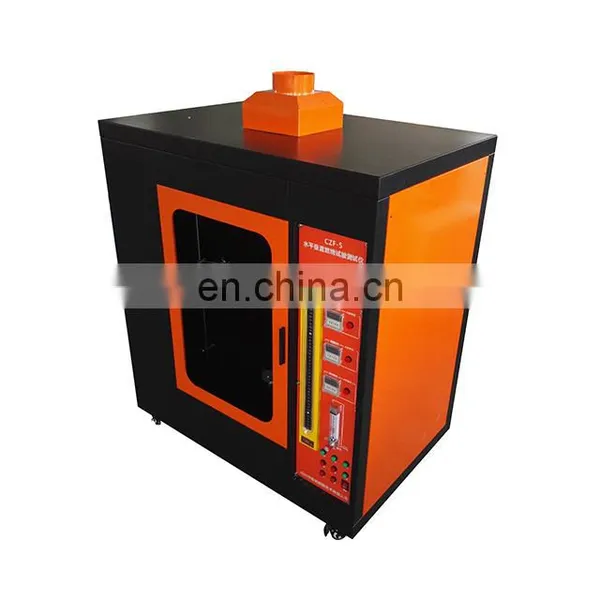

Help CenterAutomatic Horizontal and Vertical Burning Tester Chamber for Flammability Test
Related Products
-
ISO 9239 International Using Radiant Flooring Panel Apparatus for the Cornerstone of the Flooring Materials Reaction to Fire TesUS$ 1,300 - 14,000MOQ: 1 Unit -
EN 13823 Single Burning Item Test SBI for Building Materials Combustion Performance Test AnalyzersUS$ 25,000 - 33,000MOQ: 1 Unit
-
EN 13823 Building Material SBI Single Burning Items Testing MachineUS$ 32,000 - 32,000MOQ: 1 Unit
-
Autoignition Single Wire Cable Vertical Flame Testing EquipmentUS$ 1,350 - 1,500MOQ: 1 Unit
-
ISO11925 Standard International Ignitability Flammability Test ErChamber Building Material Combustion TestUS$ 1,000 - 1,000MOQ: 1 Unit
Application:
The horizontal and vertical burning test uses a Bunsen burner of a specified size and a specific gas source (methane or propane) to ignite the sample in a horizontal or vertical state several times according to a certain flame height and a certain flame angle. The flammability and fire hazard are assessed by the igniting of the test article, the duration of the burning and the length of the burning.
The horizontal vertical burning tester is mainly used to grading the flammability of V-0, V-1, V-2, HB, and 5V materials. It is also applicable to the research, production and quality inspection departments of electrical and electronic products and their components, such as lighting equipment, low-voltage electrical appliances, household appliances, machine tools, electrical machinery, power tools, electronic instruments, electrical instruments, electrical connectors and accessories. In the field of insulation materials, engineering plastics or other solid combustible materials.
Features:
1. The horizontal vertical burning test machine is composed of a test part and a control part, and adopts an integrated design to facilitate on-site installation and debugging. The test chamber casing and important parts are made of stainless steel, which is resistant to smoke and gas.
2. The control system is highly automated and has automatic ignition. During the test, the test object automatically follows the flame in both vertical and horizontal directions.
3. The temperature and time numbers show that the observation and recording are convenient and the use is stable and reliable.
The power consumption of the moving motor of the burner |
60W |
Burner angle |
(90 ° - 45 °), adjustable |
Ignition timing |
0 to 99.99 seconds arbitrarily set |
Ignition time |
horizontal 30s; vertical 10s |
Afterflame time, afterglow time timer |
0~99.99 seconds, accuracy: ±0.01 seconds; |
Flame height |
manually adjustable, and set a flame height scale of 20mm |
Use of gas |
industrial grade methane, liquefied petroleum gas, natural gas, gas, etc. (customer self-contained) |
Working power supply |
AC220V; 50Hz; 150W |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
If any question, pls feel free to contact us as below:
Phone$WhatsApp:0086-13738977671
Skype:752721336
Send Inquiry to This Supplier
