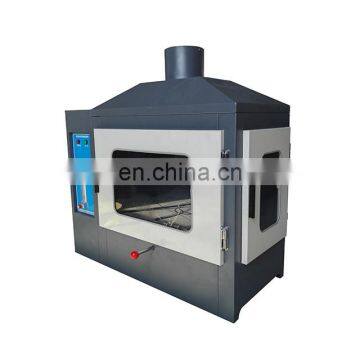

Help CenterISO11925 Standard International Ignitability Flammability Test ErChamber Building Material Combustion Test
Related Products
-
ISO1182 Non Flammability Tester for Building Material Burning TestUS$ 2,400 - 2,500MOQ: 1 Unit -
EN ISO 1182Building Material Non-combustibility Test Apparatus Auto up and DownUS$ 2,500 - 3,500MOQ: 1 Unit
-
EN ISO 1182 Burning Test Level Non Combustibility Test Machine for Building Products Fire DevelopmentUS$ 2,800 - 2,900MOQ: 1 Unit
-
Limiting Oxygen Index TesterUS$ 1,100 - 1,400MOQ: 1 Unit
-
Portable Skid Pendulum Resistance Friction Coefficient Tester for Road Surface TestUS$ 280 - 300MOQ: 2 Acres
Application:
This product is mainly used for the external wall thermal insulation system and various building materials burning performance test, to determine whether the building materials have flammability test equipment. It is widely used in the production of heat-resistant and thermal insulation materials, related quality inspection departments and units, universities and research institutes.
Flammability and Fire Testing (Building Materials) * Room Burn Apparatus: Flammability tests for wall panels, wall coverings, foam plastics, and an assortment of other materials and configurations.
Open Calorimeter: Calorimeter tests in compliance with federal, state or local fire codes and requirements including testing to UL 1056 and UL 1895.
Features:
1.The cabinet is made of all stainless steel
2.Beautiful appearance and smoke resistance
3.Corrosion resistance, anti-aging and durable
* Instrument complies with and performs EN ISO 11925-2 test standard
* Bench mounted draught-free chamber with dimensions according to the latest standard primary & secondary specimen holders
* High quality stainless steel construction
* Two large opening tempered glass doors to allow easy viewing

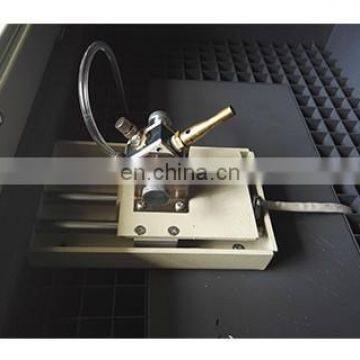

* Purpose-built ignition source with vertical & 45° orientations
* External horizontal burner positioning mechanism from the front
* External lateral positioning of specimen holder support from the front
* Flame measuring device
* Edge flame impingement spacer
* Surface flame impingement spacer
* Options available: * Multilayer specimen holder
* Loose fill specimen holder
* Anemometer 0-10 m/s range
* Timing device with 0.2 sec divisions
Standard:
ISO11925
Electrical: 230AC 50 Hz
Dimensions: The chamber has overall dimensions of approximately 900 mm by 400 mmby 910 mm (high)
Ignition Burner Gas Supply: The fuel gas used in the test is propane with a minimum purity of 95%. The pressure required to obtain
Flame stability at 45° needs to be between 10 kPa and 50 kPa
If your business is in inspect area, we recommend that you choose our standardized product. please inform us of your requirements in the inquiry. We will efficiently provide you with product selection solutions and quotations.
Nozzle aperture |
¢0.17mm |
|
Flame height |
(20 ± 1) mm |
|
Lgnition timing |
15s, 30s |
|
Use gas |
propane gas with a purity of more than 95% |
|
Sample size |
250mm × 90mm 250mm × 180mm |
|
Test piece thickness |
≤60mm |
|
Ambient temperature |
(23±5) °C |
|
Relative humidity |
(50±20)%RH |
|
Power |
AC220V±10% 50HZ |
|
Product size |
900*400*910mm |
|
Test box material |
stainless steel |
|
Specimen holder |
Two U-shaped stainless steel frames, 5.0mm thick |
|
Burner |
at an angle of 45 degrees to the horizontal |
|
Flue air flow rate |
0.7m/s |
|
Anemometer measurement accuracy |
±0.1m/s |
|
Has six moving parts: (1) Y-direction movement (2) X-direction movement (3) Z-direction movement (4) Y-direction sliding (5) Rotation around the Z-axis (6) Burner around the X direction -450~+450 swing |
||
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L
