Home > Products > NDT testing > Directional Portable X-RAY FlAW DETECTOR
Directional Portable X-RAY FlAW DETECTOR
- China Shanghai OR Nanjing Seaport
- T/T Credit Card
You May Like
-
ZBL-R800 concrete rebar locator and rebar corrosion detector Tester
-
TBT-HT660 Metal Materials Hand Held Leeb Hardness Tester
-
Fast Testing With Thermal Printer Leeb Portable Hardness Tester
-
Steel Test Steel Bar Distribution and diameter Tester Rebar Locator Rebar scanner
-
TBTUTS-10 with Software Non-metal Ultrasonic Detector Machine
-
TBT-R630 Rebar locator, Rebar Concrete Detector rebar detectors for concrete/metal locator scanning
Product Details
| Brand Name | TBT | Place of Origin | Jiangsu, China | |
| Model Number | Directional Portable X-RAY DETECTOR |
Product Description

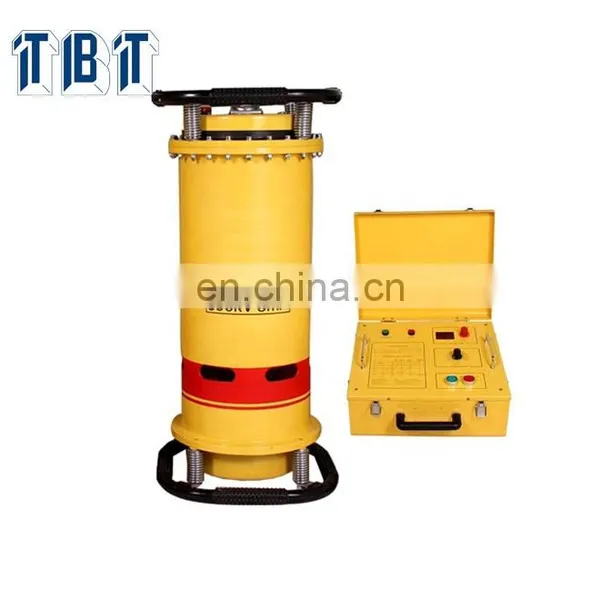

Portable Directional X-ray Flaw Detectors (glass X-ray tube)
I. Product Characteristic
Portable Directional X-ray Flaw Detectors (glass X-ray tube) can be used in non destructive testing (NDT) of thin iron plate, aluminum material, rubber and so on, with which you will get images of high quality and clarity
Portable directional X-ray flaw detectors (glass X-ray tube)include the following type: XXQ-1005, XXQ-1605, XXQ-2005, XXQ-2505, XXQ-3005, XXQ-3205 and XXQ-3505
II. Product Specification:
|
Model |
Voltage(kv) |
Input(kw) |
Focus size(mm) |
Radiation Coverage |
Max. Penetration A3 Steel (mm) |
Generator Weight (kg) |
Generator Dimensions (mm) |
|
XXQ-1005 |
50~100 |
1.2 |
0.8×0.8 |
40° |
8 |
11.1 |
190×190×530 |
|
XXQ-1605 |
60~160 |
1.5 |
0.8×0.8 |
40° |
19 |
15.2 |
225×225×585 |
|
XXQ-2005 |
100~200 |
2.0 |
1.5×1.5 |
40+5° |
30 |
23 |
285×285×665 |
|
XXQ-2505 |
150~250 |
2.5 |
2.0×2.0 |
40+5° |
40 |
35 |
320×320×730 |
|
XXQ-3005 |
170~300 |
3.0 |
2.3×2.3 |
40+5° |
50 |
45.5 |
345×345×830 |
|
XXQ-3205 |
180~320 |
3.2 |
2.5×2.3 |
40+5° |
55 |
45.5 |
345×345×830 |
|
XXQ-3205 |
180~350 |
3.4 |
2.8×3.0 |
40+5° |
60 |
47 |
345×345×800 |
Stable performance, best price, good quality , good after-sales service
Usage field: NDT product
Product name: Directional Portable X-RAY DETECTOR, China Directional Portable X-RAY FlAW DETECTOR
