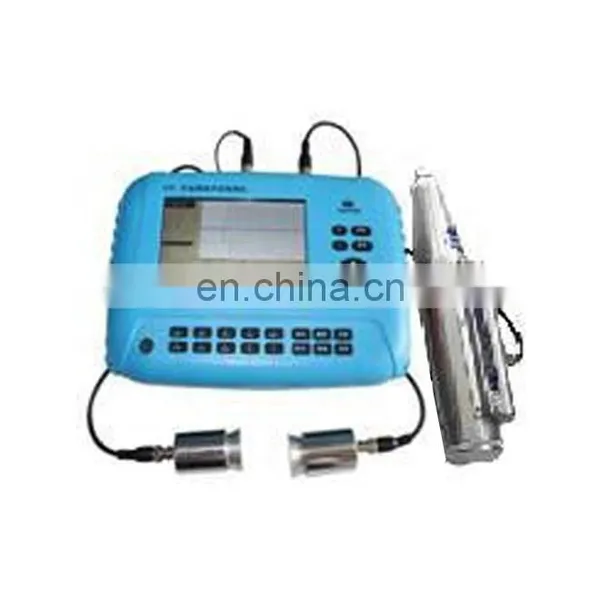

Non-metal Ultrasonic Detector Set
Model: TBTUTS-10
I.Purpose
Testing of building foundation piles by cross-hole sonic logging;
Inspection of concrete defects by ultrasonic method, such as uncompacted ,cellular, hole area.
Detecting strength of concrete by ultrasonic-rebound combine method.
Detecting strength of concrete crevice by ultrasonic-rebound combine method.
Detecting defects of one hole by one trigger two receive.
Testing dynamic performance of geotechnical investigation,rock,concrete etc.
II.Specification
Technology code for testing of building foundation piles JGJ 106 —2003
Technical Specification of Dynamic Pile Tests for Highway Engineering JTG/TF81-01-2004
Technology specification for inspection of concrete defects by ultrasonic method CECS 21: 2000
Technical specification for detecting strength of concrete by ultrasonic-rebound combine method CECS 02:2005
Technical specification for geotechnical investigation method GB50021—2001
III Performance
High efficient testing. lifting speed more than 60m/s.( 20 cm distance ).
Display the test data graphically. User can watch analyze result directly;
Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;
Humanized software design.software design apply to User and construction plant. its help information ensure user handle easily;
Linking the rebound apparatus directly.Detecting strength of concrete by
ultrasonic-rebound combine method with linking rebound apparatus directly,and get strength of concrete in time. The function apply for national patent.
Being sensitive to receiving signal.Can receive signal more than 10m in concrete without defects
Can supply smooth power for radial energy transducer needless external power.
Standard USB storage with big capacity.
Interior lithium battery supply power for apparatus work more than 6 hours.
Portable, small, light apparatus (1.75Kg).
Extending function for testing thickness of concrete by impacting echo method.
Professional and powerful analysis software on windows system. It can export the data to Excel or word for advanced analysis
