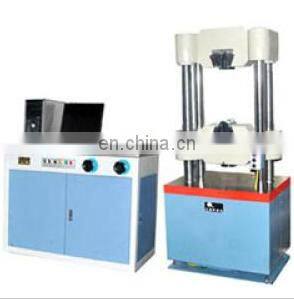

Concrete compressive strength testing machine/Equipment/Instrument/Tester price
Model:TBTUTM-100A
Description
The testing machine is mainly designed for the tension test, compression test and bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.
Technical data
|
max capacity |
100KN |
|
max. tension space |
500mm |
|
max. compress space |
450mm |
|
round specimen clamp diameter |
D6~22mm |
|
flat specimen thickness |
0~15mm |
|
bending max. distance |
100~300mm |
|
Piston stroke |
150mm |
|
weight |
around 900KG |
|
Power supply |
220VAC |
Accessories
1. O-ring
2. Oil flow control valve
3. Oil return valve
4. Oil pump
5. Motor
Workshop
Packaging & Shipping
Package
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Delivery time
---within 2weeks after payment, we will act fast and before shipment, we will provide product photo, packing photo to customer’s checking
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
---Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
---Normally, it will take around 3--5days from China to destination country via air.
Payment
---T/T, Western Union, Paypal, or negotiable, ect.
Our Services
How to oder products?
---Send inquiry to us or contact with us via skype or trademanager
---Confirming the model, specification, price, qty, delivery time and payment method
---Sending invoice to customer
---Customer makes payment and send us receipt
---Arranging production
---Sending products picture to customer after the production is ready
---Shipping products to customer
Warranty
---1 year quality assurance
