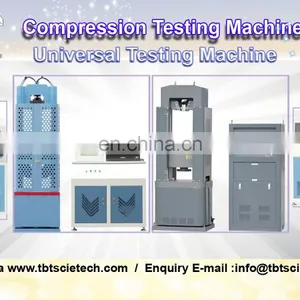

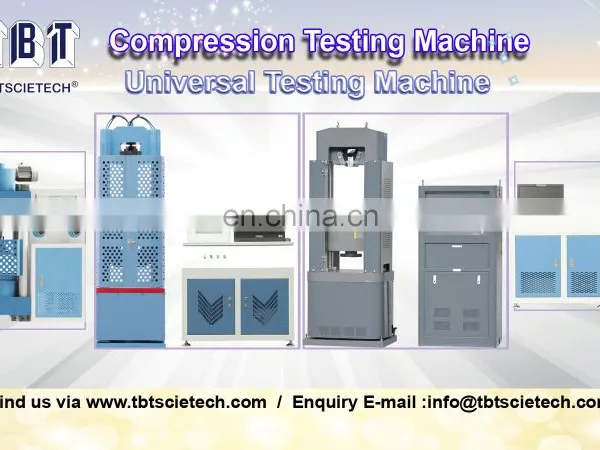

Concrete Block Strength Compression Testing Machine
Model:TBTCTM-2000N
The Digital Diaplay Compression Testing Machine is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete;
The Digital Diaplay Compression Testing Machine is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed
Maximum Capacity: | 2000 kN |
Measuring Range | 0-2000 kN |
Relative Error | ±1% |
Platen dimension | 220mm×280 mm |
Max. Vertical clearance between platen | 330 mm |
Maximum travel of piston | 40 mm |
Diameter of piston | 250 mm |
Rated pressure of oil pump | 40 Mpa |
Power supply | 220VAC 750W |
1. Digital Display Controller
2. Oil Flow Control Valve
3. Oil Return Valve
4. Oil Pump
5. Motor
6. O-ring
Package
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Delivery time
within 2weeks after payment, we will act fast and before shipment, we will provide product photo, packing photo to customer’s checking
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
-Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
---Normally, it will take around 3--5days from China to destination country via air.
Payment
---T/T, Western Union, Paypal, or negotiable, ect.
