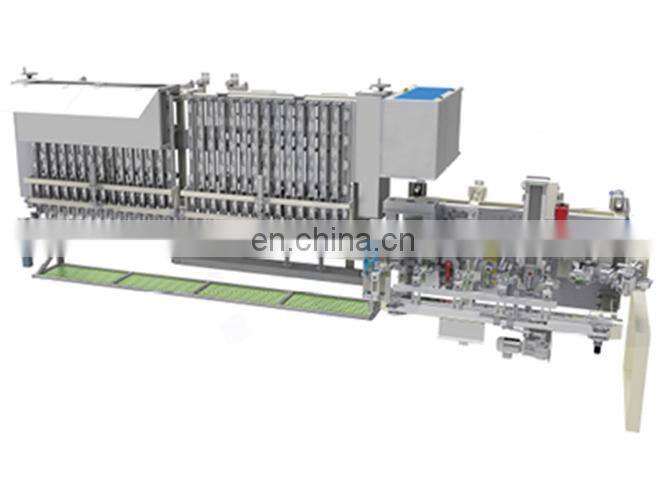

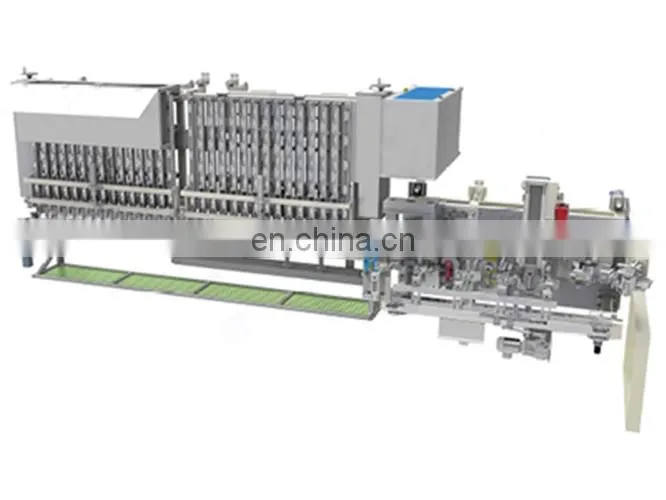

Help CenterAutomatic Gauging Machines for Connecting Rod, Connecting Rod Measuring Machine
Related Products
-
Automatic Gauging Machines for Crankshaft, Crankshaft Measuring MachineUS$ 20,000 - 20,000MOQ: 1 Set -
Automatic Gauging Machines for Cylinder Block, Cylinder Block Measuring MachineUS$ 20,000 - 20,000MOQ: 1 Set
-
Automatic Gauging Machines for Cylinder Head, Cylinder Head Measuring MachineUS$ 20,000 - 20,000MOQ: 1 Set
-
Air Micrometer Measuring SystemUS$ 645 - 645MOQ: 1 Set
-
Go No Go GaugesUS$ 645 - 645MOQ: 1 Set
Brake Disc Measuring Machine
Brake disc measuring machine realizes the automatic measurements of the following items: brake panel thickness and height, X gradient, Y gradient, X runout (inner), Y runout (inner), Y runout (outer), radial plate thickness difference, axial plate thickness difference (middle) and W runout. It also has the following functions: automatic cleaning of brake disc, SPC analysis of the above measurement data, fast changes between different types, and data memory and saving.
Features
High measurement precision
High measurement accuracy
High measuring efficiency: 18 sec / piece
Greatly reduce labor costs
Specifications
Measurement principle: Comparison measurement. Displacement sensor is used to measure the difference between the measured parts and the calibration parts, and then the relative sizes of the measured parts are calculated. The whole control system adopts Profinet bus communication mode for OPC communication with the host computer. The integration is strong and the communication is safe and reliable.
Measurement range: Manual adjustments for various sizes measurements.
Measurement takt time: ≤18 seconds, under normal condition and operation
Measurement position technology level: sensor resolution: 0.0001mm, measurement accuracy: 0.001mm, GRR: ≤10%.
